MADOCA: PPP Monitor

Current PPP Result

Contents:
-Result Statistics
-Data Availability
-Station Position
-Time Series/Horizontal Plots
Station: AIRA MAYG0 TSK2 MAO00 UCAL0 WTZ27 LMMF7 PERT4 CPNM2 XMIS4

2023-01-14, DOY=014, 2244-6

Result Statistics ↑

Station	Product	Real Time Kinematic PPP Result(m)
		AVE			STD			RMS
		E	N	U	E	N	U	E	N	U	D
AIRA	MGRT1	0.0169	-0.0123	-0.0446	0.0280	0.0217	0.0747	0.0327	0.0249	0.0870	0.0411
AIRA	MGRT2	0.0175	-0.0131	-0.0478	0.0320	0.0267	0.0710	0.0365	0.0297	0.0856	0.0471
MAYG0	MGRT1	0.0165	-0.0170	0.0537	0.0299	0.0160	0.0763	0.0342	0.0234	0.0933	0.0414
MAYG0	MGRT2	0.0223	-0.0162	0.0486	0.0320	0.0158	0.0796	0.0390	0.0226	0.0933	0.0450
TSK2	MGRT1	0.0219	-0.0078	0.0053	0.0243	0.0152	0.0542	0.0327	0.0171	0.0544	0.0369
TSK2	MGRT2	0.0145	-0.0060	0.0061	0.0338	0.0174	0.0542	0.0368	0.0184	0.0545	0.0411
MAO00	MGRT1	-0.0195	0.0023	0.0065	0.0305	0.0214	0.0630	0.0362	0.0215	0.0634	0.0421
MAO00	MGRT2	-0.0156	0.0026	-0.0151	0.0316	0.0228	0.0571	0.0353	0.0229	0.0591	0.0421
UCAL0	MGRT1	0.0048	-0.0237	0.0220	0.0181	0.0221	0.0522	0.0187	0.0324	0.0566	0.0374
UCAL0	MGRT2	0.0048	-0.0198	0.0219	0.0173	0.0202	0.0516	0.0180	0.0283	0.0561	0.0335
WTZ27	MGRT1	-0.0151	-0.0384	0.0342	0.0742	0.0542	0.0804	0.0757	0.0664	0.0873	0.1007
WTZ27	MGRT2	-0.0154	-0.0361	0.0324	0.0733	0.0584	0.0810	0.0749	0.0686	0.0872	0.1016
LMMF7	MGRT1	-0.0256	-0.0051	0.0584	0.0255	0.0202	0.0628	0.0361	0.0208	0.0858	0.0417
LMMF7	MGRT2	-0.0219	-0.0057	0.0578	0.0278	0.0207	0.0575	0.0354	0.0215	0.0815	0.0414
PERT4	MGRT1	-	-	-	-	-	-	-	-	-	-
PERT4	MGRT2	-	-	-	-	-	-	-	-	-	-
CPNM2	MGRT1	-	-	-	-	-	-	-	-	-	-
CPNM2	MGRT2	-	-	-	-	-	-	-	-	-	-
XMIS4	MGRT1	-	-	-	-	-	-	-	-	-	-
XMIS4	MGRT2	-	-	-	-	-	-	-	-	-	-

Data Availability(%) ↑


--------------------------------------------------------------------------------------------------------------------------------------------------------------
                 00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
--------------------------------------------------------------------------------------------------------------------------------------------------------------

AIRA            100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  91.4 100.0 100.0 100.0 100.0 100.0 100.0 100.0     -
CPNM2               -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -
LMMF7           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0     -
MAO00           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  98.3 100.0 100.0 100.0 100.0 100.0 100.0     -
MAYG0           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  99.7 100.0 100.0 100.0 100.0 100.0 100.0 100.0  97.7 100.0  99.4 100.0 100.0 100.0 100.0     -
PERT4               -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -
TSK2            100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0     -
UCAL0           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0     -
WTZ27           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0     -
XMIS4               -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -

PPP Station MAP ↑

Time Series/Horizontal Plots ↑

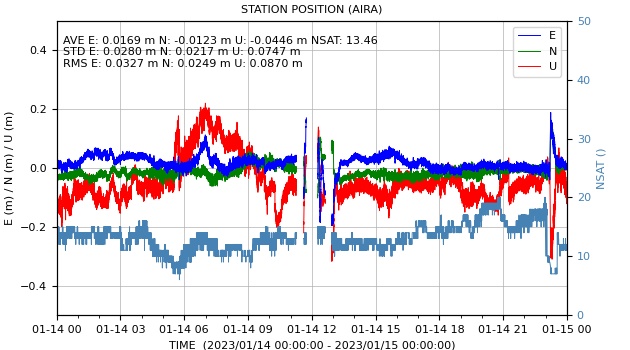

AIRA ↑
(more info)

AIRA ↑

Data Availability(%)
----------------------------------------------------------------------------------------------------------------------------------------------- 00H 01H 02H 03H 04H 05H 06H 07H 08H 09H 10H 11H 12H 13H 14H 15H 16H 17H 18H 19H 20H 21H 22H 23H ----------------------------------------------------------------------------------------------------------------------------------------------- 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 91.4 100.0 100.0 100.0 100.0 100.0 100.0 100.0 -

(close)

MADOCA_SSR1 Real Time PPP Error

MADOCA_SSR2 Real Time PPP Error

MAYG0 ↑
(more info)

MAYG0 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  99.7 100.0 100.0 100.0 100.0 100.0 100.0 100.0  97.7 100.0  99.4 100.0 100.0 100.0 100.0     -

(close)


MADOCA_SSR1 Real Time PPP Error

MADOCA_SSR2 Real Time PPP Error

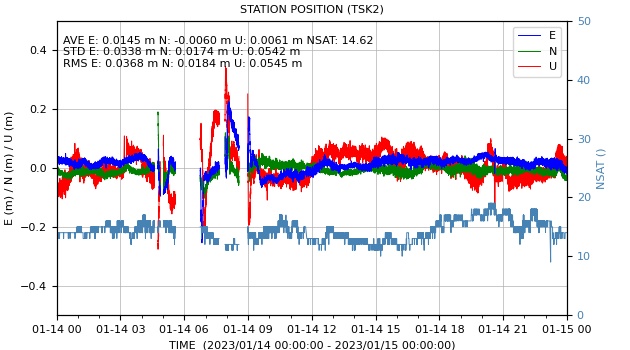

TSK2 ↑
(more info)

TSK2 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0     -

(close)


MADOCA_SSR1 Real Time PPP Error

MADOCA_SSR2 Real Time PPP Error

MAO00 ↑
(more info)

MAO00 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  98.3 100.0 100.0 100.0 100.0 100.0 100.0     -

(close)


MADOCA_SSR1 Real Time PPP Error

MADOCA_SSR2 Real Time PPP Error

UCAL0 ↑
(more info)

UCAL0 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0     -

(close)


MADOCA_SSR1 Real Time PPP Error

MADOCA_SSR2 Real Time PPP Error

WTZ27 ↑
(more info)

WTZ27 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0     -

(close)


MADOCA_SSR1 Real Time PPP Error

MADOCA_SSR2 Real Time PPP Error

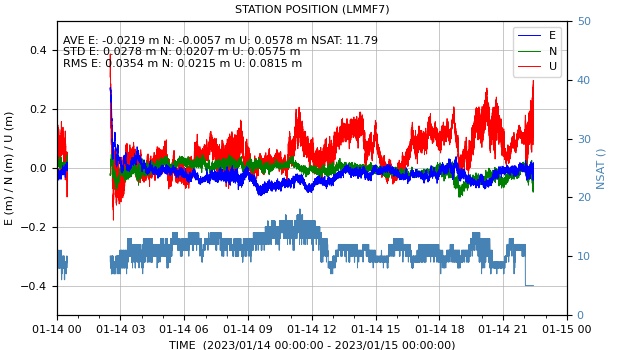

LMMF7 ↑
(more info)

LMMF7 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0     -

(close)


MADOCA_SSR1 Real Time PPP Error

MADOCA_SSR2 Real Time PPP Error

PERT4 ↑
(more info)

PERT4 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -

(close)

CPNM2 ↑
(more info)

CPNM2 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -

(close)

XMIS4 ↑
(more info)

XMIS4 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -

(close)

update: 2023-01-15 00:17:34 UTC

The products are for test and evaluation purpose only.
