MADOCA: PPP Monitor

Current PPP Result

Contents:
-Result Statistics
-Data Availability
-Station Position
-Time Series/Horizontal Plots
Station: AIRA MAYG0 TSK2 MAO00 UCAL0 WTZ27 LMMF7 PERT4 CPNM2 XMIS4

2023-01-18, DOY=018, 2245-3

Result Statistics ↑

Station	Product	Real Time Kinematic PPP Result(m)
		AVE			STD			RMS
		E	N	U	E	N	U	E	N	U	D
AIRA	MGRT1	0.0078	0.0030	-0.0480	0.0177	0.0101	0.0467	0.0193	0.0105	0.0669	0.0220
AIRA	MGRT2	0.0063	0.0054	-0.0533	0.0198	0.0120	0.0614	0.0208	0.0131	0.0813	0.0246
MAYG0	MGRT1	0.0024	-0.0081	0.0755	0.0316	0.0177	0.1191	0.0317	0.0195	0.1410	0.0372
MAYG0	MGRT2	-0.0009	-0.0133	0.0739	0.0326	0.0180	0.1142	0.0326	0.0224	0.1360	0.0395
TSK2	MGRT1	0.0139	0.0026	0.0047	0.0194	0.0101	0.0353	0.0238	0.0104	0.0356	0.0260
TSK2	MGRT2	0.0207	0.0026	0.0022	0.0244	0.0112	0.0409	0.0320	0.0115	0.0410	0.0340
MAO00	MGRT1	-	-	-	-	-	-	-	-	-	-
MAO00	MGRT2	-	-	-	-	-	-	-	-	-	-
UCAL0	MGRT1	0.0293	0.0021	0.0307	0.0299	0.0124	0.0493	0.0419	0.0125	0.0581	0.0437
UCAL0	MGRT2	0.0339	0.0045	0.0240	0.0316	0.0118	0.0510	0.0463	0.0126	0.0563	0.0480
WTZ27	MGRT1	-0.0837	-0.0513	0.0546	0.0857	0.0440	0.0526	0.1198	0.0676	0.0758	0.1376
WTZ27	MGRT2	-0.0732	-0.0551	0.0596	0.0746	0.0431	0.0510	0.1045	0.0699	0.0785	0.1258
LMMF7	MGRT1	-0.0162	0.0147	-0.0007	0.0415	0.0279	0.0923	0.0446	0.0315	0.0923	0.0546
LMMF7	MGRT2	-0.0066	0.0153	0.0237	0.0463	0.0256	0.0959	0.0467	0.0298	0.0987	0.0554
PERT4	MGRT1	-	-	-	-	-	-	-	-	-	-
PERT4	MGRT2	-	-	-	-	-	-	-	-	-	-
CPNM2	MGRT1	-	-	-	-	-	-	-	-	-	-
CPNM2	MGRT2	-	-	-	-	-	-	-	-	-	-
XMIS4	MGRT1	-	-	-	-	-	-	-	-	-	-
XMIS4	MGRT2	-	-	-	-	-	-	-	-	-	-

Data Availability(%) ↑


--------------------------------------------------------------------------------------------------------------------------------------------------------------
                 00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
--------------------------------------------------------------------------------------------------------------------------------------------------------------

AIRA            100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0     -
CPNM2               -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -
LMMF7           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0     -
MAO00               -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -  11.9 100.0 100.0 100.0     -
MAYG0           100.0 100.0  98.4 100.0 100.0 100.0  99.9  97.1 100.0  94.4  99.9  97.9 100.0  97.3 100.0  98.4 100.0 100.0 100.0 100.0 100.0 100.0 100.0     -
PERT4               -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -
TSK2            100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  98.3 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0     -
UCAL0           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0     -
WTZ27           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0     -
XMIS4               -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -

PPP Station MAP ↑

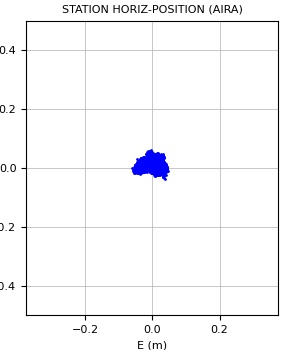

Time Series/Horizontal Plots ↑

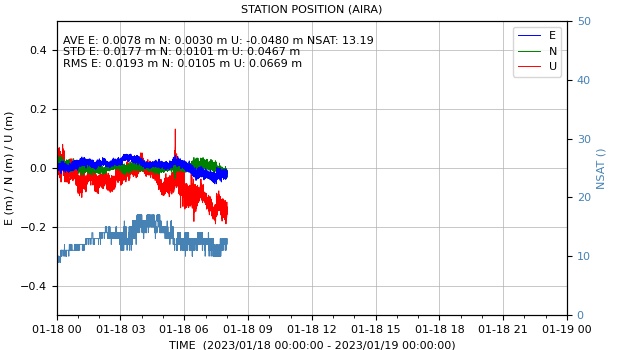

AIRA ↑
(more info)

AIRA ↑

Data Availability(%)
----------------------------------------------------------------------------------------------------------------------------------------------- 00H 01H 02H 03H 04H 05H 06H 07H 08H 09H 10H 11H 12H 13H 14H 15H 16H 17H 18H 19H 20H 21H 22H 23H ----------------------------------------------------------------------------------------------------------------------------------------------- 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 -

(close)

MADOCA_SSR1 Real Time PPP Error

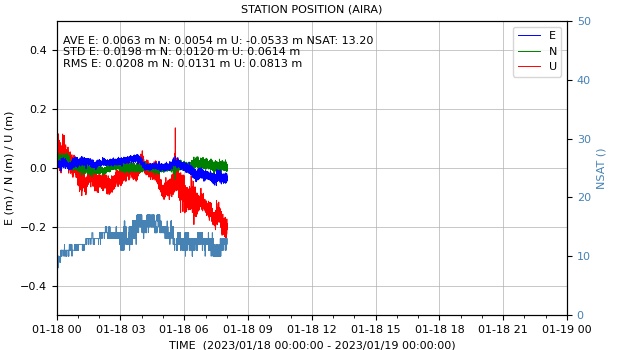

MADOCA_SSR2 Real Time PPP Error

MAYG0 ↑
(more info)

MAYG0 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0  98.4 100.0 100.0 100.0  99.9  97.1 100.0  94.4  99.9  97.9 100.0  97.3 100.0  98.4 100.0 100.0 100.0 100.0 100.0 100.0 100.0     -

(close)


MADOCA_SSR1 Real Time PPP Error

MADOCA_SSR2 Real Time PPP Error

TSK2 ↑
(more info)

TSK2 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  98.3 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0     -

(close)


MADOCA_SSR1 Real Time PPP Error

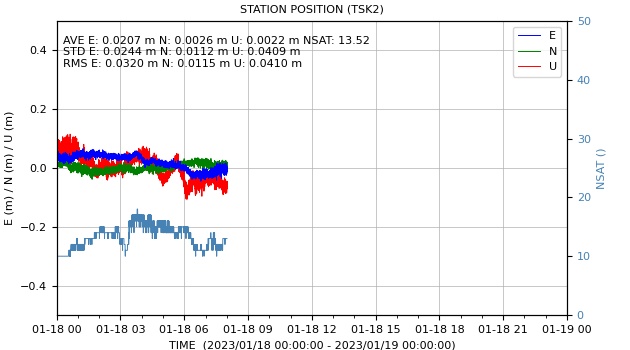

MADOCA_SSR2 Real Time PPP Error

MAO00 ↑
(more info)

MAO00 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -  11.9 100.0 100.0 100.0     -

(close)

UCAL0 ↑
(more info)

UCAL0 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0     -

(close)


MADOCA_SSR1 Real Time PPP Error

MADOCA_SSR2 Real Time PPP Error

WTZ27 ↑
(more info)

WTZ27 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0     -

(close)


MADOCA_SSR1 Real Time PPP Error

MADOCA_SSR2 Real Time PPP Error

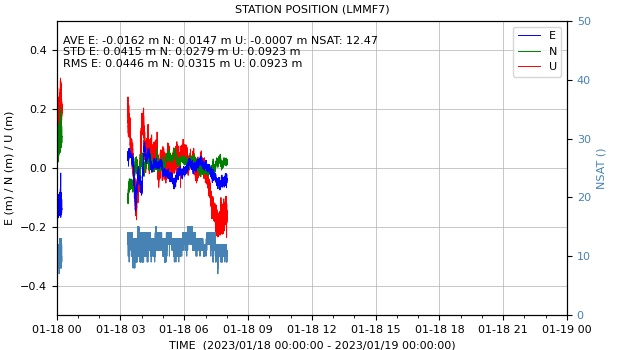

LMMF7 ↑
(more info)

LMMF7 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0     -

(close)


MADOCA_SSR1 Real Time PPP Error

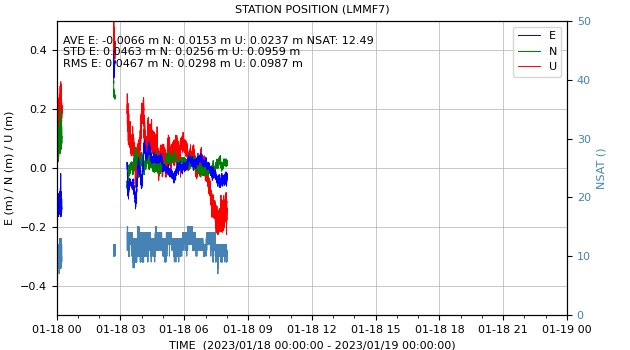

MADOCA_SSR2 Real Time PPP Error

PERT4 ↑
(more info)

PERT4 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -

(close)

CPNM2 ↑
(more info)

CPNM2 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -

(close)

XMIS4 ↑
(more info)

XMIS4 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -

(close)

update: 2023-01-19 00:20:10 UTC

The products are for test and evaluation purpose only.
