Contents:
-Result Statistics
-Residuals(MGRT1,MGRT2
MGU,MGR,MGF
| MGRT Station: | CPNM2 TSK2 PERT0 | |
| JXU Station: | CPNM2 TSK2 PERT0 | |
| JXR Station: | CPNM2 TSK2 PERT0 | |
| JXF Station: | CPNM2 TSK2 PERT0 |
2023-04-19, DOY=3, 2258-109
Result Statistics ↑
MGRT1/MGRT2
| Station | Product | Real Time PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | MGRT1 | - | - | - | - | - | - | - | - | - |
| CPNM2 | MGRT2 | - | - | - | - | - | - | - | - | - |
| TSK2 | MGRT1 | -0.0000 | 0.0074 | 0.0075 | 0.0000 | 0.0127 | 0.0128 | - | - | - |
| TSK2 | MGRT2 | -0.0002 | 0.0080 | 0.0080 | 0.0001 | 0.0099 | 0.0100 | - | - | - |
| PERT0 | MGRT1 | 0.0005 | 0.0113 | 0.0114 | -0.0002 | 0.0173 | 0.0174 | - | - | - |
| PERT0 | MGRT2 | 0.0006 | 0.0106 | 0.0106 | -0.0002 | 0.0131 | 0.0131 | - | - | - |
JXU
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxu22583_18 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22583_12 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22583_06 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22583_00 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxu22583_18 | 0.0000 | 0.0055 | 0.0055 | 0.0000 | 0.0057 | 0.0057 | - | - | - |
| TSK2 | jxu22583_12 | -0.0001 | 0.0058 | 0.0058 | 0.0001 | 0.0058 | 0.0058 | - | - | - |
| TSK2 | jxu22583_06 | -0.0001 | 0.0057 | 0.0057 | 0.0000 | 0.0058 | 0.0058 | - | - | - |
| TSK2 | jxu22583_00 | -0.0001 | 0.0057 | 0.0058 | 0.0001 | 0.0059 | 0.0060 | - | - | - |
| PERT0 | jxu22583_18 | 0.0004 | 0.0087 | 0.0087 | -0.0002 | 0.0074 | 0.0074 | - | - | - |
| PERT0 | jxu22583_12 | 0.0004 | 0.0088 | 0.0088 | -0.0002 | 0.0073 | 0.0073 | - | - | - |
| PERT0 | jxu22583_06 | 0.0004 | 0.0097 | 0.0097 | -0.0002 | 0.0074 | 0.0074 | - | - | - |
| PERT0 | jxu22583_00 | 0.0003 | 0.0094 | 0.0094 | -0.0002 | 0.0073 | 0.0074 | - | - | - |
JXR
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxr22583 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxr22583 | - | - | - | - | - | - | - | - | - |
| PERT0 | jxr22583 | - | - | - | - | - | - | - | - | - |
JXF
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxf22583 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxf22583 | - | - | - | - | - | - | - | - | - |
| PERT0 | jxf22583 | - | - | - | - | - | - | - | - | - |

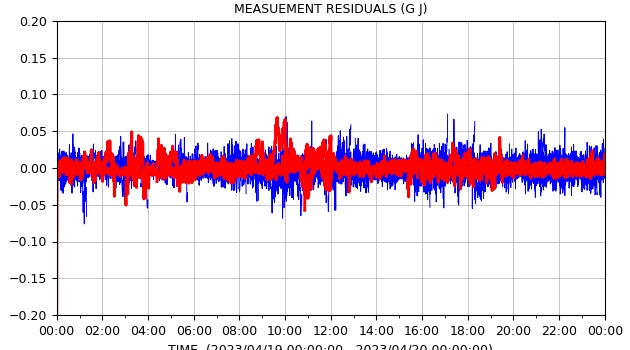

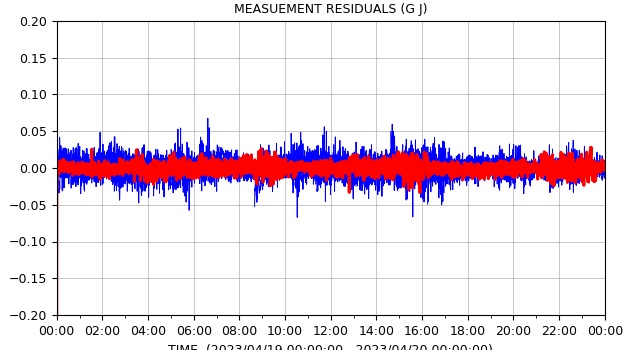

MGRT1/MGRT2 (2023-04-19, DOY=3, 2258-109)
| MADOCA_SSR1 Real Time Residuals | |
| MADOCA_SSR2 Real Time Residuals | |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2023/04/19 00:00:00-2023/04/20 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2023/04/19 00:00:00-2023/04/20 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
JXU (2023-04-19, DOY=3, 2258-109)
| TIME(2023/04/19 00:00:00-2023/04/20 00:00:00) | |
| |
| TIME(2023/04/19 06:00:00-2023/04/20 06:00:00) | |
| |
| TIME(2023/04/19 12:00:00-2023/04/20 12:00:00) | |
| |
| TIME(2023/04/19 18:00:00-2023/04/20 18:00:00) | |
| |
| TIME(2023/04/19 00:00:00-2023/04/20 00:00:00) | |
| |
| TIME(2023/04/19 06:00:00-2023/04/20 06:00:00) | |
| |
| TIME(2023/04/19 12:00:00-2023/04/20 12:00:00) | |
| |
| TIME(2023/04/19 18:00:00-2023/04/20 18:00:00) | |
| |
JXR (2023-04-19, DOY=3, 2258-109)
JXF (2023-04-19, DOY=3, 2258-109)
| update: 2023-04-20 02:23:12 UTC |
| The products are for test and evaluation purpose only. |
