MADOCA: PPP-AR Monitor

Current PPP-AR Result

Contents:
-Result Statistics
-Data Availability
-Station Position
-Time Series/Horizontal Plots
Station: AIRA CPNM2 MAYG0 MAO00 LMMF7 TSK2 UCAL0 PERT0 WTZ27 XMIS0

2023-04-22, DOY=112, 2258-6

Result Statistics ↑

top

Station	Product	Type	Real Time Kinematic PPP-AR Result(m)
			AVE			STD			RMS
			E	N	U	E	N	U	E	N	U	D
AIRA	MGRT1	PPP-AR	0.0622	-0.0508	0.0137	0.2596	0.1606	0.4445	0.2670	0.1685	0.4447	0.3157
	MGRT1	PPP	-0.0127	-0.0195	0.0103	0.0164	0.0163	0.0540	0.0208	0.0254	0.0550	0.0328
	MGRT2	PPP-AR	-0.0062	-0.0287	0.1033	0.2039	0.1303	0.3503	0.2040	0.1335	0.3652	0.2438
	MGRT2	PPP	-0.0177	-0.0147	0.0117	0.0178	0.0156	0.0529	0.0251	0.0215	0.0541	0.0331
CPNM2	MGRT1	PPP-AR	-	-	-	-	-	-	-	-	-	-
	MGRT1	PPP	-	-	-	-	-	-	-	-	-	-
	MGRT2	PPP-AR	-	-	-	-	-	-	-	-	-	-
	MGRT2	PPP	-	-	-	-	-	-	-	-	-	-
MAYG0	MGRT1	PPP-AR	0.0315	0.0472	-0.0327	0.1997	0.1231	0.3342	0.2021	0.1318	0.3358	0.2413
	MGRT1	PPP	-0.0172	-0.0070	-0.0002	0.0476	0.0272	0.0702	0.0507	0.0281	0.0702	0.0579
	MGRT2	PPP-AR	0.0488	0.0406	-0.0983	0.1984	0.1092	0.3157	0.2043	0.1165	0.3306	0.2352
	MGRT2	PPP	-0.0247	-0.0040	-0.0008	0.0520	0.0258	0.0663	0.0575	0.0261	0.0663	0.0632
MAO00	MGRT1	PPP-AR	-0.1140	0.0607	0.0989	0.1844	0.1299	0.3870	0.2168	0.1434	0.3994	0.2599
	MGRT1	PPP	-0.0463	0.0145	0.0712	0.0574	0.0254	0.0992	0.0738	0.0292	0.1221	0.0794
	MGRT2	PPP-AR	-0.0558	0.0635	0.0269	0.1740	0.1369	0.3925	0.1827	0.1509	0.3934	0.2370
	MGRT2	PPP	-0.0614	0.0171	0.0410	0.0946	0.0370	0.0909	0.1127	0.0408	0.0997	0.1199
LMMF7	MGRT1	PPP-AR	-0.0152	-0.0262	-0.1257	0.2667	0.2143	0.3351	0.2671	0.2159	0.3579	0.3434
	MGRT1	PPP	0.0312	-0.0066	0.0703	0.0556	0.0260	0.0866	0.0638	0.0269	0.1115	0.0692
	MGRT2	PPP-AR	0.0442	-0.0269	-0.1460	0.2866	0.1853	0.3472	0.2900	0.1872	0.3766	0.3452
	MGRT2	PPP	0.0293	-0.0032	0.0576	0.0537	0.0198	0.0809	0.0611	0.0200	0.0993	0.0643
TSK2	MGRT1	PPP-AR	-0.0262	-0.0666	0.2045	0.1790	0.1463	0.3066	0.1809	0.1607	0.3686	0.2420
	MGRT1	PPP	-0.0046	-0.0070	0.0135	0.0149	0.0203	0.0434	0.0156	0.0215	0.0455	0.0265
	MGRT2	PPP-AR	0.0431	-0.0817	0.1394	0.1924	0.1373	0.3361	0.1972	0.1598	0.3638	0.2538
	MGRT2	PPP	-0.0083	-0.0031	0.0164	0.0171	0.0201	0.0396	0.0189	0.0203	0.0429	0.0278
UCAL0	MGRT1	PPP-AR	0.0174	0.0398	-0.2658	0.3050	0.2080	0.3819	0.3055	0.2118	0.4653	0.3717
	MGRT1	PPP	0.0024	-0.0166	0.0006	0.0274	0.0216	0.0379	0.0275	0.0273	0.0379	0.0387
	MGRT2	PPP-AR	0.0185	0.0236	0.0053	0.3313	0.1432	0.2914	0.3318	0.1451	0.2914	0.3622
	MGRT2	PPP	-0.0019	-0.0173	0.0099	0.0241	0.0189	0.0359	0.0242	0.0256	0.0372	0.0353
PERT0	MGRT1	PPP-AR	0.1888	0.0752	-0.1154	0.2904	0.1629	0.3499	0.3464	0.1794	0.3684	0.3901
	MGRT1	PPP	0.0287	0.0443	0.1009	0.0270	0.0314	0.0953	0.0394	0.0543	0.1388	0.0671
	MGRT2	PPP-AR	0.1719	0.0845	-0.1906	0.3027	0.1430	0.3604	0.3481	0.1661	0.4077	0.3857
	MGRT2	PPP	0.0283	0.0458	0.0822	0.0297	0.0248	0.0683	0.0411	0.0521	0.1069	0.0663
WTZ27	MGRT1	PPP-AR	0.0030	0.3019	0.1764	0.2621	0.3070	0.5382	0.2621	0.4306	0.5664	0.5041
	MGRT1	PPP	-0.0147	-0.0060	0.0333	0.0642	0.0349	0.0794	0.0659	0.0354	0.0861	0.0748
	MGRT2	PPP-AR	0.0225	-0.0959	0.2755	0.2494	0.2133	0.4649	0.2504	0.2338	0.5404	0.3426
	MGRT2	PPP	-0.0141	0.0054	0.0022	0.0741	0.0519	0.0739	0.0754	0.0522	0.0739	0.0917
XMIS0	MGRT1	PPP-AR	-0.5376	-0.1991	-0.2035	0.5560	0.4698	0.5919	0.7734	0.5102	0.6259	0.9265
	MGRT1	PPP	-0.0109	0.0234	0.2286	0.1446	0.0531	0.2983	0.1450	0.0580	0.3758	0.1562
	MGRT2	PPP-AR	-0.5473	-0.1267	-0.1146	0.5007	0.3586	0.4876	0.7418	0.3803	0.5009	0.8336
	MGRT2	PPP	0.0056	0.0232	0.2391	0.1336	0.0483	0.2835	0.1337	0.0536	0.3709	0.1441

Data Availability(%) ↑


--------------------------------------------------------------------------------------------------------------------------------------------------------------
                 00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
--------------------------------------------------------------------------------------------------------------------------------------------------------------

AIRA            100.0  98.3 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  98.3 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0
CPNM2               -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -
LMMF7           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0
MAO00           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0
MAYG0           100.0 100.0 100.0  98.4 100.0 100.0 100.0 100.0 100.0 100.0  96.5 100.0 100.0 100.0 100.0 100.0 100.0 100.0  99.4 100.0 100.0  99.4 100.0 100.0
PERT0           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0
TSK2            100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  98.3 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0
UCAL0           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0
WTZ27           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0
XMIS0            95.0  95.0  87.3  89.9 100.0 100.0 100.0 100.0  80.0  86.7 100.0 100.0 100.0 100.0 100.0  96.7 100.0 100.0 100.0 100.0 100.0  96.6  99.9 100.1

PPP-AR Station MAP ↑

Time Series/Horizontal Plots ↑

AIRA ↑
(more info)

AIRA ↑

Data Availability(%)
----------------------------------------------------------------------------------------------------------------------------------------------- 00H 01H 02H 03H 04H 05H 06H 07H 08H 09H 10H 11H 12H 13H 14H 15H 16H 17H 18H 19H 20H 21H 22H 23H ----------------------------------------------------------------------------------------------------------------------------------------------- 100.0 98.3 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 98.3 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

prev top next

MADOCA_SSR1 Real Time PPP Error
prev top next

MADOCA_SSR2 Real Time PPP-AR Error
prev top next

MADOCA_SSR2 Real Time PPP Error
prev top next

CPNM2 ↑
(more info)

CPNM2 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

MAYG0 ↑
(more info)

MAYG0 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0  98.4 100.0 100.0 100.0 100.0 100.0 100.0  96.5 100.0 100.0 100.0 100.0 100.0 100.0 100.0  99.4 100.0 100.0  99.4 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

MAO00 ↑
(more info)

MAO00 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

LMMF7 ↑
(more info)

LMMF7 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

TSK2 ↑
(more info)

TSK2 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  98.3 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

UCAL0 ↑
(more info)

UCAL0 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

PERT0 ↑
(more info)

PERT0 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

WTZ27 ↑
(more info)

WTZ27 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

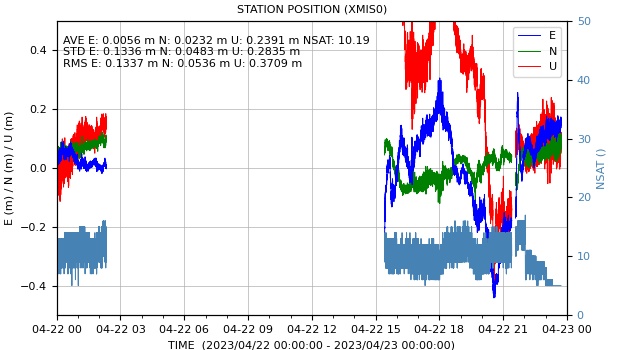

XMIS0 ↑
(more info)

XMIS0 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
  95.0  95.0  87.3  89.9 100.0 100.0 100.0 100.0  80.0  86.7 100.0 100.0 100.0 100.0 100.0  96.7 100.0 100.0 100.0 100.0 100.0  96.6  99.9 100.1

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top
