Contents:
-Result Statistics
-Residuals(MGRT1,MGRT2
MGU,MGR,MGF
| MGRT Station: | CPNM2 TSK2 PERT0 | |
| JXU Station: | CPNM2 TSK2 PERT0 | |
| JXR Station: | CPNM2 TSK2 PERT0 | |
| JXF Station: | CPNM2 TSK2 PERT0 |
2023-06-24, DOY=6, 2267-175
Result Statistics ↑
MGRT1/MGRT2
| Station | Product | Real Time PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | MGRT1 | - | - | - | - | - | - | - | - | - |
| CPNM2 | MGRT2 | - | - | - | - | - | - | - | - | - |
| TSK2 | MGRT1 | -0.0001 | 0.0083 | 0.0083 | 0.0000 | 0.0102 | 0.0102 | - | - | - |
| TSK2 | MGRT2 | -0.0001 | 0.0067 | 0.0067 | 0.0000 | 0.0102 | 0.0103 | - | - | - |
| PERT0 | MGRT1 | 0.0005 | 0.0167 | 0.0167 | -0.0002 | 0.0129 | 0.0129 | - | - | - |
| PERT0 | MGRT2 | 0.0005 | 0.0139 | 0.0139 | -0.0002 | 0.0133 | 0.0133 | - | - | - |
JXU
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxu22676_18 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22676_12 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22676_06 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22676_00 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxu22676_18 | -0.0000 | 0.0057 | 0.0057 | 0.0000 | 0.0060 | 0.0060 | - | - | - |
| TSK2 | jxu22676_12 | -0.0001 | 0.0058 | 0.0058 | 0.0000 | 0.0060 | 0.0060 | - | - | - |
| TSK2 | jxu22676_06 | -0.0001 | 0.0055 | 0.0055 | 0.0001 | 0.0057 | 0.0057 | - | - | - |
| TSK2 | jxu22676_00 | -0.0002 | 0.0054 | 0.0054 | 0.0001 | 0.0058 | 0.0058 | - | - | - |
| PERT0 | jxu22676_18 | 0.0004 | 0.0120 | 0.0120 | -0.0002 | 0.0095 | 0.0095 | - | - | - |
| PERT0 | jxu22676_12 | 0.0004 | 0.0103 | 0.0103 | -0.0002 | 0.0082 | 0.0083 | - | - | - |
| PERT0 | jxu22676_06 | 0.0007 | 0.0109 | 0.0109 | -0.0002 | 0.0080 | 0.0080 | - | - | - |
| PERT0 | jxu22676_00 | 0.0008 | 0.0113 | 0.0113 | -0.0003 | 0.0081 | 0.0081 | - | - | - |
JXR
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxr22676 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxr22676 | - | - | - | - | - | - | - | - | - |
| PERT0 | jxr22676 | - | - | - | - | - | - | - | - | - |
JXF
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxf22676 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxf22676 | - | - | - | - | - | - | - | - | - |
| PERT0 | jxf22676 | - | - | - | - | - | - | - | - | - |

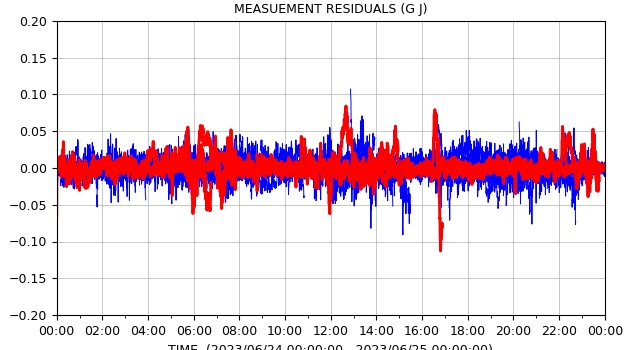

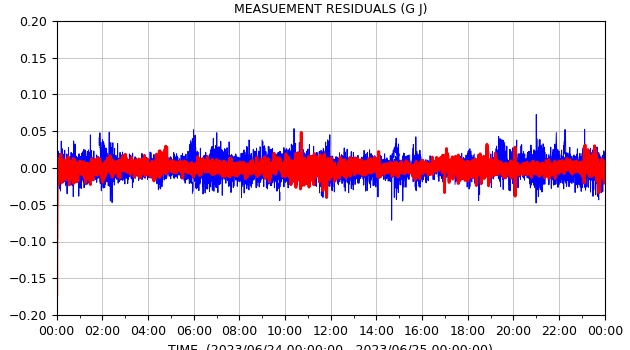

MGRT1/MGRT2 (2023-06-24, DOY=6, 2267-175)
| MADOCA_SSR1 Real Time Residuals | |
| MADOCA_SSR2 Real Time Residuals | |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2023/06/24 00:00:00-2023/06/25 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2023/06/24 00:00:00-2023/06/25 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
JXU (2023-06-24, DOY=6, 2267-175)
| TIME(2023/06/24 00:00:00-2023/06/25 00:00:00) | |
| |
| TIME(2023/06/24 06:00:00-2023/06/25 06:00:00) | |
| |
| TIME(2023/06/24 12:00:00-2023/06/25 12:00:00) | |
| |
| TIME(2023/06/24 18:00:00-2023/06/25 18:00:00) | |
| |
| TIME(2023/06/24 00:00:00-2023/06/25 00:00:00) | |
| |
| TIME(2023/06/24 06:00:00-2023/06/25 06:00:00) | |
| |
| TIME(2023/06/24 12:00:00-2023/06/25 12:00:00) | |
| |
| TIME(2023/06/24 18:00:00-2023/06/25 18:00:00) | |
| |
JXR (2023-06-24, DOY=6, 2267-175)
JXF (2023-06-24, DOY=6, 2267-175)
| update: 2023-06-25 02:21:37 UTC |
| The products are for test and evaluation purpose only. |
