Contents:
-Result Statistics
-Residuals(MGRT1,MGRT2
MGU,MGR,MGF
| MGRT Station: | CPNM2 TSK2 PERT0 | |
| JXU Station: | CPNM2 TSK2 PERT0 | |
| JXR Station: | CPNM2 TSK2 PERT0 | |
| JXF Station: | CPNM2 TSK2 PERT0 |
2023-07-21, DOY=5, 2271-202
Result Statistics ↑
MGRT1/MGRT2
| Station | Product | Real Time PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | MGRT1 | - | - | - | - | - | - | - | - | - |
| CPNM2 | MGRT2 | - | - | - | - | - | - | - | - | - |
| TSK2 | MGRT1 | 0.0007 | 0.0090 | 0.0091 | -0.0002 | 0.0114 | 0.0114 | - | - | - |
| TSK2 | MGRT2 | 0.0007 | 0.0107 | 0.0108 | -0.0002 | 0.0104 | 0.0104 | - | - | - |
| PERT0 | MGRT1 | 0.0009 | 0.0142 | 0.0142 | -0.0003 | 0.0128 | 0.0129 | - | - | - |
| PERT0 | MGRT2 | 0.0010 | 0.0144 | 0.0145 | -0.0004 | 0.0120 | 0.0120 | - | - | - |
JXU
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxu22715_18 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22715_12 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22715_06 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22715_00 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxu22715_18 | -0.0001 | 0.0057 | 0.0057 | 0.0001 | 0.0066 | 0.0067 | - | - | - |
| TSK2 | jxu22715_12 | -0.0001 | 0.0059 | 0.0059 | 0.0001 | 0.0067 | 0.0067 | - | - | - |
| TSK2 | jxu22715_06 | -0.0002 | 0.0061 | 0.0061 | 0.0001 | 0.0072 | 0.0073 | - | - | - |
| TSK2 | jxu22715_00 | 0.0001 | 0.0075 | 0.0075 | -0.0000 | 0.0073 | 0.0074 | - | - | - |
| PERT0 | jxu22715_18 | 0.0003 | 0.0123 | 0.0123 | -0.0002 | 0.0089 | 0.0090 | - | - | - |
| PERT0 | jxu22715_12 | 0.0003 | 0.0121 | 0.0121 | -0.0002 | 0.0092 | 0.0092 | - | - | - |
| PERT0 | jxu22715_06 | 0.0005 | 0.0114 | 0.0114 | -0.0003 | 0.0093 | 0.0093 | - | - | - |
| PERT0 | jxu22715_00 | 0.0005 | 0.0111 | 0.0111 | -0.0003 | 0.0086 | 0.0086 | - | - | - |
JXR
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxr22715 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxr22715 | - | - | - | - | - | - | - | - | - |
| PERT0 | jxr22715 | - | - | - | - | - | - | - | - | - |
JXF
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxf22715 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxf22715 | - | - | - | - | - | - | - | - | - |
| PERT0 | jxf22715 | - | - | - | - | - | - | - | - | - |

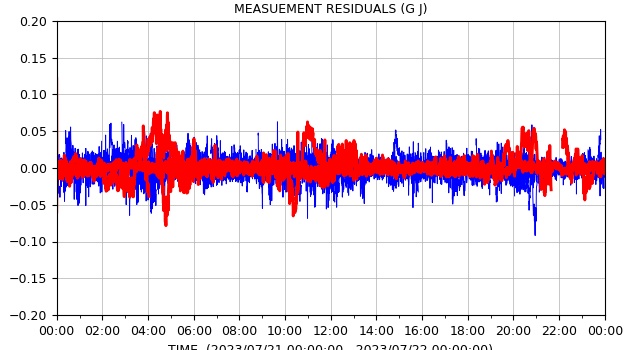

MGRT1/MGRT2 (2023-07-21, DOY=5, 2271-202)
| MADOCA_SSR1 Real Time Residuals | |
| MADOCA_SSR2 Real Time Residuals | |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2023/07/21 00:00:00-2023/07/22 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2023/07/21 00:00:00-2023/07/22 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |

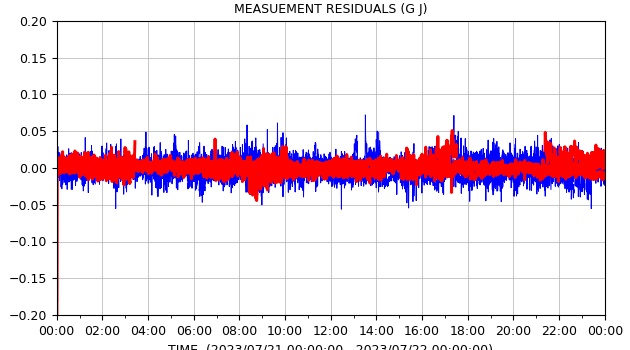

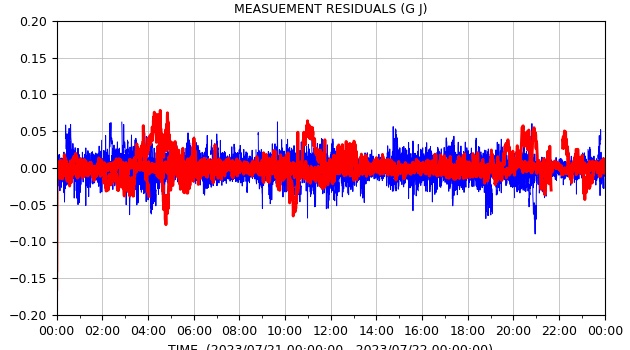

JXU (2023-07-21, DOY=5, 2271-202)
| TIME(2023/07/21 00:00:00-2023/07/22 00:00:00) | |
| |
| TIME(2023/07/21 06:00:00-2023/07/22 06:00:00) | |
| |
| TIME(2023/07/21 12:00:00-2023/07/22 12:00:00) | |
| |
| TIME(2023/07/21 18:00:00-2023/07/22 18:00:00) | |
| |
| TIME(2023/07/21 00:00:00-2023/07/22 00:00:00) | |
| |
| TIME(2023/07/21 06:00:00-2023/07/22 06:00:00) | |
| |
| TIME(2023/07/21 12:00:00-2023/07/22 12:00:00) | |
| |
| TIME(2023/07/21 18:00:00-2023/07/22 18:00:00) | |
| |
JXR (2023-07-21, DOY=5, 2271-202)
JXF (2023-07-21, DOY=5, 2271-202)
| update: 2023-07-22 03:00:27 UTC |
| The products are for test and evaluation purpose only. |
