Contents:
-Result Statistics
-Residuals(MGRT1,MGRT2
MGU,MGR,MGF
| MGRT Station: | CPNM2 TSK2 PERT0 | |
| JXU Station: | CPNM2 TSK2 PERT0 | |
| JXR Station: | CPNM2 TSK2 PERT0 | |
| JXF Station: | CPNM2 TSK2 PERT0 |
2023-08-01, DOY=2, 2273-213
Result Statistics ↑
MGRT1/MGRT2
| Station | Product | Real Time PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | MGRT1 | - | - | - | - | - | - | - | - | - |
| CPNM2 | MGRT2 | - | - | - | - | - | - | - | - | - |
| TSK2 | MGRT1 | -0.0001 | 0.0121 | 0.0121 | 0.0001 | 0.0129 | 0.0130 | - | - | - |
| TSK2 | MGRT2 | -0.0002 | 0.0102 | 0.0102 | 0.0001 | 0.0143 | 0.0143 | - | - | - |
| PERT0 | MGRT1 | 0.0006 | 0.0146 | 0.0147 | -0.0002 | 0.0123 | 0.0124 | - | - | - |
| PERT0 | MGRT2 | 0.0006 | 0.0131 | 0.0131 | -0.0002 | 0.0119 | 0.0119 | - | - | - |
JXU
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxu22732_18 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22732_12 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22732_06 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22732_00 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxu22732_18 | -0.0001 | 0.0095 | 0.0095 | 0.0000 | 0.0119 | 0.0120 | - | - | - |
| TSK2 | jxu22732_12 | -0.0001 | 0.0096 | 0.0097 | 0.0000 | 0.0119 | 0.0119 | - | - | - |
| TSK2 | jxu22732_06 | -0.0001 | 0.0099 | 0.0099 | 0.0000 | 0.0120 | 0.0120 | - | - | - |
| TSK2 | jxu22732_00 | -0.0002 | 0.0078 | 0.0078 | 0.0001 | 0.0096 | 0.0096 | - | - | - |
| PERT0 | jxu22732_18 | 0.0003 | 0.0097 | 0.0097 | -0.0002 | 0.0079 | 0.0080 | - | - | - |
| PERT0 | jxu22732_12 | 0.0003 | 0.0094 | 0.0094 | -0.0001 | 0.0077 | 0.0077 | - | - | - |
| PERT0 | jxu22732_06 | 0.0002 | 0.0096 | 0.0096 | -0.0001 | 0.0074 | 0.0074 | - | - | - |
| PERT0 | jxu22732_00 | 0.0003 | 0.0097 | 0.0097 | -0.0001 | 0.0074 | 0.0074 | - | - | - |
JXR
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxr22732 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxr22732 | - | - | - | - | - | - | - | - | - |
| PERT0 | jxr22732 | - | - | - | - | - | - | - | - | - |
JXF
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxf22732 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxf22732 | - | - | - | - | - | - | - | - | - |
| PERT0 | jxf22732 | - | - | - | - | - | - | - | - | - |

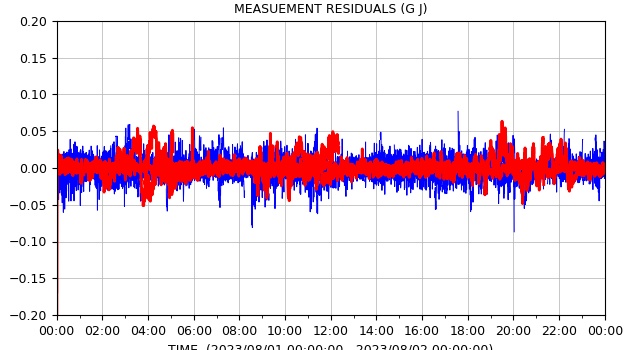

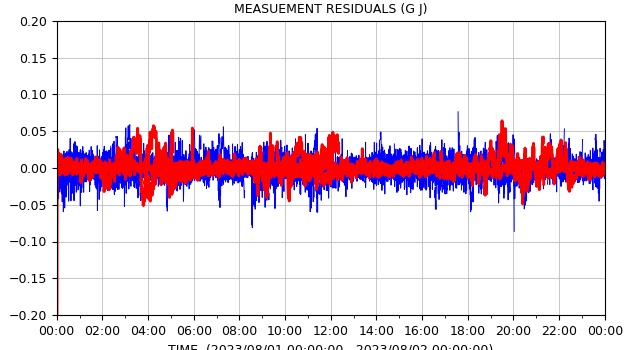

MGRT1/MGRT2 (2023-08-01, DOY=2, 2273-213)
| MADOCA_SSR1 Real Time Residuals | |
| MADOCA_SSR2 Real Time Residuals | |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2023/08/01 00:00:00-2023/08/02 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2023/08/01 00:00:00-2023/08/02 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |

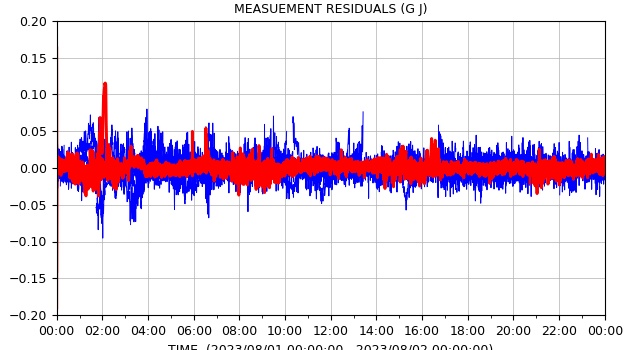

JXU (2023-08-01, DOY=2, 2273-213)
| TIME(2023/08/01 00:00:00-2023/08/02 00:00:00) | |
| |
| TIME(2023/08/01 06:00:00-2023/08/02 06:00:00) | |
| |
| TIME(2023/08/01 12:00:00-2023/08/02 12:00:00) | |
| |
| TIME(2023/08/01 18:00:00-2023/08/02 18:00:00) | |
| |
| TIME(2023/08/01 00:00:00-2023/08/02 00:00:00) | |
| |
| TIME(2023/08/01 06:00:00-2023/08/02 06:00:00) | |
| |
| TIME(2023/08/01 12:00:00-2023/08/02 12:00:00) | |
| |
| TIME(2023/08/01 18:00:00-2023/08/02 18:00:00) | |
| |
JXR (2023-08-01, DOY=2, 2273-213)
JXF (2023-08-01, DOY=2, 2273-213)
| update: 2023-08-02 02:56:07 UTC |
| The products are for test and evaluation purpose only. |
