Contents:
-Result Statistics
-Residuals(MGRT1,MGRT2
MGU,MGR,MGF
| MGRT Station: | CPNM2 TSK2 PERT0 | |
| JXU Station: | CPNM2 TSK2 PERT0 | |
| JXR Station: | CPNM2 TSK2 PERT0 | |
| JXF Station: | CPNM2 TSK2 PERT0 |
2023-08-12, DOY=6, 2274-224
Result Statistics ↑
MGRT1/MGRT2
| Station | Product | Real Time PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | MGRT1 | - | - | - | - | - | - | - | - | - |
| CPNM2 | MGRT2 | - | - | - | - | - | - | - | - | - |
| TSK2 | MGRT1 | -0.0003 | 0.0142 | 0.0142 | 0.0001 | 0.0152 | 0.0153 | - | - | - |
| TSK2 | MGRT2 | -0.0003 | 0.0094 | 0.0094 | 0.0001 | 0.0145 | 0.0146 | - | - | - |
| PERT0 | MGRT1 | 0.0004 | 0.0135 | 0.0135 | -0.0001 | 0.0112 | 0.0112 | - | - | - |
| PERT0 | MGRT2 | 0.0004 | 0.0113 | 0.0113 | -0.0001 | 0.0110 | 0.0110 | - | - | - |
JXU
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxu22746_18 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22746_12 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22746_06 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22746_00 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxu22746_18 | 0.0000 | 0.0061 | 0.0061 | 0.0000 | 0.0068 | 0.0068 | - | - | - |
| TSK2 | jxu22746_12 | 0.0001 | 0.0060 | 0.0060 | -0.0001 | 0.0069 | 0.0070 | - | - | - |
| TSK2 | jxu22746_06 | 0.0002 | 0.0060 | 0.0060 | -0.0001 | 0.0074 | 0.0074 | - | - | - |
| TSK2 | jxu22746_00 | 0.0001 | 0.0061 | 0.0061 | -0.0000 | 0.0076 | 0.0076 | - | - | - |
| PERT0 | jxu22746_18 | 0.0002 | 0.0095 | 0.0095 | -0.0001 | 0.0072 | 0.0072 | - | - | - |
| PERT0 | jxu22746_12 | 0.0002 | 0.0095 | 0.0095 | -0.0001 | 0.0072 | 0.0072 | - | - | - |
| PERT0 | jxu22746_06 | 0.0001 | 0.0096 | 0.0096 | -0.0001 | 0.0073 | 0.0073 | - | - | - |
| PERT0 | jxu22746_00 | 0.0003 | 0.0092 | 0.0092 | -0.0001 | 0.0074 | 0.0074 | - | - | - |
JXR
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxr22746 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxr22746 | - | - | - | - | - | - | - | - | - |
| PERT0 | jxr22746 | - | - | - | - | - | - | - | - | - |
JXF
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxf22746 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxf22746 | - | - | - | - | - | - | - | - | - |
| PERT0 | jxf22746 | - | - | - | - | - | - | - | - | - |

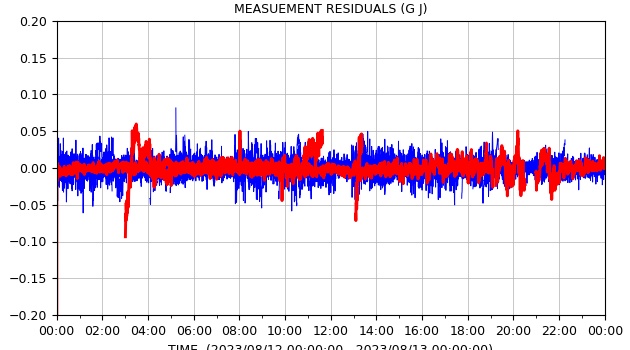

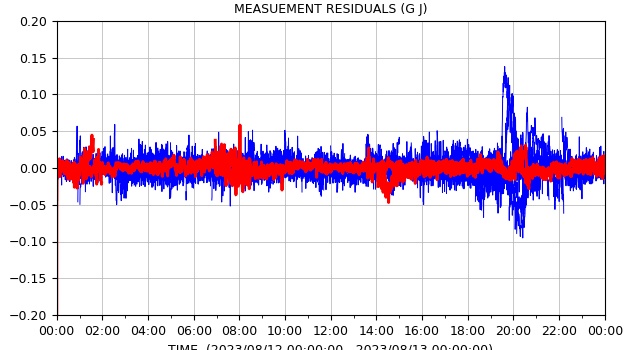

MGRT1/MGRT2 (2023-08-12, DOY=6, 2274-224)
| MADOCA_SSR1 Real Time Residuals | |
| MADOCA_SSR2 Real Time Residuals | |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2023/08/12 00:00:00-2023/08/13 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2023/08/12 00:00:00-2023/08/13 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
JXU (2023-08-12, DOY=6, 2274-224)
| TIME(2023/08/12 00:00:00-2023/08/13 00:00:00) | |
| |
| TIME(2023/08/12 06:00:00-2023/08/13 06:00:00) | |
| |
| TIME(2023/08/12 12:00:00-2023/08/13 12:00:00) | |
| |
| TIME(2023/08/12 18:00:00-2023/08/13 18:00:00) | |
| |
| TIME(2023/08/12 00:00:00-2023/08/13 00:00:00) | |
| |
| TIME(2023/08/12 06:00:00-2023/08/13 06:00:00) | |
| |
| TIME(2023/08/12 12:00:00-2023/08/13 12:00:00) | |
| |
| TIME(2023/08/12 18:00:00-2023/08/13 18:00:00) | |
| |
JXR (2023-08-12, DOY=6, 2274-224)
JXF (2023-08-12, DOY=6, 2274-224)
| update: 2023-08-13 02:57:23 UTC |
| The products are for test and evaluation purpose only. |
