Contents:
-Result Statistics
-Residuals(MGRT1,MGRT2
MGU,MGR,MGF
| MGRT Station: | CPNM2 TSK2 PERT0 | |
| JXU Station: | CPNM2 TSK2 PERT0 | |
| JXR Station: | CPNM2 TSK2 PERT0 | |
| JXF Station: | CPNM2 TSK2 PERT0 |
2023-08-28, DOY=1, 2277-240
Result Statistics ↑
MGRT1/MGRT2
| Station | Product | Real Time PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | MGRT1 | - | - | - | - | - | - | - | - | - |
| CPNM2 | MGRT2 | - | - | - | - | - | - | - | - | - |
| TSK2 | MGRT1 | -0.0001 | 0.0080 | 0.0080 | 0.0000 | 0.0108 | 0.0108 | - | - | - |
| TSK2 | MGRT2 | -0.0001 | 0.0086 | 0.0086 | 0.0000 | 0.0108 | 0.0108 | - | - | - |
| PERT0 | MGRT1 | 0.0003 | 0.0115 | 0.0116 | -0.0001 | 0.0113 | 0.0114 | - | - | - |
| PERT0 | MGRT2 | 0.0003 | 0.0112 | 0.0112 | -0.0001 | 0.0128 | 0.0129 | - | - | - |
JXU
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxu22771_18 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22771_12 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22771_06 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22771_00 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxu22771_18 | 0.0001 | 0.0064 | 0.0064 | -0.0000 | 0.0068 | 0.0069 | - | - | - |
| TSK2 | jxu22771_12 | 0.0001 | 0.0062 | 0.0062 | -0.0000 | 0.0068 | 0.0068 | - | - | - |
| TSK2 | jxu22771_06 | -0.0001 | 0.0060 | 0.0060 | 0.0001 | 0.0069 | 0.0069 | - | - | - |
| TSK2 | jxu22771_00 | -0.0001 | 0.0063 | 0.0063 | 0.0001 | 0.0090 | 0.0091 | - | - | - |
| PERT0 | jxu22771_18 | 0.0002 | 0.0090 | 0.0090 | -0.0001 | 0.0078 | 0.0078 | - | - | - |
| PERT0 | jxu22771_12 | 0.0002 | 0.0092 | 0.0093 | -0.0001 | 0.0079 | 0.0079 | - | - | - |
| PERT0 | jxu22771_06 | 0.0001 | 0.0091 | 0.0091 | -0.0001 | 0.0078 | 0.0078 | - | - | - |
| PERT0 | jxu22771_00 | 0.0002 | 0.0094 | 0.0094 | -0.0001 | 0.0076 | 0.0076 | - | - | - |
JXR
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxr22771 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxr22771 | - | - | - | - | - | - | - | - | - |
| PERT0 | jxr22771 | - | - | - | - | - | - | - | - | - |
JXF
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxf22771 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxf22771 | - | - | - | - | - | - | - | - | - |
| PERT0 | jxf22771 | - | - | - | - | - | - | - | - | - |

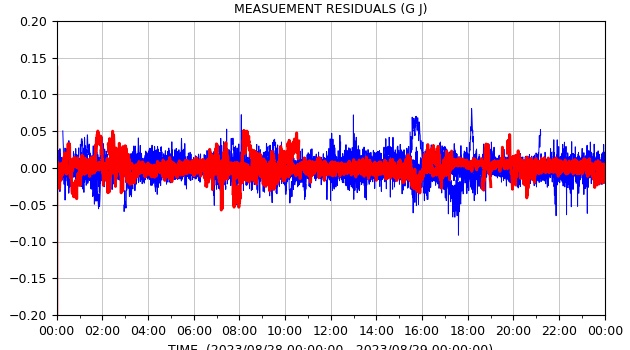

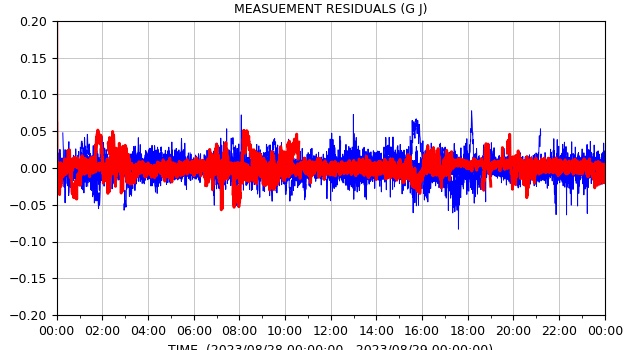

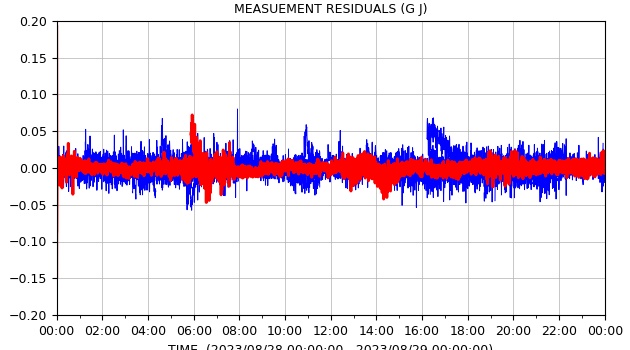

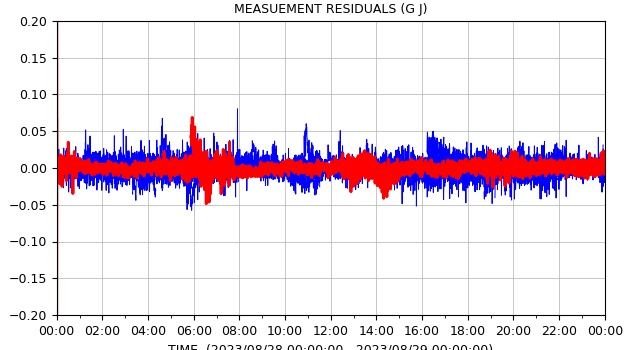

MGRT1/MGRT2 (2023-08-28, DOY=1, 2277-240)
| MADOCA_SSR1 Real Time Residuals | |
| MADOCA_SSR2 Real Time Residuals | |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2023/08/28 00:00:00-2023/08/29 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2023/08/28 00:00:00-2023/08/29 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
JXU (2023-08-28, DOY=1, 2277-240)
| TIME(2023/08/28 00:00:00-2023/08/29 00:00:00) | |
| |
| TIME(2023/08/28 06:00:00-2023/08/29 06:00:00) | |
| |
| TIME(2023/08/28 12:00:00-2023/08/29 12:00:00) | |
| |
| TIME(2023/08/28 18:00:00-2023/08/29 18:00:00) | |
| |
| TIME(2023/08/28 00:00:00-2023/08/29 00:00:00) | |
| |
| TIME(2023/08/28 06:00:00-2023/08/29 06:00:00) | |
| |
| TIME(2023/08/28 12:00:00-2023/08/29 12:00:00) | |
| |
| TIME(2023/08/28 18:00:00-2023/08/29 18:00:00) | |
| |
JXR (2023-08-28, DOY=1, 2277-240)
JXF (2023-08-28, DOY=1, 2277-240)
| update: 2023-08-29 03:09:02 UTC |
| The products are for test and evaluation purpose only. |
