Contents:
-Result Statistics
-Residuals(MGRT1,MGRT2
MGU,MGR,MGF
| MGRT Station: | CPNM2 TSK2 PERT0 | |
| JXU Station: | CPNM2 TSK2 PERT0 | |
| JXR Station: | CPNM2 TSK2 PERT0 | |
| JXF Station: | CPNM2 TSK2 PERT0 |
2023-09-02, DOY=6, 2277-245
Result Statistics ↑
MGRT1/MGRT2
| Station | Product | Real Time PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | MGRT1 | - | - | - | - | - | - | - | - | - |
| CPNM2 | MGRT2 | - | - | - | - | - | - | - | - | - |
| TSK2 | MGRT1 | 0.0001 | 0.0099 | 0.0099 | -0.0000 | 0.0110 | 0.0111 | - | - | - |
| TSK2 | MGRT2 | 0.0001 | 0.0092 | 0.0092 | -0.0000 | 0.0112 | 0.0112 | - | - | - |
| PERT0 | MGRT1 | 0.0003 | 0.0144 | 0.0144 | -0.0001 | 0.0126 | 0.0126 | - | - | - |
| PERT0 | MGRT2 | 0.0003 | 0.0146 | 0.0146 | -0.0001 | 0.0126 | 0.0126 | - | - | - |
JXU
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxu22776_18 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22776_12 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22776_06 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22776_00 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxu22776_18 | -0.0001 | 0.0066 | 0.0066 | 0.0000 | 0.0078 | 0.0079 | - | - | - |
| TSK2 | jxu22776_12 | -0.0001 | 0.0065 | 0.0065 | 0.0000 | 0.0076 | 0.0077 | - | - | - |
| TSK2 | jxu22776_06 | -0.0000 | 0.0059 | 0.0059 | 0.0000 | 0.0068 | 0.0069 | - | - | - |
| TSK2 | jxu22776_00 | -0.0001 | 0.0061 | 0.0061 | 0.0000 | 0.0071 | 0.0071 | - | - | - |
| PERT0 | jxu22776_18 | 0.0004 | 0.0103 | 0.0103 | -0.0002 | 0.0094 | 0.0094 | - | - | - |
| PERT0 | jxu22776_12 | 0.0003 | 0.0094 | 0.0094 | -0.0001 | 0.0083 | 0.0083 | - | - | - |
| PERT0 | jxu22776_06 | 0.0002 | 0.0098 | 0.0098 | -0.0001 | 0.0095 | 0.0095 | - | - | - |
| PERT0 | jxu22776_00 | 0.0002 | 0.0117 | 0.0117 | -0.0001 | 0.0097 | 0.0097 | - | - | - |
JXR
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxr22776 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxr22776 | - | - | - | - | - | - | - | - | - |
| PERT0 | jxr22776 | - | - | - | - | - | - | - | - | - |
JXF
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxf22776 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxf22776 | - | - | - | - | - | - | - | - | - |
| PERT0 | jxf22776 | - | - | - | - | - | - | - | - | - |
MGRT1/MGRT2 (2023-09-02, DOY=6, 2277-245)
| MADOCA_SSR1 Real Time Residuals | |
| MADOCA_SSR2 Real Time Residuals | |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2023/09/02 00:00:00-2023/09/03 00:00:00) | |
|
| |

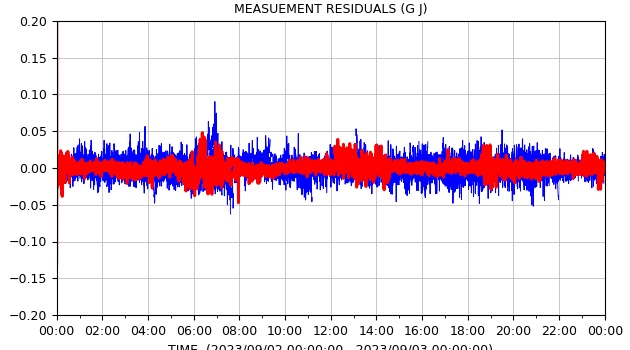

| MADOCA_SSR2 Real Time Residuals | |
|
| |

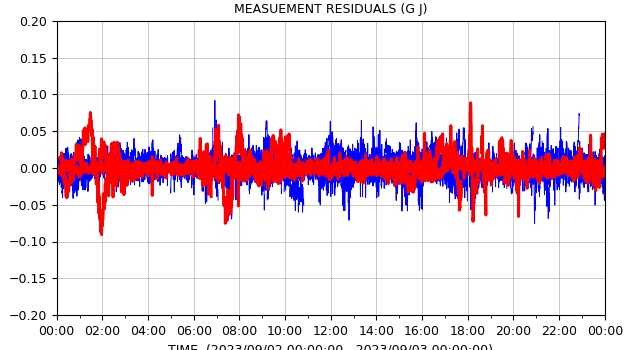

| MADOCA_SSR1 Real Time Residuals | |
| TIME(2023/09/02 00:00:00-2023/09/03 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
JXU (2023-09-02, DOY=6, 2277-245)
| TIME(2023/09/02 00:00:00-2023/09/03 00:00:00) | |
| |
| TIME(2023/09/02 06:00:00-2023/09/03 06:00:00) | |
| |
| TIME(2023/09/02 12:00:00-2023/09/03 12:00:00) | |
| |
| TIME(2023/09/02 18:00:00-2023/09/03 18:00:00) | |
| |
| TIME(2023/09/02 00:00:00-2023/09/03 00:00:00) | |
| |
| TIME(2023/09/02 06:00:00-2023/09/03 06:00:00) | |
| |
| TIME(2023/09/02 12:00:00-2023/09/03 12:00:00) | |
| |
| TIME(2023/09/02 18:00:00-2023/09/03 18:00:00) | |
| |
JXR (2023-09-02, DOY=6, 2277-245)
JXF (2023-09-02, DOY=6, 2277-245)
| update: 2023-09-03 03:09:35 UTC |
| The products are for test and evaluation purpose only. |
