Contents:
-Result Statistics
-Residuals(MGRT1,MGRT2
MGU,MGR,MGF
| MGRT Station: | CPNM2 TSK2 PERT0 | |
| JXU Station: | CPNM2 TSK2 PERT0 | |
| JXR Station: | CPNM2 TSK2 PERT0 | |
| JXF Station: | CPNM2 TSK2 PERT0 |
2023-09-13, DOY=3, 2279-256
Result Statistics ↑
MGRT1/MGRT2
| Station | Product | Real Time PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | MGRT1 | - | - | - | - | - | - | - | - | - |
| CPNM2 | MGRT2 | - | - | - | - | - | - | - | - | - |
| TSK2 | MGRT1 | -0.0004 | 0.0110 | 0.0111 | 0.0002 | 0.0124 | 0.0124 | - | - | - |
| TSK2 | MGRT2 | -0.0005 | 0.0104 | 0.0104 | 0.0002 | 0.0114 | 0.0115 | - | - | - |
| PERT0 | MGRT1 | 0.0004 | 0.0161 | 0.0161 | -0.0002 | 0.0147 | 0.0147 | - | - | - |
| PERT0 | MGRT2 | 0.0004 | 0.0160 | 0.0160 | -0.0002 | 0.0139 | 0.0139 | - | - | - |
JXU
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxu22793_18 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22793_12 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22793_06 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22793_00 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxu22793_18 | -0.0003 | 0.0062 | 0.0062 | 0.0001 | 0.0070 | 0.0070 | - | - | - |
| TSK2 | jxu22793_12 | -0.0003 | 0.0066 | 0.0066 | 0.0001 | 0.0072 | 0.0073 | - | - | - |
| TSK2 | jxu22793_06 | -0.0002 | 0.0057 | 0.0057 | 0.0001 | 0.0069 | 0.0069 | - | - | - |
| TSK2 | jxu22793_00 | -0.0001 | 0.0055 | 0.0055 | 0.0001 | 0.0072 | 0.0073 | - | - | - |
| PERT0 | jxu22793_18 | 0.0003 | 0.0111 | 0.0112 | -0.0002 | 0.0106 | 0.0106 | - | - | - |
| PERT0 | jxu22793_12 | 0.0002 | 0.0104 | 0.0104 | -0.0001 | 0.0095 | 0.0095 | - | - | - |
| PERT0 | jxu22793_06 | 0.0003 | 0.0111 | 0.0111 | -0.0002 | 0.0086 | 0.0086 | - | - | - |
| PERT0 | jxu22793_00 | 0.0004 | 0.0098 | 0.0098 | -0.0002 | 0.0078 | 0.0078 | - | - | - |
JXR
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxr22793 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxr22793 | - | - | - | - | - | - | - | - | - |
| PERT0 | jxr22793 | - | - | - | - | - | - | - | - | - |
JXF
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxf22793 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxf22793 | - | - | - | - | - | - | - | - | - |
| PERT0 | jxf22793 | - | - | - | - | - | - | - | - | - |
MGRT1/MGRT2 (2023-09-13, DOY=3, 2279-256)
| MADOCA_SSR1 Real Time Residuals | |
| MADOCA_SSR2 Real Time Residuals | |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2023/09/13 00:00:00-2023/09/14 00:00:00) | |
|
| |

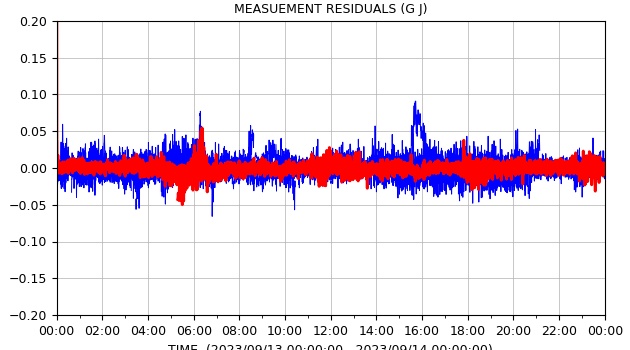

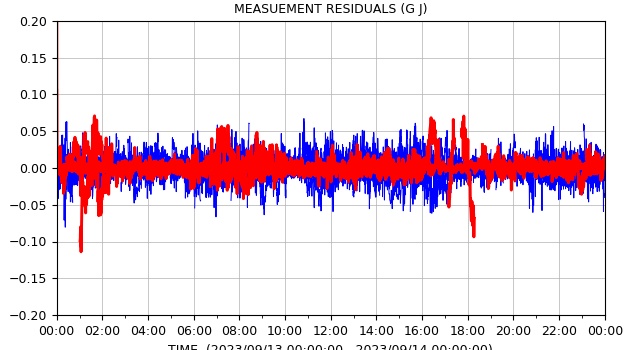

| MADOCA_SSR2 Real Time Residuals | |
|
| |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2023/09/13 00:00:00-2023/09/14 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
JXU (2023-09-13, DOY=3, 2279-256)
| TIME(2023/09/13 00:00:00-2023/09/14 00:00:00) | |
| |
| TIME(2023/09/13 06:00:00-2023/09/14 06:00:00) | |
| |
| TIME(2023/09/13 12:00:00-2023/09/14 12:00:00) | |
| |
| TIME(2023/09/13 18:00:00-2023/09/14 18:00:00) | |
| |
| TIME(2023/09/13 00:00:00-2023/09/14 00:00:00) | |
| |
| TIME(2023/09/13 06:00:00-2023/09/14 06:00:00) | |
| |
| TIME(2023/09/13 12:00:00-2023/09/14 12:00:00) | |
| |
| TIME(2023/09/13 18:00:00-2023/09/14 18:00:00) | |
| |
JXR (2023-09-13, DOY=3, 2279-256)
JXF (2023-09-13, DOY=3, 2279-256)
| update: 2023-09-14 03:15:41 UTC |
| The products are for test and evaluation purpose only. |
