Contents:
-Result Statistics
-Residuals(MGRT1,MGRT2
MGU,MGR,MGF
| MGRT Station: | CPNM2 TSK2 PERT0 | |
| JXU Station: | CPNM2 TSK2 PERT0 | |
| JXR Station: | CPNM2 TSK2 PERT0 | |
| JXF Station: | CPNM2 TSK2 PERT0 |
2023-10-06, DOY=5, 2282-279
Result Statistics ↑
MGRT1/MGRT2
| Station | Product | Real Time PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | MGRT1 | - | - | - | - | - | - | - | - | - |
| CPNM2 | MGRT2 | - | - | - | - | - | - | - | - | - |
| TSK2 | MGRT1 | -0.0000 | 0.0092 | 0.0092 | 0.0000 | 0.0120 | 0.0120 | - | - | - |
| TSK2 | MGRT2 | -0.0000 | 0.0077 | 0.0077 | 0.0000 | 0.0109 | 0.0109 | - | - | - |
| PERT0 | MGRT1 | 0.0006 | 0.0116 | 0.0116 | -0.0002 | 0.0116 | 0.0116 | - | - | - |
| PERT0 | MGRT2 | 0.0006 | 0.0110 | 0.0111 | -0.0002 | 0.0118 | 0.0119 | - | - | - |
JXU
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxu22825_18 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22825_12 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22825_06 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22825_00 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxu22825_18 | -0.0000 | 0.0070 | 0.0070 | 0.0000 | 0.0078 | 0.0079 | - | - | - |
| TSK2 | jxu22825_12 | -0.0001 | 0.0068 | 0.0068 | 0.0001 | 0.0073 | 0.0074 | - | - | - |
| TSK2 | jxu22825_06 | -0.0001 | 0.0059 | 0.0059 | 0.0001 | 0.0068 | 0.0068 | - | - | - |
| TSK2 | jxu22825_00 | -0.0001 | 0.0057 | 0.0057 | 0.0001 | 0.0073 | 0.0073 | - | - | - |
| PERT0 | jxu22825_18 | 0.0002 | 0.0079 | 0.0079 | -0.0001 | 0.0071 | 0.0071 | - | - | - |
| PERT0 | jxu22825_12 | 0.0001 | 0.0076 | 0.0076 | -0.0001 | 0.0071 | 0.0071 | - | - | - |
| PERT0 | jxu22825_06 | 0.0002 | 0.0080 | 0.0080 | -0.0001 | 0.0071 | 0.0071 | - | - | - |
| PERT0 | jxu22825_00 | 0.0002 | 0.0081 | 0.0081 | -0.0001 | 0.0073 | 0.0073 | - | - | - |
JXR
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxr22825 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxr22825 | - | - | - | - | - | - | - | - | - |
| PERT0 | jxr22825 | - | - | - | - | - | - | - | - | - |
JXF
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxf22825 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxf22825 | - | - | - | - | - | - | - | - | - |
| PERT0 | jxf22825 | - | - | - | - | - | - | - | - | - |

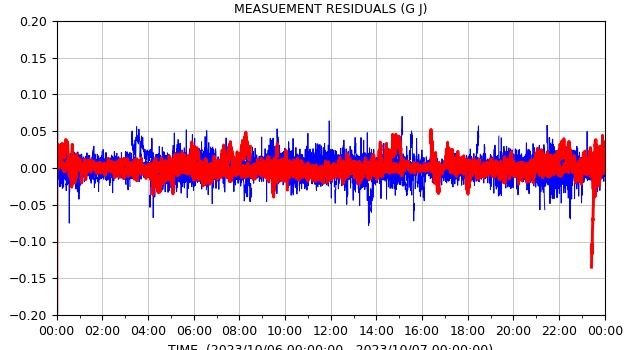

MGRT1/MGRT2 (2023-10-06, DOY=5, 2282-279)
| MADOCA_SSR1 Real Time Residuals | |
| MADOCA_SSR2 Real Time Residuals | |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2023/10/06 00:00:00-2023/10/07 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2023/10/06 00:00:00-2023/10/07 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |

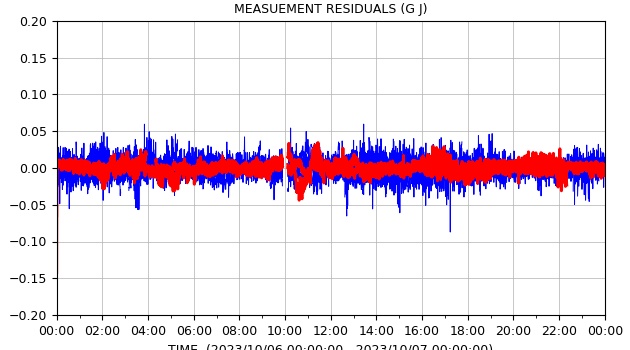

JXU (2023-10-06, DOY=5, 2282-279)
| TIME(2023/10/06 00:00:00-2023/10/07 00:00:00) | |
| |
| TIME(2023/10/06 06:00:00-2023/10/07 06:00:00) | |
| |
| TIME(2023/10/06 12:00:00-2023/10/07 12:00:00) | |
| |
| TIME(2023/10/06 18:00:00-2023/10/07 18:00:00) | |
| |
| TIME(2023/10/06 00:00:00-2023/10/07 00:00:00) | |
| |
| TIME(2023/10/06 06:00:00-2023/10/07 06:00:00) | |
| |
| TIME(2023/10/06 12:00:00-2023/10/07 12:00:00) | |
| |
| TIME(2023/10/06 18:00:00-2023/10/07 18:00:00) | |
| |
JXR (2023-10-06, DOY=5, 2282-279)
JXF (2023-10-06, DOY=5, 2282-279)
| update: 2023-10-07 03:13:49 UTC |
| The products are for test and evaluation purpose only. |
