Contents:
-Result Statistics
-Residuals(MGRT1,MGRT2
MGU,MGR,MGF
| MGRT Station: | CPNM2 TSK2 PERT0 | |
| JXU Station: | CPNM2 TSK2 PERT0 | |
| JXR Station: | CPNM2 TSK2 PERT0 | |
| JXF Station: | CPNM2 TSK2 PERT0 |
2023-10-16, DOY=1, 2284-289
Result Statistics ↑
MGRT1/MGRT2
| Station | Product | Real Time PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | MGRT1 | - | - | - | - | - | - | - | - | - |
| CPNM2 | MGRT2 | - | - | - | - | - | - | - | - | - |
| TSK2 | MGRT1 | 0.0001 | 0.0060 | 0.0060 | -0.0000 | 0.0109 | 0.0110 | - | - | - |
| TSK2 | MGRT2 | 0.0002 | 0.0062 | 0.0062 | -0.0000 | 0.0100 | 0.0100 | - | - | - |
| PERT0 | MGRT1 | 0.0006 | 0.0102 | 0.0102 | -0.0002 | 0.0107 | 0.0107 | - | - | - |
| PERT0 | MGRT2 | 0.0007 | 0.0104 | 0.0104 | -0.0002 | 0.0108 | 0.0109 | - | - | - |
JXU
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxu22841_18 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22841_12 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22841_06 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22841_00 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxu22841_18 | 0.0000 | 0.0049 | 0.0049 | 0.0000 | 0.0055 | 0.0055 | - | - | - |
| TSK2 | jxu22841_12 | -0.0001 | 0.0051 | 0.0051 | 0.0000 | 0.0056 | 0.0056 | - | - | - |
| TSK2 | jxu22841_06 | -0.0001 | 0.0052 | 0.0052 | 0.0000 | 0.0058 | 0.0058 | - | - | - |
| TSK2 | jxu22841_00 | -0.0001 | 0.0053 | 0.0053 | 0.0000 | 0.0059 | 0.0060 | - | - | - |
| PERT0 | jxu22841_18 | 0.0003 | 0.0085 | 0.0085 | -0.0001 | 0.0071 | 0.0071 | - | - | - |
| PERT0 | jxu22841_12 | 0.0003 | 0.0085 | 0.0085 | -0.0002 | 0.0071 | 0.0071 | - | - | - |
| PERT0 | jxu22841_06 | 0.0003 | 0.0084 | 0.0084 | -0.0002 | 0.0071 | 0.0072 | - | - | - |
| PERT0 | jxu22841_00 | 0.0004 | 0.0083 | 0.0083 | -0.0002 | 0.0075 | 0.0075 | - | - | - |
JXR
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxr22841 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxr22841 | - | - | - | - | - | - | - | - | - |
| PERT0 | jxr22841 | - | - | - | - | - | - | - | - | - |
JXF
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxf22841 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxf22841 | - | - | - | - | - | - | - | - | - |
| PERT0 | jxf22841 | - | - | - | - | - | - | - | - | - |

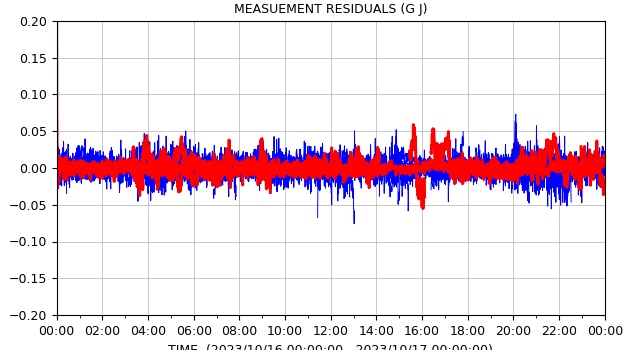

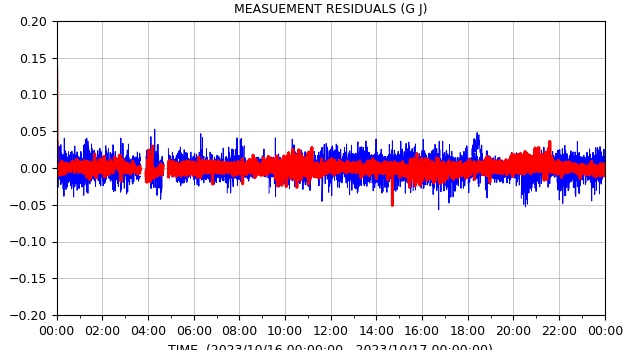

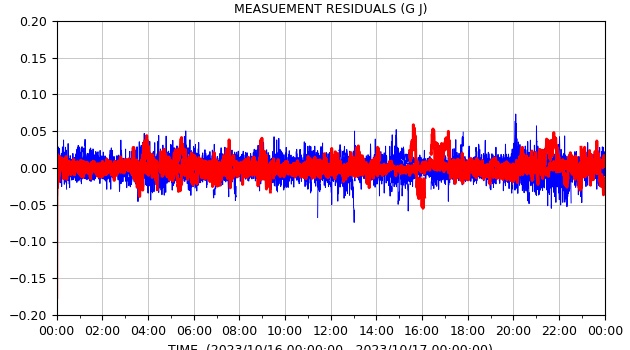

MGRT1/MGRT2 (2023-10-16, DOY=1, 2284-289)
| MADOCA_SSR1 Real Time Residuals | |
| MADOCA_SSR2 Real Time Residuals | |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2023/10/16 00:00:00-2023/10/17 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2023/10/16 00:00:00-2023/10/17 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
JXU (2023-10-16, DOY=1, 2284-289)
| TIME(2023/10/16 00:00:00-2023/10/17 00:00:00) | |
| |
| TIME(2023/10/16 06:00:00-2023/10/17 06:00:00) | |
| |
| TIME(2023/10/16 12:00:00-2023/10/17 12:00:00) | |
| |
| TIME(2023/10/16 18:00:00-2023/10/17 18:00:00) | |
| |
| TIME(2023/10/16 00:00:00-2023/10/17 00:00:00) | |
| |
| TIME(2023/10/16 06:00:00-2023/10/17 06:00:00) | |
| |
| TIME(2023/10/16 12:00:00-2023/10/17 12:00:00) | |
| |
| TIME(2023/10/16 18:00:00-2023/10/17 18:00:00) | |
| |
JXR (2023-10-16, DOY=1, 2284-289)
JXF (2023-10-16, DOY=1, 2284-289)
| update: 2023-10-17 02:59:21 UTC |
| The products are for test and evaluation purpose only. |
