Contents:
-Result Statistics
-Residuals(MGRT1,MGRT2
MGU,MGR,MGF
| MGRT Station: | CPNM2 TSK2 PERT0 | |
| JXU Station: | CPNM2 TSK2 PERT0 | |
| JXR Station: | CPNM2 TSK2 PERT0 | |
| JXF Station: | CPNM2 TSK2 PERT0 |
2023-10-30, DOY=1, 2286-303
Result Statistics ↑
MGRT1/MGRT2
| Station | Product | Real Time PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | MGRT1 | - | - | - | - | - | - | - | - | - |
| CPNM2 | MGRT2 | - | - | - | - | - | - | - | - | - |
| TSK2 | MGRT1 | 0.0001 | 0.0095 | 0.0095 | -0.0000 | 0.0103 | 0.0104 | - | - | - |
| TSK2 | MGRT2 | 0.0001 | 0.0073 | 0.0073 | -0.0000 | 0.0095 | 0.0095 | - | - | - |
| PERT0 | MGRT1 | 0.0005 | 0.0137 | 0.0137 | -0.0002 | 0.0125 | 0.0125 | - | - | - |
| PERT0 | MGRT2 | 0.0005 | 0.0110 | 0.0110 | -0.0002 | 0.0115 | 0.0116 | - | - | - |
JXU
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxu22861_18 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22861_12 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22861_06 | - | - | - | - | - | - | - | - | - |
| CPNM2 | jxu22861_00 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxu22861_18 | -0.0001 | 0.0045 | 0.0045 | 0.0000 | 0.0051 | 0.0051 | - | - | - |
| TSK2 | jxu22861_12 | -0.0001 | 0.0048 | 0.0048 | 0.0000 | 0.0051 | 0.0051 | - | - | - |
| TSK2 | jxu22861_06 | -0.0000 | 0.0048 | 0.0048 | 0.0000 | 0.0051 | 0.0051 | - | - | - |
| TSK2 | jxu22861_00 | 0.0000 | 0.0048 | 0.0048 | -0.0000 | 0.0050 | 0.0050 | - | - | - |
| PERT0 | jxu22861_18 | 0.0004 | 0.0099 | 0.0099 | -0.0002 | 0.0075 | 0.0075 | - | - | - |
| PERT0 | jxu22861_12 | 0.0002 | 0.0084 | 0.0084 | -0.0001 | 0.0076 | 0.0077 | - | - | - |
| PERT0 | jxu22861_06 | 0.0002 | 0.0083 | 0.0083 | -0.0001 | 0.0076 | 0.0077 | - | - | - |
| PERT0 | jxu22861_00 | 0.0002 | 0.0085 | 0.0085 | -0.0001 | 0.0075 | 0.0075 | - | - | - |
JXR
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxr22861 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxr22861 | - | - | - | - | - | - | - | - | - |
| PERT0 | jxr22861 | - | - | - | - | - | - | - | - | - |
JXF
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| CPNM2 | jxf22861 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxf22861 | - | - | - | - | - | - | - | - | - |
| PERT0 | jxf22861 | - | - | - | - | - | - | - | - | - |

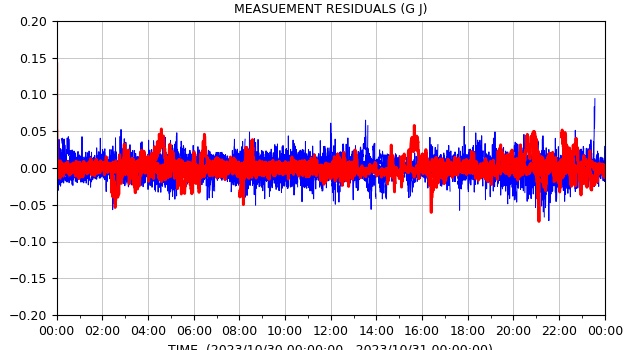

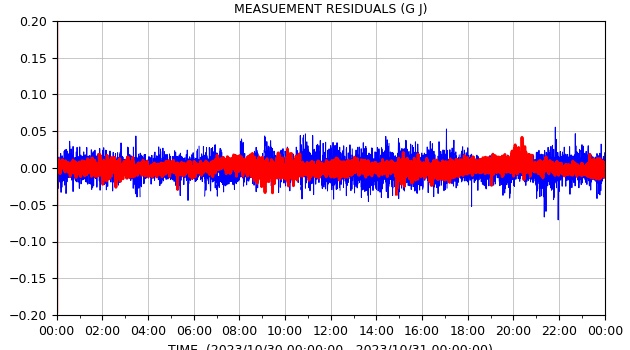

MGRT1/MGRT2 (2023-10-30, DOY=1, 2286-303)
| MADOCA_SSR1 Real Time Residuals | |
| MADOCA_SSR2 Real Time Residuals | |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2023/10/30 00:00:00-2023/10/31 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2023/10/30 00:00:00-2023/10/31 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
JXU (2023-10-30, DOY=1, 2286-303)
| TIME(2023/10/30 00:00:00-2023/10/31 00:00:00) | |
| |
| TIME(2023/10/30 06:00:00-2023/10/31 06:00:00) | |
| |
| TIME(2023/10/30 12:00:00-2023/10/31 12:00:00) | |
| |
| TIME(2023/10/30 18:00:00-2023/10/31 18:00:00) | |
| |
| TIME(2023/10/30 00:00:00-2023/10/31 00:00:00) | |
| |
| TIME(2023/10/30 06:00:00-2023/10/31 06:00:00) | |
| |
| TIME(2023/10/30 12:00:00-2023/10/31 12:00:00) | |
| |
| TIME(2023/10/30 18:00:00-2023/10/31 18:00:00) | |
| |
JXR (2023-10-30, DOY=1, 2286-303)
JXF (2023-10-30, DOY=1, 2286-303)
| update: 2023-10-31 02:58:05 UTC |
| The products are for test and evaluation purpose only. |
