Contents:
-Result Statistics
-Residuals(MGRT1,MGRT2
MGU,MGR,MGF
| MGRT Station: | SIN10 TSK2 PERT0 | |
| JXU Station: | SIN10 TSK2 PERT0 | |
| JXR Station: | SIN10 TSK2 PERT0 | |
| JXF Station: | SIN10 TSK2 PERT0 |
2024-02-15, DOY=4, 2301-046
Result Statistics ↑
MGRT1/MGRT2
| Station | Product | Real Time PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | MGRT1 | - | - | - | 0.0000 | 0.0118 | 0.0118 | - | - | - |
| SIN10 | MGRT2 | - | - | - | 0.0000 | 0.0114 | 0.0114 | - | - | - |
| TSK2 | MGRT1 | 0.0005 | 0.0079 | 0.0079 | -0.0002 | 0.0116 | 0.0116 | - | - | - |
| TSK2 | MGRT2 | 0.0005 | 0.0102 | 0.0102 | -0.0002 | 0.0107 | 0.0107 | - | - | - |
| PERT0 | MGRT1 | 0.0001 | 0.0088 | 0.0088 | -0.0000 | 0.0116 | 0.0116 | - | - | - |
| PERT0 | MGRT2 | 0.0001 | 0.0092 | 0.0092 | -0.0000 | 0.0112 | 0.0113 | - | - | - |
JXU
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxu23014_18 | - | - | - | 0.0000 | 0.0098 | 0.0098 | - | - | - |
| SIN10 | jxu23014_12 | - | - | - | 0.0000 | 0.0098 | 0.0098 | - | - | - |
| SIN10 | jxu23014_06 | - | - | - | 0.0000 | 0.0100 | 0.0100 | - | - | - |
| SIN10 | jxu23014_00 | 0.0002 | 0.0118 | 0.0118 | 0.0000 | 0.0117 | 0.0117 | - | - | - |
| TSK2 | jxu23014_18 | 0.0001 | 0.0057 | 0.0057 | -0.0000 | 0.0064 | 0.0064 | - | - | - |
| TSK2 | jxu23014_12 | 0.0001 | 0.0054 | 0.0054 | -0.0000 | 0.0054 | 0.0054 | - | - | - |
| TSK2 | jxu23014_06 | 0.0000 | 0.0052 | 0.0052 | -0.0000 | 0.0050 | 0.0051 | - | - | - |
| TSK2 | jxu23014_00 | 0.0001 | 0.0051 | 0.0051 | -0.0000 | 0.0048 | 0.0048 | - | - | - |
| PERT0 | jxu23014_18 | 0.0001 | 0.0070 | 0.0070 | -0.0000 | 0.0079 | 0.0079 | - | - | - |
| PERT0 | jxu23014_12 | 0.0002 | 0.0070 | 0.0070 | -0.0001 | 0.0074 | 0.0074 | - | - | - |
| PERT0 | jxu23014_06 | 0.0001 | 0.0070 | 0.0070 | -0.0000 | 0.0076 | 0.0076 | - | - | - |
| PERT0 | jxu23014_00 | 0.0001 | 0.0070 | 0.0070 | -0.0001 | 0.0073 | 0.0073 | - | - | - |

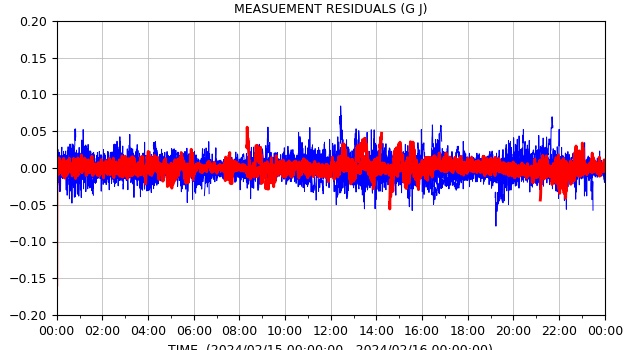

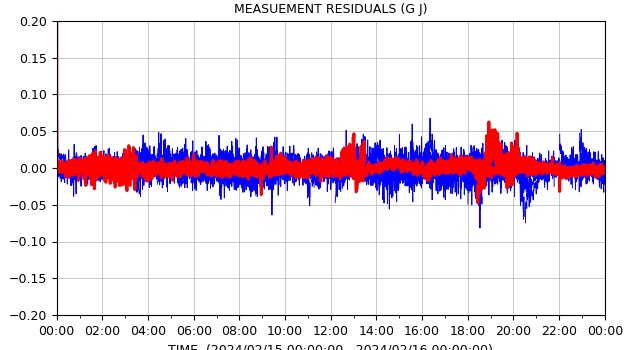

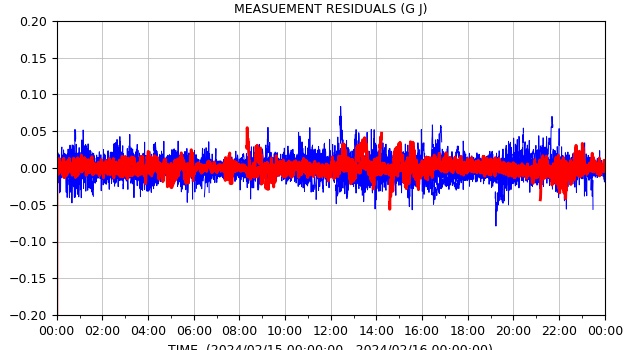

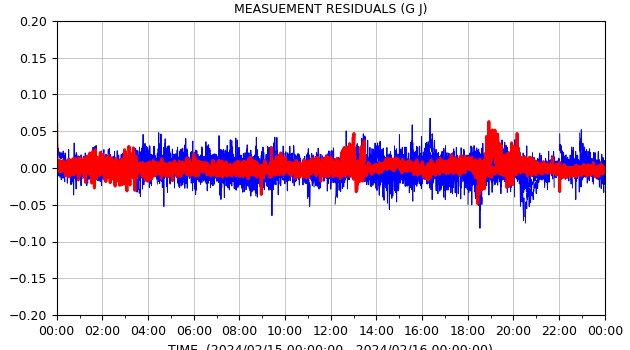

MGRT1/MGRT2 (2024-02-15, DOY=4, 2301-046)
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2024/02/15 00:00:00-2024/02/16 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2024/02/15 00:00:00-2024/02/16 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2024/02/15 00:00:00-2024/02/16 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
JXU (2024-02-15, DOY=4, 2301-046)
| TIME(2024/02/15 00:00:00-2024/02/16 00:00:00) | |
| |
| TIME(2024/02/15 06:00:00-2024/02/16 06:00:00) | |
| |
| TIME(2024/02/15 12:00:00-2024/02/16 12:00:00) | |
| |
| TIME(2024/02/15 18:00:00-2024/02/16 18:00:00) | |
| |
| TIME(2024/02/15 00:00:00-2024/02/16 00:00:00) | |
| |
| TIME(2024/02/15 06:00:00-2024/02/16 06:00:00) | |
| |
| TIME(2024/02/15 12:00:00-2024/02/16 12:00:00) | |
| |
| TIME(2024/02/15 18:00:00-2024/02/16 18:00:00) | |
| |
| TIME(2024/02/15 00:00:00-2024/02/16 00:00:00) | |
| |
| TIME(2024/02/15 06:00:00-2024/02/16 06:00:00) | |
| |
| TIME(2024/02/15 12:00:00-2024/02/16 12:00:00) | |
| |
| TIME(2024/02/15 18:00:00-2024/02/16 18:00:00) | |
| |
| update: 2024-02-17 12:08:17 UTC |
| The products are for test and evaluation purpose only. |
