Contents:
-Result Statistics
-Residuals(MGRT1,MGRT2
MGU,MGR,MGF
| MGRT Station: | SIN10 TSK2 PERT0 | |
| JXU Station: | SIN10 TSK2 PERT0 | |
| JXR Station: | SIN10 TSK2 PERT0 | |
| JXF Station: | SIN10 TSK2 PERT0 |
2024-06-15, DOY=6, 2318-167
Result Statistics ↑
MGRT1/MGRT2
| Station | Product | Real Time PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | MGRT1 | - | - | - | - | - | - | - | - | - |
| SIN10 | MGRT2 | - | - | - | - | - | - | - | - | - |
| TSK2 | MGRT1 | - | - | - | - | - | - | - | - | - |
| TSK2 | MGRT2 | - | - | - | - | - | - | - | - | - |
| PERT0 | MGRT1 | - | - | - | - | - | - | - | - | - |
| PERT0 | MGRT2 | - | - | - | - | - | - | - | - | - |
JXU
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxu23186_18 | -0.0000 | 0.0099 | 0.0099 | 0.0000 | 0.0125 | 0.0125 | - | - | - |
| SIN10 | jxu23186_12 | -0.0000 | 0.0096 | 0.0096 | 0.0000 | 0.0122 | 0.0122 | - | - | - |
| SIN10 | jxu23186_06 | -0.0000 | 0.0100 | 0.0100 | 0.0000 | 0.0123 | 0.0123 | - | - | - |
| SIN10 | jxu23186_00 | -0.0000 | 0.0095 | 0.0095 | 0.0000 | 0.0125 | 0.0125 | - | - | - |
| TSK2 | jxu23186_18 | 0.0001 | 0.0065 | 0.0065 | -0.0000 | 0.0071 | 0.0071 | - | - | - |
| TSK2 | jxu23186_12 | 0.0001 | 0.0062 | 0.0062 | -0.0000 | 0.0067 | 0.0067 | - | - | - |
| TSK2 | jxu23186_06 | 0.0002 | 0.0061 | 0.0061 | -0.0001 | 0.0068 | 0.0069 | - | - | - |
| TSK2 | jxu23186_00 | 0.0001 | 0.0061 | 0.0061 | -0.0000 | 0.0070 | 0.0070 | - | - | - |
| PERT0 | jxu23186_18 | 0.0003 | 0.0084 | 0.0084 | -0.0001 | 0.0081 | 0.0081 | - | - | - |
| PERT0 | jxu23186_12 | 0.0003 | 0.0076 | 0.0076 | -0.0001 | 0.0080 | 0.0080 | - | - | - |
| PERT0 | jxu23186_06 | 0.0002 | 0.0077 | 0.0077 | -0.0001 | 0.0076 | 0.0077 | - | - | - |
| PERT0 | jxu23186_00 | 0.0001 | 0.0077 | 0.0077 | -0.0001 | 0.0077 | 0.0077 | - | - | - |
JXR
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxr23186 | 0.0000 | 0.0096 | 0.0096 | 0.0000 | 0.0124 | 0.0124 | - | - | - |
| TSK2 | jxr23186 | 0.0000 | 0.0064 | 0.0064 | 0.0000 | 0.0073 | 0.0073 | - | - | - |
| PERT0 | jxr23186 | 0.0002 | 0.0080 | 0.0080 | -0.0001 | 0.0081 | 0.0082 | - | - | - |
JXF
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxf23186 | 0.0000 | 0.0096 | 0.0096 | 0.0000 | 0.0124 | 0.0124 | - | - | - |
| TSK2 | jxf23186 | 0.0000 | 0.0065 | 0.0065 | -0.0000 | 0.0073 | 0.0073 | - | - | - |
| PERT0 | jxf23186 | 0.0002 | 0.0081 | 0.0081 | -0.0001 | 0.0081 | 0.0082 | - | - | - |
MGRT1/MGRT2 (2024-06-15, DOY=6, 2318-167)
| MADOCA_SSR1 Real Time Residuals | |
| MADOCA_SSR2 Real Time Residuals | |
| TIME(2024/06/15 00:00:00-2024/06/16 00:00:00) | |
|
| |

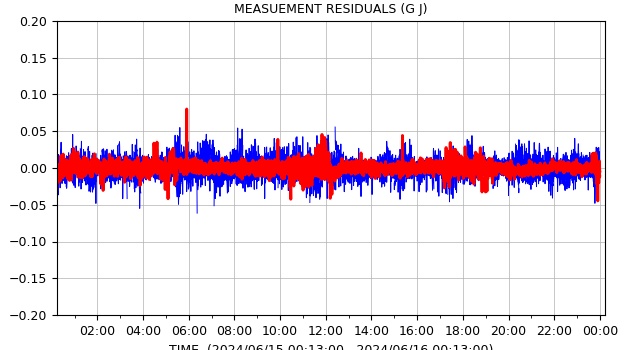

| MADOCA_SSR1 Real Time Residuals | |
| MADOCA_SSR2 Real Time Residuals | |
| TIME(2024/06/15 00:00:00-2024/06/16 00:00:00) | |
|
| |

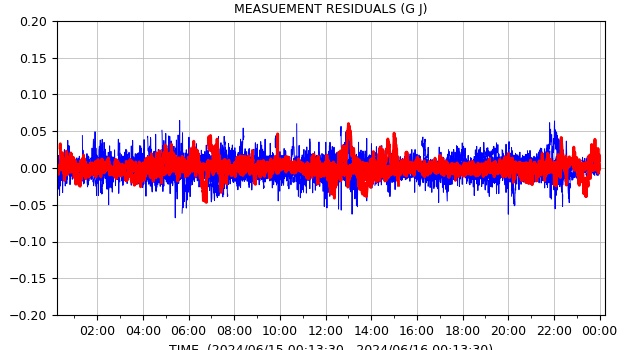

| MADOCA_SSR1 Real Time Residuals | |
| MADOCA_SSR2 Real Time Residuals | |
| TIME(2024/06/15 00:00:00-2024/06/16 00:00:00) | |
|
| |
JXU (2024-06-15, DOY=6, 2318-167)
| TIME(2024/06/15 00:00:00-2024/06/16 00:00:00) | |
| |
| TIME(2024/06/15 06:00:00-2024/06/16 06:00:00) | |
| |
| TIME(2024/06/15 12:00:00-2024/06/16 12:00:00) | |
| |
| TIME(2024/06/15 18:00:00-2024/06/16 18:00:00) | |
| |
| TIME(2024/06/15 00:00:00-2024/06/16 00:00:00) | |
| |
| TIME(2024/06/15 06:00:00-2024/06/16 06:00:00) | |
| |
| TIME(2024/06/15 12:00:00-2024/06/16 12:00:00) | |
| |
| TIME(2024/06/15 18:00:00-2024/06/16 18:00:00) | |
| |
| TIME(2024/06/15 00:00:00-2024/06/16 00:00:00) | |
| |
| TIME(2024/06/15 06:00:00-2024/06/16 06:00:00) | |
| |
| TIME(2024/06/15 12:00:00-2024/06/16 12:00:00) | |
| |
| TIME(2024/06/15 18:00:00-2024/06/16 18:00:00) | |
| |
JXR (2024-06-15, DOY=6, 2318-167)
| TIME(2024/06/15 00:00:00-2024/06/16 00:00:00) | |
| |
| TIME(2024/06/15 00:00:00-2024/06/16 00:00:00) | |
| |
| TIME(2024/06/15 00:00:00-2024/06/16 00:00:00) | |
| |
JXF (2024-06-15, DOY=6, 2318-167)
| TIME(2024/06/15 00:00:00-2024/06/16 00:00:00) | |
| |
| TIME(2024/06/15 00:00:00-2024/06/16 00:00:00) | |
| |
| TIME(2024/06/15 00:00:00-2024/06/16 00:00:00) | |
| |
| update: 2024-06-17 18:47:45 UTC |
| The products are for test and evaluation purpose only. |
