Contents:
-Result Statistics
-Residuals(MGRT1,MGRT2
MGU,MGR,MGF
| MGRT Station: | SIN10 TSK2 PERT0 | |
| JXU Station: | SIN10 TSK2 PERT0 | |
| JXR Station: | SIN10 TSK2 PERT0 | |
| JXF Station: | SIN10 TSK2 PERT0 |
2024-07-08, DOY=1, 2322-190
Result Statistics ↑
MGRT1/MGRT2
| Station | Product | Real Time PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | MGRT1 | -0.0000 | 0.0103 | 0.0103 | 0.0000 | 0.0144 | 0.0144 | - | - | - |
| SIN10 | MGRT2 | 0.0000 | 0.0113 | 0.0113 | -0.0000 | 0.0146 | 0.0146 | - | - | - |
| TSK2 | MGRT1 | 0.0004 | 0.0079 | 0.0079 | -0.0001 | 0.0123 | 0.0123 | - | - | - |
| TSK2 | MGRT2 | 0.0004 | 0.0096 | 0.0096 | -0.0001 | 0.0131 | 0.0131 | - | - | - |
| PERT0 | MGRT1 | 0.0004 | 0.0102 | 0.0102 | -0.0001 | 0.0120 | 0.0120 | - | - | - |
| PERT0 | MGRT2 | 0.0003 | 0.0128 | 0.0128 | -0.0001 | 0.0116 | 0.0117 | - | - | - |
JXU
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxu23221_18 | 0.0001 | 0.0095 | 0.0095 | -0.0000 | 0.0125 | 0.0126 | - | - | - |
| SIN10 | jxu23221_12 | 0.0001 | 0.0103 | 0.0103 | -0.0000 | 0.0129 | 0.0129 | - | - | - |
| SIN10 | jxu23221_06 | 0.0000 | 0.0104 | 0.0104 | -0.0000 | 0.0130 | 0.0131 | - | - | - |
| SIN10 | jxu23221_00 | -0.0000 | 0.0096 | 0.0096 | 0.0000 | 0.0115 | 0.0115 | - | - | - |
| TSK2 | jxu23221_18 | -0.0000 | 0.0060 | 0.0060 | 0.0000 | 0.0075 | 0.0075 | - | - | - |
| TSK2 | jxu23221_12 | 0.0000 | 0.0060 | 0.0060 | -0.0000 | 0.0076 | 0.0076 | - | - | - |
| TSK2 | jxu23221_06 | -0.0001 | 0.0062 | 0.0062 | 0.0000 | 0.0073 | 0.0073 | - | - | - |
| TSK2 | jxu23221_00 | -0.0000 | 0.0061 | 0.0061 | 0.0000 | 0.0068 | 0.0068 | - | - | - |
| PERT0 | jxu23221_18 | 0.0002 | 0.0085 | 0.0085 | -0.0001 | 0.0085 | 0.0085 | - | - | - |
| PERT0 | jxu23221_12 | 0.0001 | 0.0080 | 0.0080 | -0.0001 | 0.0076 | 0.0076 | - | - | - |
| PERT0 | jxu23221_06 | 0.0001 | 0.0080 | 0.0080 | -0.0000 | 0.0079 | 0.0080 | - | - | - |
| PERT0 | jxu23221_00 | 0.0001 | 0.0085 | 0.0085 | -0.0001 | 0.0091 | 0.0091 | - | - | - |
JXR
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxr23221 | -0.0000 | 0.0094 | 0.0094 | 0.0000 | 0.0109 | 0.0109 | - | - | - |
| TSK2 | jxr23221 | 0.0000 | 0.0064 | 0.0064 | -0.0000 | 0.0081 | 0.0081 | - | - | - |
| PERT0 | jxr23221 | 0.0003 | 0.0084 | 0.0084 | -0.0001 | 0.0085 | 0.0085 | - | - | - |
JXF
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxf23221 | -0.0000 | 0.0094 | 0.0094 | 0.0000 | 0.0108 | 0.0109 | - | - | - |
| TSK2 | jxf23221 | 0.0000 | 0.0064 | 0.0064 | -0.0000 | 0.0081 | 0.0081 | - | - | - |
| PERT0 | jxf23221 | 0.0003 | 0.0085 | 0.0085 | -0.0001 | 0.0085 | 0.0086 | - | - | - |

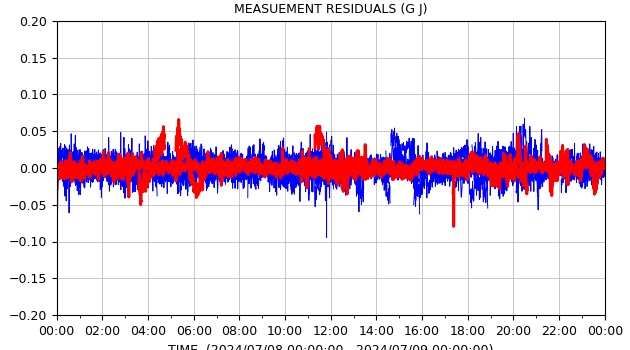

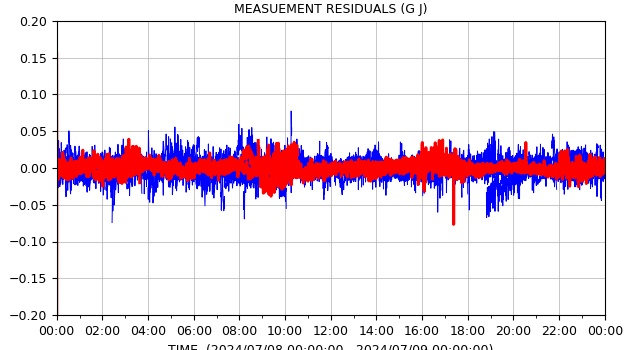

MGRT1/MGRT2 (2024-07-08, DOY=1, 2322-190)
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2024/07/08 00:00:00-2024/07/09 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2024/07/08 00:00:00-2024/07/09 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2024/07/08 00:00:00-2024/07/09 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
JXU (2024-07-08, DOY=1, 2322-190)
| TIME(2024/07/08 00:00:00-2024/07/09 00:00:00) | |
| |
| TIME(2024/07/08 06:00:00-2024/07/09 06:00:00) | |
| |
| TIME(2024/07/08 12:00:00-2024/07/09 12:00:00) | |
| |
| TIME(2024/07/08 18:00:00-2024/07/09 18:00:00) | |
| |
| TIME(2024/07/08 00:00:00-2024/07/09 00:00:00) | |
| |
| TIME(2024/07/08 06:00:00-2024/07/09 06:00:00) | |
| |
| TIME(2024/07/08 12:00:00-2024/07/09 12:00:00) | |
| |
| TIME(2024/07/08 18:00:00-2024/07/09 18:00:00) | |
| |
| TIME(2024/07/08 00:00:00-2024/07/09 00:00:00) | |
| |
| TIME(2024/07/08 06:00:00-2024/07/09 06:00:00) | |
| |
| TIME(2024/07/08 12:00:00-2024/07/09 12:00:00) | |
| |
| TIME(2024/07/08 18:00:00-2024/07/09 18:00:00) | |
| |
JXR (2024-07-08, DOY=1, 2322-190)
| TIME(2024/07/08 00:00:00-2024/07/09 00:00:00) | |
| |
| TIME(2024/07/08 00:00:00-2024/07/09 00:00:00) | |
| |
| TIME(2024/07/08 00:00:00-2024/07/09 00:00:00) | |
| |
JXF (2024-07-08, DOY=1, 2322-190)
| TIME(2024/07/08 00:00:00-2024/07/09 00:00:00) | |
| |
| TIME(2024/07/08 00:00:00-2024/07/09 00:00:00) | |
| |
| TIME(2024/07/08 00:00:00-2024/07/09 00:00:00) | |
| |
| update: 2024-07-10 18:30:19 UTC |
| The products are for test and evaluation purpose only. |
