Contents:
-Result Statistics
-Residuals(MGRT1,MGRT2
MGU,MGR,MGF
| MGRT Station: | SIN10 TSK2 PERT0 | |
| JXU Station: | SIN10 TSK2 PERT0 | |
| JXR Station: | SIN10 TSK2 PERT0 | |
| JXF Station: | SIN10 TSK2 PERT0 |
2024-11-04, DOY=1, 2339-309
Result Statistics ↑
MGRT1/MGRT2
| Station | Product | Real Time PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | MGRT1 | - | - | - | 0.0000 | 0.0114 | 0.0114 | - | - | - |
| SIN10 | MGRT2 | - | - | - | 0.0000 | 0.0119 | 0.0119 | - | - | - |
| TSK2 | MGRT1 | -0.0002 | 0.0074 | 0.0074 | 0.0000 | 0.0079 | 0.0079 | - | - | - |
| TSK2 | MGRT2 | -0.0002 | 0.0076 | 0.0076 | 0.0001 | 0.0084 | 0.0084 | - | - | - |
| PERT0 | MGRT1 | 0.0008 | 0.0100 | 0.0100 | -0.0002 | 0.0100 | 0.0100 | - | - | - |
| PERT0 | MGRT2 | 0.0008 | 0.0100 | 0.0101 | -0.0002 | 0.0100 | 0.0101 | - | - | - |
JXU
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxu23391_18 | 0.0000 | 0.0100 | 0.0100 | 0.0000 | 0.0099 | 0.0099 | - | - | - |
| SIN10 | jxu23391_12 | -0.0000 | 0.0086 | 0.0086 | 0.0000 | 0.0101 | 0.0101 | - | - | - |
| SIN10 | jxu23391_06 | 0.0000 | 0.0088 | 0.0088 | 0.0000 | 0.0102 | 0.0102 | - | - | - |
| SIN10 | jxu23391_00 | 0.0001 | 0.0092 | 0.0092 | -0.0000 | 0.0103 | 0.0103 | - | - | - |
| TSK2 | jxu23391_18 | -0.0000 | 0.0045 | 0.0045 | 0.0000 | 0.0048 | 0.0048 | - | - | - |
| TSK2 | jxu23391_12 | -0.0000 | 0.0045 | 0.0045 | 0.0000 | 0.0049 | 0.0049 | - | - | - |
| TSK2 | jxu23391_06 | -0.0000 | 0.0045 | 0.0045 | 0.0000 | 0.0049 | 0.0049 | - | - | - |
| TSK2 | jxu23391_00 | -0.0000 | 0.0046 | 0.0046 | 0.0000 | 0.0049 | 0.0049 | - | - | - |
| PERT0 | jxu23391_18 | 0.0003 | 0.0074 | 0.0074 | -0.0001 | 0.0073 | 0.0073 | - | - | - |
| PERT0 | jxu23391_12 | 0.0003 | 0.0071 | 0.0071 | -0.0001 | 0.0071 | 0.0071 | - | - | - |
| PERT0 | jxu23391_06 | 0.0003 | 0.0069 | 0.0070 | -0.0001 | 0.0072 | 0.0072 | - | - | - |
| PERT0 | jxu23391_00 | 0.0002 | 0.0068 | 0.0068 | -0.0001 | 0.0073 | 0.0073 | - | - | - |
JXR
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxr23391 | 0.0000 | 0.0094 | 0.0094 | 0.0000 | 0.0095 | 0.0095 | - | - | - |
| TSK2 | jxr23391 | -0.0000 | 0.0046 | 0.0046 | 0.0000 | 0.0049 | 0.0049 | - | - | - |
| PERT0 | jxr23391 | 0.0003 | 0.0077 | 0.0077 | -0.0001 | 0.0078 | 0.0078 | - | - | - |
JXF
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxf23391 | 0.0000 | 0.0094 | 0.0094 | 0.0000 | 0.0095 | 0.0095 | - | - | - |
| TSK2 | jxf23391 | -0.0000 | 0.0046 | 0.0046 | 0.0000 | 0.0049 | 0.0049 | - | - | - |
| PERT0 | jxf23391 | 0.0003 | 0.0077 | 0.0077 | -0.0001 | 0.0078 | 0.0078 | - | - | - |

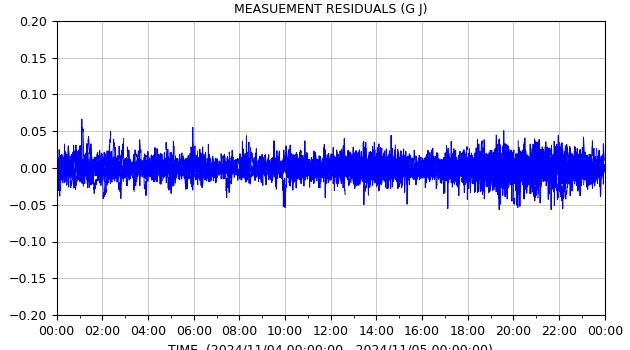

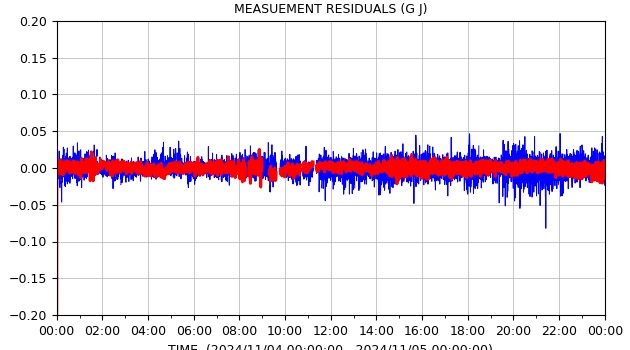

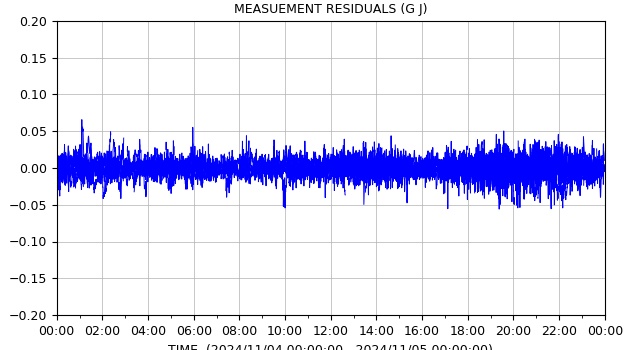

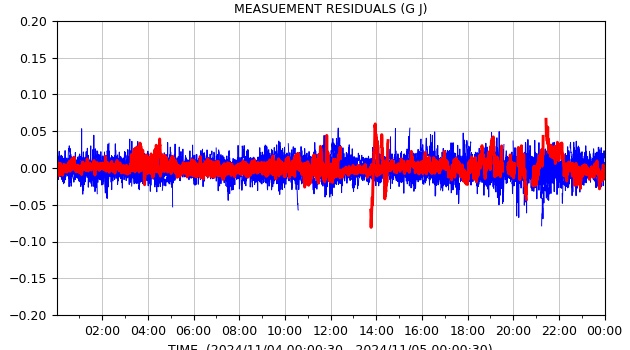

MGRT1/MGRT2 (2024-11-04, DOY=1, 2339-309)
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2024/11/04 00:00:00-2024/11/05 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2024/11/04 00:00:00-2024/11/05 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2024/11/04 00:00:00-2024/11/05 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |

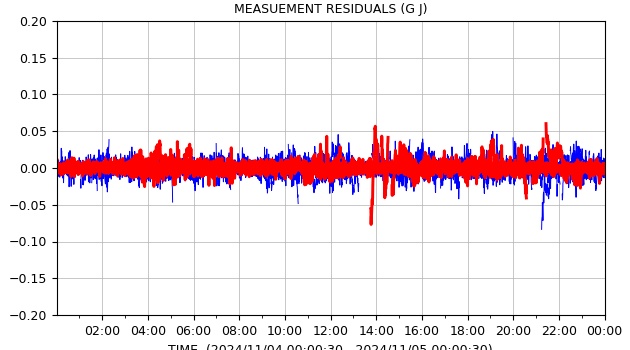

JXU (2024-11-04, DOY=1, 2339-309)
| TIME(2024/11/04 00:00:00-2024/11/05 00:00:00) | |
| |
| TIME(2024/11/04 06:00:00-2024/11/05 06:00:00) | |
| |
| TIME(2024/11/04 12:00:00-2024/11/05 12:00:00) | |
| |
| TIME(2024/11/04 18:00:00-2024/11/05 18:00:00) | |
| |
| TIME(2024/11/04 00:00:00-2024/11/05 00:00:00) | |
| |
| TIME(2024/11/04 06:00:00-2024/11/05 06:00:00) | |
| |
| TIME(2024/11/04 12:00:00-2024/11/05 12:00:00) | |
| |
| TIME(2024/11/04 18:00:00-2024/11/05 18:00:00) | |
| |
| TIME(2024/11/04 00:00:00-2024/11/05 00:00:00) | |
| |
| TIME(2024/11/04 06:00:00-2024/11/05 06:00:00) | |
| |
| TIME(2024/11/04 12:00:00-2024/11/05 12:00:00) | |
| |
| TIME(2024/11/04 18:00:00-2024/11/05 18:00:00) | |
| |
JXR (2024-11-04, DOY=1, 2339-309)
| TIME(2024/11/04 00:00:00-2024/11/05 00:00:00) | |
| |
| TIME(2024/11/04 00:00:00-2024/11/05 00:00:00) | |
| |
| TIME(2024/11/04 00:00:00-2024/11/05 00:00:00) | |
| |
JXF (2024-11-04, DOY=1, 2339-309)
| TIME(2024/11/04 00:00:00-2024/11/05 00:00:00) | |
| |
| TIME(2024/11/04 00:00:00-2024/11/05 00:00:00) | |
| |
| TIME(2024/11/04 00:00:00-2024/11/05 00:00:00) | |
| |
| update: 2024-11-06 18:36:16 UTC |
| The products are for test and evaluation purpose only. |
