Contents:
-Result Statistics
-Residuals(MGRT1,MGRT2
MGU,MGR,MGF
| MGRT Station: | SIN10 TSK2 PERT0 | |
| JXU Station: | SIN10 TSK2 PERT0 | |
| JXR Station: | SIN10 TSK2 PERT0 | |
| JXF Station: | SIN10 TSK2 PERT0 |
2024-11-20, DOY=3, 2341-325
Result Statistics ↑
MGRT1/MGRT2
| Station | Product | Real Time PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | MGRT1 | - | - | - | 0.0000 | 0.0123 | 0.0123 | - | - | - |
| SIN10 | MGRT2 | - | - | - | 0.0000 | 0.0117 | 0.0117 | - | - | - |
| TSK2 | MGRT1 | -0.0002 | 0.0061 | 0.0061 | 0.0001 | 0.0099 | 0.0099 | - | - | - |
| TSK2 | MGRT2 | -0.0002 | 0.0067 | 0.0067 | 0.0001 | 0.0085 | 0.0085 | - | - | - |
| PERT0 | MGRT1 | 0.0005 | 0.0087 | 0.0088 | -0.0001 | 0.0110 | 0.0110 | - | - | - |
| PERT0 | MGRT2 | 0.0005 | 0.0091 | 0.0091 | -0.0001 | 0.0110 | 0.0110 | - | - | - |
JXU
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxu23413_18 | - | - | - | 0.0000 | 0.0092 | 0.0092 | - | - | - |
| SIN10 | jxu23413_12 | - | - | - | 0.0000 | 0.0090 | 0.0090 | - | - | - |
| SIN10 | jxu23413_06 | - | - | - | 0.0000 | 0.0099 | 0.0099 | - | - | - |
| SIN10 | jxu23413_00 | - | - | - | 0.0000 | 0.0098 | 0.0098 | - | - | - |
| TSK2 | jxu23413_18 | 0.0000 | 0.0050 | 0.0050 | 0.0000 | 0.0054 | 0.0054 | - | - | - |
| TSK2 | jxu23413_12 | 0.0000 | 0.0051 | 0.0051 | -0.0000 | 0.0055 | 0.0055 | - | - | - |
| TSK2 | jxu23413_06 | 0.0000 | 0.0053 | 0.0053 | -0.0000 | 0.0054 | 0.0055 | - | - | - |
| TSK2 | jxu23413_00 | 0.0001 | 0.0052 | 0.0052 | -0.0000 | 0.0054 | 0.0054 | - | - | - |
| PERT0 | jxu23413_18 | 0.0003 | 0.0078 | 0.0078 | -0.0001 | 0.0083 | 0.0084 | - | - | - |
| PERT0 | jxu23413_12 | 0.0003 | 0.0081 | 0.0081 | -0.0001 | 0.0086 | 0.0087 | - | - | - |
| PERT0 | jxu23413_06 | 0.0003 | 0.0087 | 0.0087 | -0.0001 | 0.0098 | 0.0098 | - | - | - |
| PERT0 | jxu23413_00 | 0.0002 | 0.0087 | 0.0088 | -0.0001 | 0.0101 | 0.0101 | - | - | - |
JXR
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxr23413 | - | - | - | 0.0000 | 0.0094 | 0.0094 | - | - | - |
| TSK2 | jxr23413 | 0.0001 | 0.0049 | 0.0049 | -0.0000 | 0.0054 | 0.0054 | - | - | - |
| PERT0 | jxr23413 | 0.0002 | 0.0073 | 0.0073 | -0.0001 | 0.0083 | 0.0083 | - | - | - |
JXF
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxf23413 | - | - | - | - | - | - | - | - | - |
| TSK2 | jxf23413 | - | - | - | - | - | - | - | - | - |
| PERT0 | jxf23413 | - | - | - | - | - | - | - | - | - |

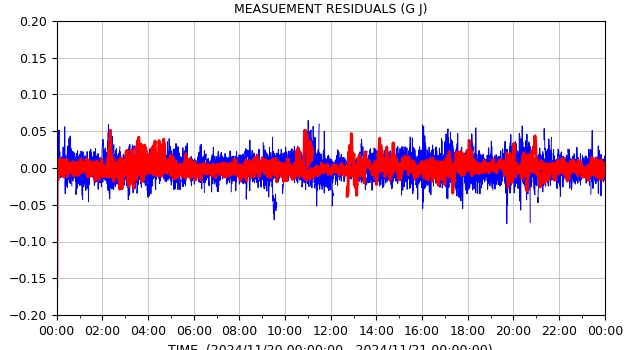

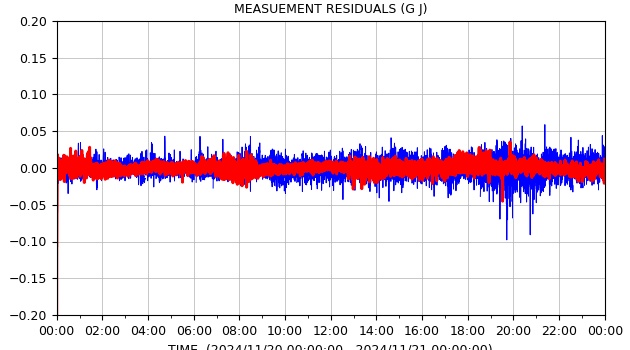

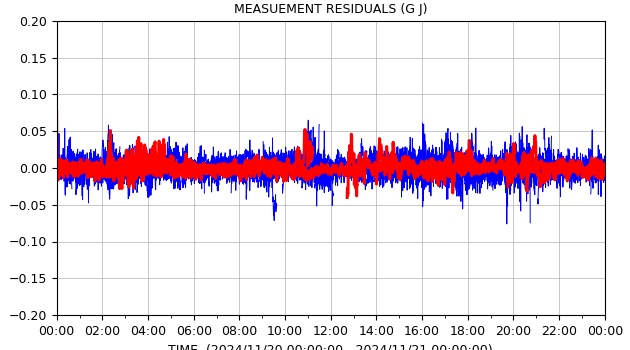

MGRT1/MGRT2 (2024-11-20, DOY=3, 2341-325)
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2024/11/20 00:00:00-2024/11/21 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2024/11/20 00:00:00-2024/11/21 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2024/11/20 00:00:00-2024/11/21 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
JXU (2024-11-20, DOY=3, 2341-325)
| TIME(2024/11/20 00:00:00-2024/11/21 00:00:00) | |
| |
| TIME(2024/11/20 06:00:00-2024/11/21 06:00:00) | |
| |
| TIME(2024/11/20 12:00:00-2024/11/21 12:00:00) | |
| |
| TIME(2024/11/20 18:00:00-2024/11/21 18:00:00) | |
| |
| TIME(2024/11/20 00:00:00-2024/11/21 00:00:00) | |
| |
| TIME(2024/11/20 06:00:00-2024/11/21 06:00:00) | |
| |
| TIME(2024/11/20 12:00:00-2024/11/21 12:00:00) | |
| |
| TIME(2024/11/20 18:00:00-2024/11/21 18:00:00) | |
| |
| TIME(2024/11/20 00:00:00-2024/11/21 00:00:00) | |
| |
| TIME(2024/11/20 06:00:00-2024/11/21 06:00:00) | |
| |
| TIME(2024/11/20 12:00:00-2024/11/21 12:00:00) | |
| |
| TIME(2024/11/20 18:00:00-2024/11/21 18:00:00) | |
| |
JXR (2024-11-20, DOY=3, 2341-325)
| TIME(2024/11/20 00:00:00-2024/11/21 00:00:00) | |
| |
| TIME(2024/11/20 00:00:00-2024/11/21 00:00:00) | |
| |
| TIME(2024/11/20 00:00:00-2024/11/21 00:00:00) | |
| |
JXF (2024-11-20, DOY=3, 2341-325)
| update: 2024-11-21 12:37:27 UTC |
| The products are for test and evaluation purpose only. |
