Contents:
-Result Statistics
-Residuals(MGRT1,MGRT2
MGU,MGR,MGF
| MGRT Station: | SIN10 TSK2 PERT0 | |
| JXU Station: | SIN10 TSK2 PERT0 | |
| JXR Station: | SIN10 TSK2 PERT0 | |
| JXF Station: | SIN10 TSK2 PERT0 |
2025-03-07, DOY=5, 2356-066
Result Statistics ↑
MGRT1/MGRT2
| Station | Product | Real Time PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | MGRT1 | -0.0001 | 0.0111 | 0.0111 | 0.0000 | 0.0121 | 0.0121 | - | - | - |
| SIN10 | MGRT2 | -0.0001 | 0.0099 | 0.0099 | 0.0001 | 0.0114 | 0.0114 | - | - | - |
| TSK2 | MGRT1 | -0.0005 | 0.0112 | 0.0112 | 0.0002 | 0.0117 | 0.0117 | - | - | - |
| TSK2 | MGRT2 | 0.0002 | 0.0075 | 0.0075 | -0.0001 | 0.0098 | 0.0098 | - | - | - |
| PERT0 | MGRT1 | 0.0007 | 0.0129 | 0.0129 | -0.0002 | 0.0133 | 0.0134 | - | - | - |
| PERT0 | MGRT2 | 0.0004 | 0.0114 | 0.0114 | -0.0001 | 0.0114 | 0.0114 | - | - | - |
JXU
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxu23565_18 | -0.0000 | 0.0084 | 0.0084 | 0.0000 | 0.0094 | 0.0094 | - | - | - |
| SIN10 | jxu23565_12 | -0.0000 | 0.0084 | 0.0084 | 0.0000 | 0.0093 | 0.0093 | - | - | - |
| SIN10 | jxu23565_06 | -0.0000 | 0.0083 | 0.0083 | 0.0000 | 0.0094 | 0.0094 | - | - | - |
| SIN10 | jxu23565_00 | -0.0001 | 0.0082 | 0.0082 | 0.0000 | 0.0097 | 0.0097 | - | - | - |
| TSK2 | jxu23565_18 | -0.0000 | 0.0052 | 0.0052 | 0.0000 | 0.0055 | 0.0055 | - | - | - |
| TSK2 | jxu23565_12 | -0.0000 | 0.0052 | 0.0052 | 0.0000 | 0.0054 | 0.0054 | - | - | - |
| TSK2 | jxu23565_06 | -0.0001 | 0.0052 | 0.0052 | 0.0000 | 0.0053 | 0.0053 | - | - | - |
| TSK2 | jxu23565_00 | -0.0001 | 0.0051 | 0.0051 | 0.0000 | 0.0052 | 0.0052 | - | - | - |
| PERT0 | jxu23565_18 | 0.0003 | 0.0080 | 0.0080 | -0.0002 | 0.0082 | 0.0082 | - | - | - |
| PERT0 | jxu23565_12 | 0.0003 | 0.0078 | 0.0078 | -0.0002 | 0.0079 | 0.0079 | - | - | - |
| PERT0 | jxu23565_06 | 0.0002 | 0.0071 | 0.0071 | -0.0001 | 0.0078 | 0.0079 | - | - | - |
| PERT0 | jxu23565_00 | 0.0003 | 0.0076 | 0.0076 | -0.0001 | 0.0077 | 0.0078 | - | - | - |
JXR
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxr23565 | -0.0000 | 0.0083 | 0.0083 | 0.0000 | 0.0097 | 0.0097 | - | - | - |
| TSK2 | jxr23565 | -0.0000 | 0.0052 | 0.0052 | 0.0000 | 0.0055 | 0.0055 | - | - | - |
| PERT0 | jxr23565 | 0.0004 | 0.0082 | 0.0082 | -0.0002 | 0.0084 | 0.0084 | - | - | - |
JXF
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxf23565 | -0.0000 | 0.0082 | 0.0082 | 0.0000 | 0.0096 | 0.0096 | - | - | - |
| TSK2 | jxf23565 | -0.0000 | 0.0052 | 0.0052 | 0.0000 | 0.0054 | 0.0055 | - | - | - |
| PERT0 | jxf23565 | 0.0004 | 0.0084 | 0.0084 | -0.0002 | 0.0085 | 0.0085 | - | - | - |

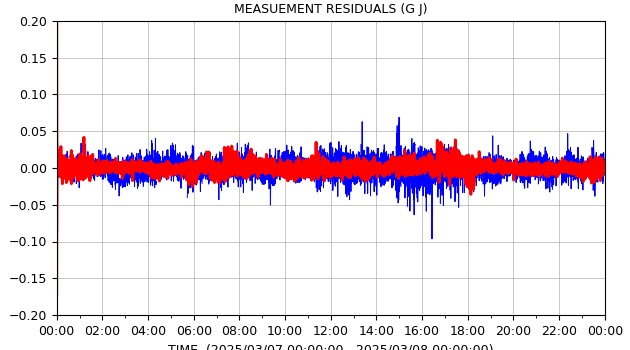

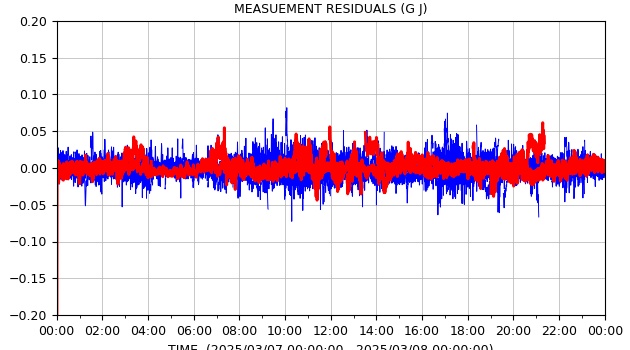

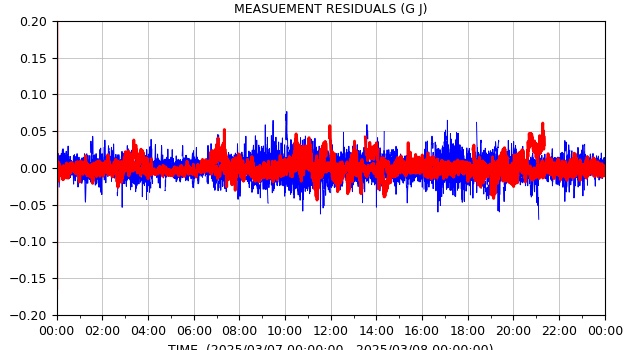

MGRT1/MGRT2 (2025-03-07, DOY=5, 2356-066)
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2025/03/07 00:00:00-2025/03/08 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2025/03/07 00:00:00-2025/03/08 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2025/03/07 00:00:00-2025/03/08 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
JXU (2025-03-07, DOY=5, 2356-066)
| TIME(2025/03/07 00:00:00-2025/03/08 00:00:00) | |
| |
| TIME(2025/03/07 06:00:00-2025/03/08 06:00:00) | |
| |
| TIME(2025/03/07 12:00:00-2025/03/08 12:00:00) | |
| |
| TIME(2025/03/07 18:00:00-2025/03/08 18:00:00) | |
| |
| TIME(2025/03/07 00:00:00-2025/03/08 00:00:00) | |
| |
| TIME(2025/03/07 06:00:00-2025/03/08 06:00:00) | |
| |
| TIME(2025/03/07 12:00:00-2025/03/08 12:00:00) | |
| |
| TIME(2025/03/07 18:00:00-2025/03/08 18:00:00) | |
| |
| TIME(2025/03/07 00:00:00-2025/03/08 00:00:00) | |
| |
| TIME(2025/03/07 06:00:00-2025/03/08 06:00:00) | |
| |
| TIME(2025/03/07 12:00:00-2025/03/08 12:00:00) | |
| |
| TIME(2025/03/07 18:00:00-2025/03/08 18:00:00) | |
| |
JXR (2025-03-07, DOY=5, 2356-066)
| TIME(2025/03/07 00:00:00-2025/03/08 00:00:00) | |
| |
| TIME(2025/03/07 00:00:00-2025/03/08 00:00:00) | |
| |
| TIME(2025/03/07 00:00:00-2025/03/08 00:00:00) | |
| |
JXF (2025-03-07, DOY=5, 2356-066)
| TIME(2025/03/07 00:00:00-2025/03/08 00:00:00) | |
| |
| TIME(2025/03/07 00:00:00-2025/03/08 00:00:00) | |
| |
| TIME(2025/03/07 00:00:00-2025/03/08 00:00:00) | |
| |
| update: 2025-03-09 17:13:26 UTC |
| The products are for test and evaluation purpose only. |
