Contents:
-Result Statistics
-Residuals(MGRT1,MGRT2
MGU,MGR,MGF
| MGRT Station: | SIN10 TSK2 PERT0 | |
| JXU Station: | SIN10 TSK2 PERT0 | |
| JXR Station: | SIN10 TSK2 PERT0 | |
| JXF Station: | SIN10 TSK2 PERT0 |
2025-03-08, DOY=6, 2356-067
Result Statistics ↑
MGRT1/MGRT2
| Station | Product | Real Time PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | MGRT1 | 0.0001 | 0.0107 | 0.0107 | -0.0000 | 0.0142 | 0.0142 | - | - | - |
| SIN10 | MGRT2 | -0.0000 | 0.0133 | 0.0133 | 0.0000 | 0.0126 | 0.0126 | - | - | - |
| TSK2 | MGRT1 | -0.0007 | 0.0087 | 0.0088 | 0.0003 | 0.0129 | 0.0130 | - | - | - |
| TSK2 | MGRT2 | -0.0002 | 0.0083 | 0.0084 | 0.0001 | 0.0096 | 0.0097 | - | - | - |
| PERT0 | MGRT1 | 0.0005 | 0.0102 | 0.0102 | -0.0001 | 0.0126 | 0.0126 | - | - | - |
| PERT0 | MGRT2 | 0.0004 | 0.0114 | 0.0114 | -0.0001 | 0.0114 | 0.0115 | - | - | - |
JXU
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxu23566_18 | -0.0000 | 0.0089 | 0.0089 | 0.0000 | 0.0112 | 0.0112 | - | - | - |
| SIN10 | jxu23566_12 | -0.0000 | 0.0088 | 0.0088 | 0.0000 | 0.0112 | 0.0112 | - | - | - |
| SIN10 | jxu23566_06 | -0.0000 | 0.0079 | 0.0079 | 0.0000 | 0.0098 | 0.0098 | - | - | - |
| SIN10 | jxu23566_00 | -0.0000 | 0.0080 | 0.0080 | 0.0000 | 0.0094 | 0.0094 | - | - | - |
| TSK2 | jxu23566_18 | -0.0001 | 0.0052 | 0.0052 | 0.0001 | 0.0054 | 0.0055 | - | - | - |
| TSK2 | jxu23566_12 | -0.0000 | 0.0051 | 0.0051 | 0.0000 | 0.0053 | 0.0053 | - | - | - |
| TSK2 | jxu23566_06 | -0.0000 | 0.0052 | 0.0052 | 0.0000 | 0.0053 | 0.0053 | - | - | - |
| TSK2 | jxu23566_00 | -0.0000 | 0.0052 | 0.0052 | 0.0000 | 0.0055 | 0.0055 | - | - | - |
| PERT0 | jxu23566_18 | 0.0003 | 0.0083 | 0.0083 | -0.0001 | 0.0085 | 0.0085 | - | - | - |
| PERT0 | jxu23566_12 | 0.0003 | 0.0085 | 0.0085 | -0.0001 | 0.0087 | 0.0087 | - | - | - |
| PERT0 | jxu23566_06 | 0.0003 | 0.0084 | 0.0084 | -0.0001 | 0.0087 | 0.0087 | - | - | - |
| PERT0 | jxu23566_00 | 0.0003 | 0.0082 | 0.0082 | -0.0002 | 0.0083 | 0.0083 | - | - | - |
JXR
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxr23566 | -0.0000 | 0.0095 | 0.0095 | 0.0000 | 0.0114 | 0.0114 | - | - | - |
| TSK2 | jxr23566 | -0.0001 | 0.0052 | 0.0052 | 0.0001 | 0.0053 | 0.0054 | - | - | - |
| PERT0 | jxr23566 | 0.0003 | 0.0082 | 0.0082 | -0.0002 | 0.0084 | 0.0084 | - | - | - |
JXF
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxf23566 | -0.0000 | 0.0096 | 0.0096 | 0.0000 | 0.0114 | 0.0114 | - | - | - |
| TSK2 | jxf23566 | -0.0001 | 0.0051 | 0.0051 | 0.0001 | 0.0053 | 0.0053 | - | - | - |
| PERT0 | jxf23566 | 0.0003 | 0.0083 | 0.0083 | -0.0001 | 0.0085 | 0.0085 | - | - | - |
MGRT1/MGRT2 (2025-03-08, DOY=6, 2356-067)
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2025/03/08 00:00:00-2025/03/09 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |

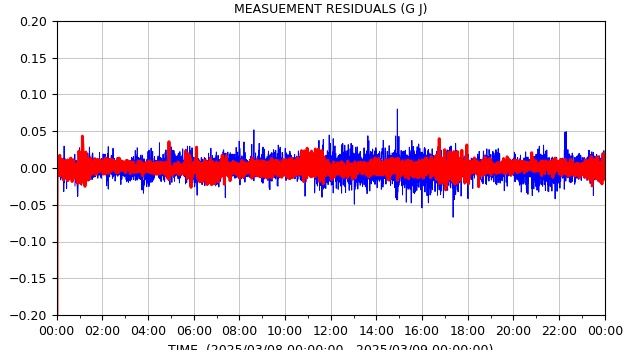

| MADOCA_SSR1 Real Time Residuals | |
| TIME(2025/03/08 00:00:00-2025/03/09 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |

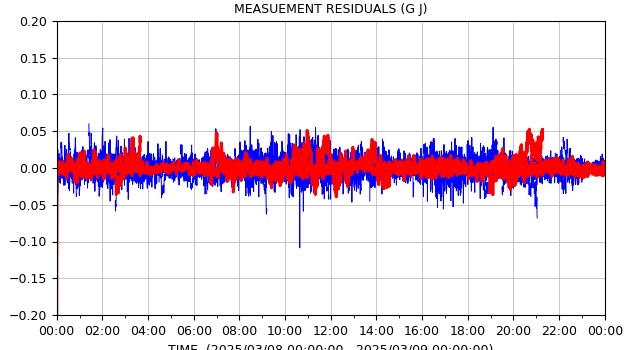

| MADOCA_SSR1 Real Time Residuals | |
| TIME(2025/03/08 00:00:00-2025/03/09 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
JXU (2025-03-08, DOY=6, 2356-067)
| TIME(2025/03/08 00:00:00-2025/03/09 00:00:00) | |
| |
| TIME(2025/03/08 06:00:00-2025/03/09 06:00:00) | |
| |
| TIME(2025/03/08 12:00:00-2025/03/09 12:00:00) | |
| |
| TIME(2025/03/08 18:00:00-2025/03/09 18:00:00) | |
| |
| TIME(2025/03/08 00:00:00-2025/03/09 00:00:00) | |
| |
| TIME(2025/03/08 06:00:00-2025/03/09 06:00:00) | |
| |
| TIME(2025/03/08 12:00:00-2025/03/09 12:00:00) | |
| |
| TIME(2025/03/08 18:00:00-2025/03/09 18:00:00) | |
| |
| TIME(2025/03/08 00:00:00-2025/03/09 00:00:00) | |
| |
| TIME(2025/03/08 06:00:00-2025/03/09 06:00:00) | |
| |
| TIME(2025/03/08 12:00:00-2025/03/09 12:00:00) | |
| |
| TIME(2025/03/08 18:00:00-2025/03/09 18:00:00) | |
| |
JXR (2025-03-08, DOY=6, 2356-067)
| TIME(2025/03/08 00:00:00-2025/03/09 00:00:00) | |
| |
| TIME(2025/03/08 00:00:00-2025/03/09 00:00:00) | |
| |
| TIME(2025/03/08 00:00:00-2025/03/09 00:00:00) | |
| |
JXF (2025-03-08, DOY=6, 2356-067)
| TIME(2025/03/08 00:00:00-2025/03/09 00:00:00) | |
| |
| TIME(2025/03/08 00:00:00-2025/03/09 00:00:00) | |
| |
| TIME(2025/03/08 00:00:00-2025/03/09 00:00:00) | |
| |
| update: 2025-03-10 17:08:14 UTC |
| The products are for test and evaluation purpose only. |
