Contents:
-Result Statistics
-Residuals(MGRT1,MGRT2
MGU,MGR,MGF
| MGRT Station: | SIN10 TSK2 PERT0 | |
| JXU Station: | SIN10 TSK2 PERT0 | |
| JXR Station: | SIN10 TSK2 PERT0 | |
| JXF Station: | SIN10 TSK2 PERT0 |
2025-06-07, DOY=6, 2369-158
Result Statistics ↑
MGRT1/MGRT2
| Station | Product | Real Time PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | MGRT1 | 0.0000 | 0.0118 | 0.0118 | 0.0000 | 0.0126 | 0.0126 | - | - | - |
| SIN10 | MGRT2 | 0.0000 | 0.0098 | 0.0098 | 0.0000 | 0.0118 | 0.0118 | - | - | - |
| TSK2 | MGRT1 | 0.0003 | 0.0079 | 0.0079 | -0.0001 | 0.0087 | 0.0087 | - | - | - |
| TSK2 | MGRT2 | 0.0002 | 0.0077 | 0.0077 | -0.0001 | 0.0094 | 0.0095 | - | - | - |
| PERT0 | MGRT1 | 0.0004 | 0.0100 | 0.0100 | -0.0002 | 0.0114 | 0.0115 | - | - | - |
| PERT0 | MGRT2 | 0.0005 | 0.0103 | 0.0103 | -0.0002 | 0.0102 | 0.0102 | - | - | - |
JXU
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxu23696_18 | 0.0000 | 0.0084 | 0.0084 | 0.0000 | 0.0100 | 0.0100 | - | - | - |
| SIN10 | jxu23696_12 | -0.0000 | 0.0083 | 0.0083 | 0.0000 | 0.0097 | 0.0097 | - | - | - |
| SIN10 | jxu23696_06 | 0.0000 | 0.0082 | 0.0082 | 0.0000 | 0.0097 | 0.0097 | - | - | - |
| SIN10 | jxu23696_00 | 0.0000 | 0.0082 | 0.0082 | 0.0000 | 0.0099 | 0.0099 | - | - | - |
| TSK2 | jxu23696_18 | -0.0002 | 0.0067 | 0.0067 | 0.0001 | 0.0089 | 0.0090 | - | - | - |
| TSK2 | jxu23696_12 | -0.0001 | 0.0073 | 0.0073 | 0.0001 | 0.0090 | 0.0091 | - | - | - |
| TSK2 | jxu23696_06 | -0.0001 | 0.0074 | 0.0074 | 0.0000 | 0.0093 | 0.0093 | - | - | - |
| TSK2 | jxu23696_00 | 0.0001 | 0.0076 | 0.0076 | -0.0000 | 0.0094 | 0.0094 | - | - | - |
| PERT0 | jxu23696_18 | 0.0004 | 0.0084 | 0.0085 | -0.0002 | 0.0077 | 0.0077 | - | - | - |
| PERT0 | jxu23696_12 | 0.0003 | 0.0087 | 0.0087 | -0.0001 | 0.0078 | 0.0078 | - | - | - |
| PERT0 | jxu23696_06 | 0.0003 | 0.0085 | 0.0085 | -0.0002 | 0.0075 | 0.0076 | - | - | - |
| PERT0 | jxu23696_00 | 0.0004 | 0.0084 | 0.0084 | -0.0002 | 0.0077 | 0.0077 | - | - | - |
JXR
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxr23696 | 0.0000 | 0.0083 | 0.0083 | 0.0000 | 0.0104 | 0.0104 | - | - | - |
| TSK2 | jxr23696 | -0.0001 | 0.0057 | 0.0057 | 0.0000 | 0.0068 | 0.0068 | - | - | - |
| PERT0 | jxr23696 | 0.0004 | 0.0083 | 0.0083 | -0.0002 | 0.0076 | 0.0076 | - | - | - |
JXF
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxf23696 | 0.0000 | 0.0083 | 0.0083 | 0.0000 | 0.0104 | 0.0104 | - | - | - |
| TSK2 | jxf23696 | -0.0001 | 0.0057 | 0.0057 | 0.0001 | 0.0068 | 0.0068 | - | - | - |
| PERT0 | jxf23696 | 0.0004 | 0.0082 | 0.0083 | -0.0002 | 0.0076 | 0.0076 | - | - | - |
MGRT1/MGRT2 (2025-06-07, DOY=6, 2369-158)
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2025/06/07 00:00:00-2025/06/08 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2025/06/07 00:00:00-2025/06/08 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2025/06/07 00:00:00-2025/06/08 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
|
| |

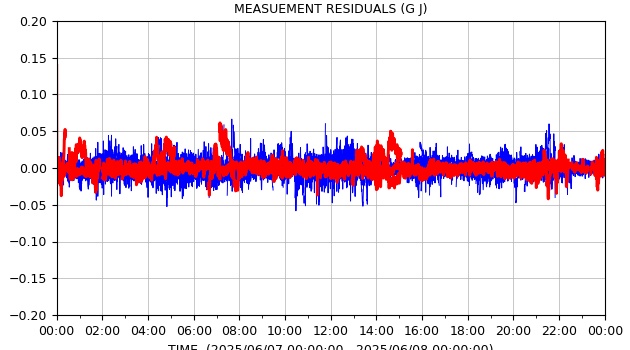

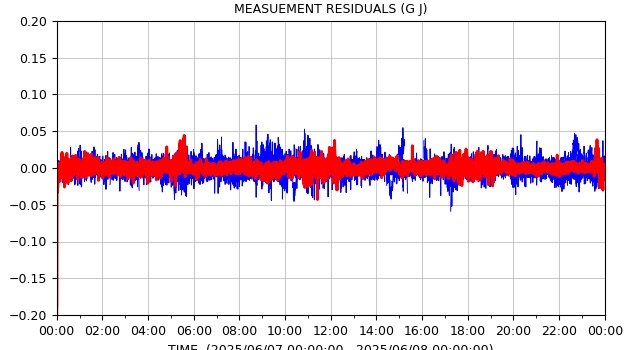

JXU (2025-06-07, DOY=6, 2369-158)
| TIME(2025/06/07 00:00:00-2025/06/08 00:00:00) | |
| |
| TIME(2025/06/07 06:00:00-2025/06/08 06:00:00) | |
| |
| TIME(2025/06/07 12:00:00-2025/06/08 12:00:00) | |
| |
| TIME(2025/06/07 18:00:00-2025/06/08 18:00:00) | |
| |
| TIME(2025/06/07 00:00:00-2025/06/08 00:00:00) | |
| |
| TIME(2025/06/07 06:00:00-2025/06/08 06:00:00) | |
| |
| TIME(2025/06/07 12:00:00-2025/06/08 12:00:00) | |
| |
| TIME(2025/06/07 18:00:00-2025/06/08 18:00:00) | |
| |
| TIME(2025/06/07 00:00:00-2025/06/08 00:00:00) | |
| |
| TIME(2025/06/07 06:00:00-2025/06/08 06:00:00) | |
| |
| TIME(2025/06/07 12:00:00-2025/06/08 12:00:00) | |
| |
| TIME(2025/06/07 18:00:00-2025/06/08 18:00:00) | |
| |
JXR (2025-06-07, DOY=6, 2369-158)
| TIME(2025/06/07 00:00:00-2025/06/08 00:00:00) | |
| |
| TIME(2025/06/07 00:00:00-2025/06/08 00:00:00) | |
| |
| TIME(2025/06/07 00:00:00-2025/06/08 00:00:00) | |
| |
JXF (2025-06-07, DOY=6, 2369-158)
| TIME(2025/06/07 00:00:00-2025/06/08 00:00:00) | |
| |
| TIME(2025/06/07 00:00:00-2025/06/08 00:00:00) | |
| |
| TIME(2025/06/07 00:00:00-2025/06/08 00:00:00) | |
| |
| update: 2025-06-09 16:57:19 UTC |
| The products are for test and evaluation purpose only. |
