Contents:
-Result Statistics
-Residuals(MGRT1,MGRT2
MGU,MGR,MGF
| MGRT Station: | SIN10 TSK2 PERT0 | |
| JXU Station: | SIN10 TSK2 PERT0 | |
| JXR Station: | SIN10 TSK2 PERT0 | |
| JXF Station: | SIN10 TSK2 PERT0 |
2025-11-23, DOY=0, 2394-327
Result Statistics ↑
MGRT1/MGRT2
| Station | Product | Real Time PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | MGRT1 | -0.0001 | 0.0105 | 0.0105 | 0.0001 | 0.0139 | 0.0139 | - | - | - |
| SIN10 | mgrt223940 | - | - | - | - | - | - | - | - | - |
| TSK2 | MGRT1 | -0.0001 | 0.0103 | 0.0103 | 0.0000 | 0.0106 | 0.0107 | - | - | - |
| TSK2 | mgrt223940 | - | - | - | - | - | - | - | - | - |
| PERT0 | MGRT1 | 0.0000 | 0.0152 | 0.0152 | -0.0000 | 0.0150 | 0.0151 | - | - | - |
| PERT0 | mgrt223940 | - | - | - | - | - | - | - | - | - |
JXU
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxu23940_18 | -0.0001 | 0.0090 | 0.0090 | 0.0001 | 0.0115 | 0.0115 | - | - | - |
| SIN10 | jxu23940_12 | -0.0001 | 0.0087 | 0.0087 | 0.0000 | 0.0112 | 0.0112 | - | - | - |
| SIN10 | jxu23940_06 | -0.0001 | 0.0088 | 0.0088 | 0.0000 | 0.0111 | 0.0111 | - | - | - |
| SIN10 | jxu23940_00 | -0.0001 | 0.0087 | 0.0087 | 0.0000 | 0.0110 | 0.0110 | - | - | - |
| TSK2 | jxu23940_18 | -0.0001 | 0.0066 | 0.0066 | 0.0000 | 0.0066 | 0.0066 | - | - | - |
| TSK2 | jxu23940_12 | 0.0002 | 0.0059 | 0.0059 | -0.0001 | 0.0066 | 0.0067 | - | - | - |
| TSK2 | jxu23940_06 | 0.0001 | 0.0068 | 0.0068 | -0.0000 | 0.0079 | 0.0079 | - | - | - |
| TSK2 | jxu23940_00 | 0.0000 | 0.0060 | 0.0060 | -0.0000 | 0.0077 | 0.0077 | - | - | - |
| PERT0 | jxu23940_18 | 0.0002 | 0.0100 | 0.0100 | -0.0001 | 0.0103 | 0.0103 | - | - | - |
| PERT0 | jxu23940_12 | 0.0003 | 0.0099 | 0.0099 | -0.0001 | 0.0110 | 0.0111 | - | - | - |
| PERT0 | jxu23940_06 | 0.0004 | 0.0098 | 0.0098 | -0.0001 | 0.0105 | 0.0105 | - | - | - |
| PERT0 | jxu23940_00 | 0.0003 | 0.0092 | 0.0093 | -0.0001 | 0.0103 | 0.0104 | - | - | - |
JXR
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxr23940 | -0.0001 | 0.0090 | 0.0090 | 0.0000 | 0.0115 | 0.0115 | - | - | - |
| TSK2 | jxr23940 | 0.0000 | 0.0049 | 0.0049 | -0.0000 | 0.0055 | 0.0055 | - | - | - |
| PERT0 | jxr23940 | 0.0001 | 0.0094 | 0.0094 | -0.0001 | 0.0100 | 0.0100 | - | - | - |
JXF
| Station | Product | Post Process PPP Residuals Result(m) | ||||||||
| QZSS | GPS | GLONASS | ||||||||
| AVE | STD | RMS | AVE | STD | RMS | AVE | STD | RMS | ||
| SIN10 | jxf23940 | -0.0001 | 0.0089 | 0.0090 | 0.0001 | 0.0115 | 0.0115 | - | - | - |
| TSK2 | jxf23940 | -0.0001 | 0.0049 | 0.0049 | 0.0000 | 0.0055 | 0.0055 | - | - | - |
| PERT0 | jxf23940 | 0.0001 | 0.0094 | 0.0094 | -0.0000 | 0.0100 | 0.0100 | - | - | - |
MGRT1/MGRT2 (2025-11-23, DOY=0, 2394-327)
| MADOCA_SSR1 Real Time Residuals | |
| TIME(2025/11/23 00:00:00-2025/11/24 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |

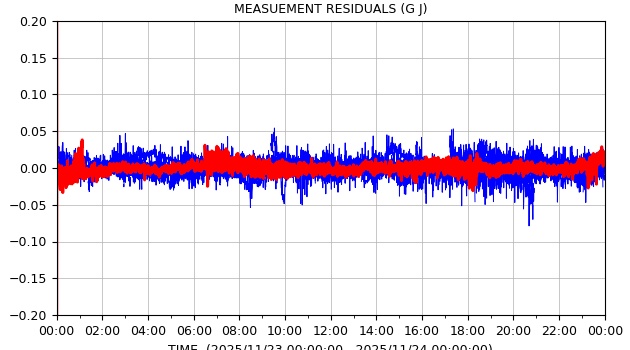

| MADOCA_SSR1 Real Time Residuals | |
| TIME(2025/11/23 00:00:00-2025/11/24 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |

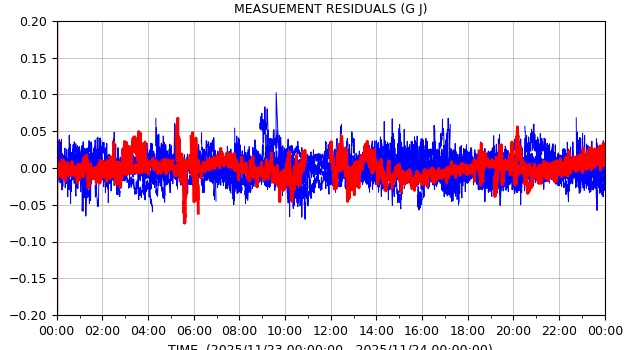

| MADOCA_SSR1 Real Time Residuals | |
| TIME(2025/11/23 00:00:00-2025/11/24 00:00:00) | |
|
| |
| MADOCA_SSR2 Real Time Residuals | |
JXU (2025-11-23, DOY=0, 2394-327)
| TIME(2025/11/23 00:00:00-2025/11/24 00:00:00) | |
| |
| TIME(2025/11/23 06:00:00-2025/11/24 06:00:00) | |
| |
| TIME(2025/11/23 12:00:00-2025/11/24 12:00:00) | |
| |
| TIME(2025/11/23 18:00:00-2025/11/24 18:00:00) | |
| |
| TIME(2025/11/23 00:00:00-2025/11/24 00:00:00) | |
| |
| TIME(2025/11/23 06:00:00-2025/11/24 06:00:00) | |
| |
| TIME(2025/11/23 12:00:00-2025/11/24 12:00:00) | |
| |
| TIME(2025/11/23 18:00:00-2025/11/24 18:00:00) | |
| |
| TIME(2025/11/23 00:00:00-2025/11/24 00:00:00) | |
| |
| TIME(2025/11/23 06:00:00-2025/11/24 06:00:00) | |
| |
| TIME(2025/11/23 12:00:00-2025/11/24 12:00:00) | |
| |
| TIME(2025/11/23 18:00:00-2025/11/24 18:00:00) | |
| |
JXR (2025-11-23, DOY=0, 2394-327)
| TIME(2025/11/23 00:00:00-2025/11/24 00:00:00) | |
| |
| TIME(2025/11/23 00:00:00-2025/11/24 00:00:00) | |
| |
| TIME(2025/11/23 00:00:00-2025/11/24 00:00:00) | |
| |
JXF (2025-11-23, DOY=0, 2394-327)
| TIME(2025/11/23 00:00:00-2025/11/24 00:00:00) | |
| |
| TIME(2025/11/23 00:00:00-2025/11/24 00:00:00) | |
| |
| TIME(2025/11/23 00:00:00-2025/11/24 00:00:00) | |
| |
| update: 2025-11-25 16:33:50 UTC |
| The products are for test and evaluation purpose only. |
