MADOCA: PPP-AR Monitor

Current PPP-AR Result

Contents:
-Result Statistics
-Data Availability
-Station Position
-Time Series/Horizontal Plots
Station: AIRA SIN10 MAYG0 MAO00 LMMF7 TSK2 UCAL0 PERT0 WTZR0 XMIS0

2025-11-29, DOY=333, 2394-6

Result Statistics ↑

top

Station	Product	Type	Real Time Kinematic PPP-AR Result(m)
			AVE			STD			RMS
			E	N	U	E	N	U	E	N	U	D
AIRA	MGRT1	PPP-AR	0.0048	-0.0201	0.0050	0.0336	0.0201	0.0628	0.0339	0.0284	0.0630	0.0443
	MGRT1	PPP	-0.0064	-0.0214	0.0105	0.0319	0.0197	0.0521	0.0325	0.0291	0.0532	0.0436
	MGRT2	PPP-AR	-	-	-	-	-	-	-	-	-	-
	MGRT2	PPP	-	-	-	-	-	-	-	-	-	-
SIN10	MGRT1	PPP-AR	0.0369	-0.0002	-0.0017	0.0940	0.0958	0.2344	0.1010	0.0958	0.2344	0.1392
	MGRT1	PPP	0.3138	0.0387	0.4685	0.1726	0.1293	0.2307	0.3582	0.1350	0.5222	0.3828
	MGRT2	PPP-AR	-	-	-	-	-	-	-	-	-	-
	MGRT2	PPP	-	-	-	-	-	-	-	-	-	-
MAYG0	MGRT1	PPP-AR	-	-	-	-	-	-	-	-	-	-
	MGRT1	PPP	-	-	-	-	-	-	-	-	-	-
	MGRT2	PPP-AR	-	-	-	-	-	-	-	-	-	-
	MGRT2	PPP	-	-	-	-	-	-	-	-	-	-
MAO00	MGRT1	PPP-AR	0.0276	-0.0190	0.0034	0.2101	0.2143	0.2898	0.2119	0.2151	0.2898	0.3020
	MGRT1	PPP	0.2289	0.0498	0.2370	0.2677	0.1132	0.3890	0.3522	0.1237	0.4555	0.3733
	MGRT2	PPP-AR	-	-	-	-	-	-	-	-	-	-
	MGRT2	PPP	-	-	-	-	-	-	-	-	-	-
LMMF7	MGRT1	PPP-AR	0.0277	0.0000	0.0303	0.1231	0.0620	0.2481	0.1262	0.0620	0.2499	0.1406
	MGRT1	PPP	0.0048	0.0138	-0.0313	0.0980	0.0385	0.0962	0.0982	0.0409	0.1012	0.1064
	MGRT2	PPP-AR	-	-	-	-	-	-	-	-	-	-
	MGRT2	PPP	-	-	-	-	-	-	-	-	-	-
TSK2	MGRT1	PPP-AR	-0.0080	-0.0165	0.0057	0.0302	0.0218	0.0486	0.0312	0.0273	0.0489	0.0415
	MGRT1	PPP	-0.0075	-0.0162	-0.0040	0.0279	0.0174	0.0453	0.0289	0.0238	0.0455	0.0374
	MGRT2	PPP-AR	-	-	-	-	-	-	-	-	-	-
	MGRT2	PPP	-	-	-	-	-	-	-	-	-	-
UCAL0	MGRT1	PPP-AR	-0.0289	0.0037	0.0023	0.0334	0.0243	0.0700	0.0442	0.0245	0.0700	0.0505
	MGRT1	PPP	-0.0399	0.0043	0.0129	0.0865	0.0678	0.1092	0.0952	0.0679	0.1100	0.1170
	MGRT2	PPP-AR	-	-	-	-	-	-	-	-	-	-
	MGRT2	PPP	-	-	-	-	-	-	-	-	-	-
PERT0	MGRT1	PPP-AR	0.0253	0.0160	0.0055	0.0506	0.0356	0.0886	0.0566	0.0390	0.0888	0.0687
	MGRT1	PPP	0.0667	0.0585	0.1096	0.1037	0.1020	0.1807	0.1233	0.1176	0.2114	0.1704
	MGRT2	PPP-AR	-	-	-	-	-	-	-	-	-	-
	MGRT2	PPP	-	-	-	-	-	-	-	-	-	-
WTZR0	MGRT1	PPP-AR	0.0547	-0.0312	0.0131	0.0470	0.0597	0.0980	0.0721	0.0674	0.0989	0.0987
	MGRT1	PPP	0.0417	-0.0380	0.0484	0.0402	0.0377	0.0843	0.0579	0.0536	0.0972	0.0789
	MGRT2	PPP-AR	-	-	-	-	-	-	-	-	-	-
	MGRT2	PPP	-	-	-	-	-	-	-	-	-	-
XMIS0	MGRT1	PPP-AR	-	-	-	-	-	-	-	-	-	-
	MGRT1	PPP	-	-	-	-	-	-	-	-	-	-
	MGRT2	PPP-AR	-	-	-	-	-	-	-	-	-	-
	MGRT2	PPP	-	-	-	-	-	-	-	-	-	-

Data Availability(%) ↑


--------------------------------------------------------------------------------------------------------------------------------------------------------------
                 00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
--------------------------------------------------------------------------------------------------------------------------------------------------------------

AIRA            100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0
LMMF7           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0
MAO00           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  98.3 100.0 100.0 100.0 100.0 100.0  96.4  96.2 100.0 100.0 100.0 100.0 100.0 100.0
MAYG0               -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -
PERT0           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0
SIN10           100.0 100.0  94.6  96.6 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  98.0  93.3  99.9 100.0 100.0  98.3 100.0 100.0 100.0 100.0 100.0
TSK2            100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0
UCAL0           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0
WTZR0           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  98.2 100.0 100.0 100.0 100.0 100.0 100.0
XMIS0           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  98.3 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

PPP-AR Station MAP ↑

Time Series/Horizontal Plots ↑

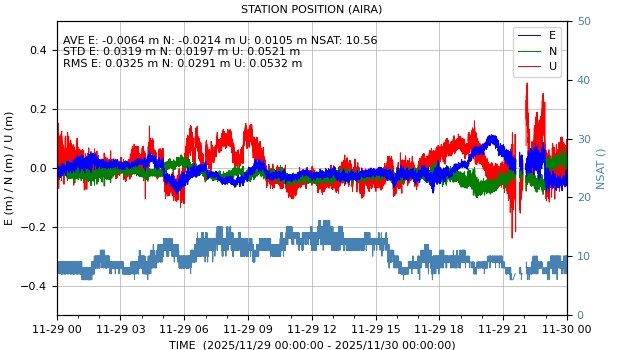

AIRA ↑
(more info)

AIRA ↑

Data Availability(%)
----------------------------------------------------------------------------------------------------------------------------------------------- 00H 01H 02H 03H 04H 05H 06H 07H 08H 09H 10H 11H 12H 13H 14H 15H 16H 17H 18H 19H 20H 21H 22H 23H ----------------------------------------------------------------------------------------------------------------------------------------------- 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

prev top next

MADOCA_SSR1 Real Time PPP Error
prev top next

MADOCA_SSR2 Real Time PPP-AR Error
prev top next

MADOCA_SSR2 Real Time PPP Error
prev top next

SIN10 ↑
(more info)

SIN10 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0  94.6  96.6 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  98.0  93.3  99.9 100.0 100.0  98.3 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

MAYG0 ↑
(more info)

MAYG0 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

MAO00 ↑
(more info)

MAO00 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  98.3 100.0 100.0 100.0 100.0 100.0  96.4  96.2 100.0 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

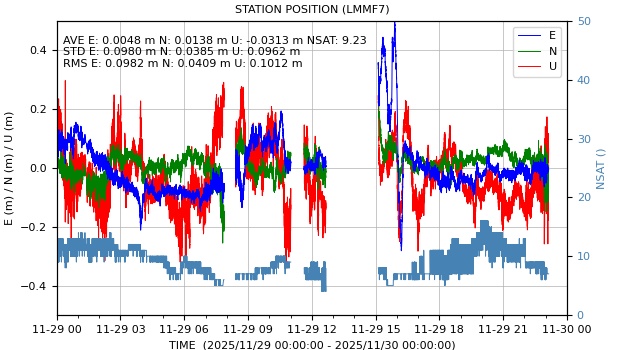

LMMF7 ↑
(more info)

LMMF7 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

TSK2 ↑
(more info)

TSK2 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

UCAL0 ↑
(more info)

UCAL0 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

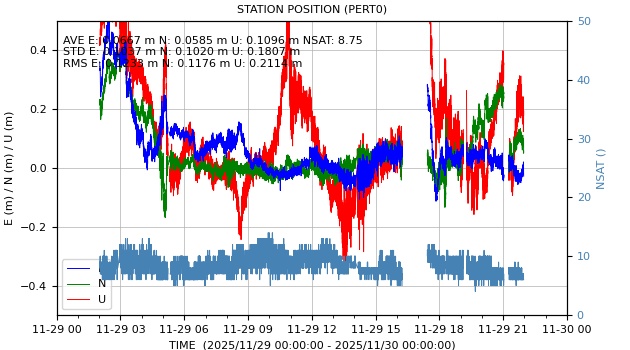

PERT0 ↑
(more info)

PERT0 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

WTZR0 ↑
(more info)

WTZR0 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  98.2 100.0 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

XMIS0 ↑
(more info)

XMIS0 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  98.3 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

update: 2025-12-02 02:28:27 UTC

The products are for test and evaluation purpose only.
