MADOCA: PPP-AR Monitor

Current PPP-AR Result

Contents:
-Result Statistics
-Data Availability
-Station Position
-Time Series/Horizontal Plots
Station: AIRA SIN10 MAYG0 MAO00 LMMF7 TSK2 UCAL0 PERT0 WTZR0 XMIS0

2026-03-31, DOY=090, 2412-2

Result Statistics ↑

top

Station	Product	Type	Real Time Kinematic PPP-AR Result(m)
			AVE			STD			RMS
			E	N	U	E	N	U	E	N	U	D
AIRA	MGRT1	PPP-AR	0.1114	-0.0166	-0.0774	0.3087	0.0941	0.3082	0.3282	0.0955	0.3178	0.3418
	MGRT1	PPP	0.0199	-0.0215	0.0030	0.0561	0.0334	0.0635	0.0596	0.0397	0.0636	0.0716
	MGRT2	PPP-AR	0.1169	-0.0150	-0.0520	0.3313	0.0977	0.3075	0.3513	0.0988	0.3118	0.3649
	MGRT2	PPP	0.0081	-0.0212	0.0276	0.0406	0.0313	0.0795	0.0414	0.0378	0.0842	0.0560
SIN10	MGRT1	PPP-AR	-	-	-	-	-	-	-	-	-	-
	MGRT1	PPP	-	-	-	-	-	-	-	-	-	-
	MGRT2	PPP-AR	-	-	-	-	-	-	-	-	-	-
	MGRT2	PPP	-	-	-	-	-	-	-	-	-	-
MAYG0	MGRT1	PPP-AR	-	-	-	-	-	-	-	-	-	-
	MGRT1	PPP	-	-	-	-	-	-	-	-	-	-
	MGRT2	PPP-AR	-	-	-	-	-	-	-	-	-	-
	MGRT2	PPP	-	-	-	-	-	-	-	-	-	-
MAO00	MGRT1	PPP-AR	-0.0612	0.0139	-0.0179	0.1771	0.1354	0.2766	0.1873	0.1361	0.2771	0.2316
	MGRT1	PPP	-0.0119	-0.0611	-0.0114	0.1181	0.1110	0.2201	0.1187	0.1267	0.2204	0.1737
	MGRT2	PPP-AR	-0.0602	0.0244	0.0348	0.1540	0.0937	0.2570	0.1653	0.0968	0.2594	0.1916
	MGRT2	PPP	-0.0899	-0.0029	0.0649	0.1990	0.0863	0.2162	0.2184	0.0864	0.2257	0.2348
LMMF7	MGRT1	PPP-AR	-0.0041	0.0362	0.0714	0.1452	0.2100	0.5903	0.1452	0.2131	0.5946	0.2579
	MGRT1	PPP	-0.0204	0.0237	0.0248	0.0680	0.0343	0.1083	0.0710	0.0417	0.1111	0.0823
	MGRT2	PPP-AR	0.0035	0.0475	0.0886	0.1403	0.2035	0.5897	0.1404	0.2090	0.5963	0.2518
	MGRT2	PPP	-0.0031	0.0229	0.0080	0.1079	0.0298	0.0842	0.1079	0.0376	0.0846	0.1143
TSK2	MGRT1	PPP-AR	-0.0047	-0.0126	-0.0035	0.0231	0.0224	0.0512	0.0236	0.0257	0.0513	0.0348
	MGRT1	PPP	0.0031	-0.0150	0.0047	0.0205	0.0175	0.0487	0.0208	0.0230	0.0489	0.0310
	MGRT2	PPP-AR	-0.0318	-0.0162	-0.0091	0.0547	0.0343	0.1296	0.0633	0.0380	0.1299	0.0738
	MGRT2	PPP	0.0056	-0.0182	0.0115	0.0212	0.0232	0.0554	0.0219	0.0295	0.0566	0.0368
UCAL0	MGRT1	PPP-AR	-0.0242	-0.0183	0.0116	0.0309	0.0286	0.0692	0.0393	0.0340	0.0702	0.0519
	MGRT1	PPP	-0.0209	-0.0247	0.0667	0.0992	0.0552	0.1476	0.1014	0.0605	0.1620	0.1181
	MGRT2	PPP-AR	-0.0360	-0.0038	-0.0002	0.0338	0.0229	0.0616	0.0494	0.0232	0.0616	0.0546
	MGRT2	PPP	-0.0099	0.0048	0.0547	0.1176	0.0448	0.1651	0.1180	0.0450	0.1739	0.1263
PERT0	MGRT1	PPP-AR	-0.0065	0.0043	0.0032	0.0280	0.0221	0.0728	0.0287	0.0225	0.0728	0.0365
	MGRT1	PPP	0.0517	0.0168	0.1833	0.0890	0.0758	0.1620	0.1029	0.0776	0.2446	0.1289
	MGRT2	PPP-AR	0.0436	0.0405	0.0246	0.0318	0.0247	0.0564	0.0540	0.0474	0.0615	0.0719
	MGRT2	PPP	0.0484	0.0379	0.1097	0.0508	0.0520	0.1284	0.0701	0.0643	0.1689	0.0952
WTZR0	MGRT1	PPP-AR	0.0135	-0.0077	0.0088	0.0230	0.0179	0.0371	0.0267	0.0195	0.0381	0.0330
	MGRT1	PPP	0.0091	-0.0105	0.0124	0.0245	0.0180	0.0370	0.0262	0.0208	0.0390	0.0334
	MGRT2	PPP-AR	0.0287	0.0008	0.0153	0.0192	0.0172	0.0389	0.0345	0.0172	0.0418	0.0386
	MGRT2	PPP	0.0283	-0.0014	0.0169	0.0210	0.0185	0.0382	0.0352	0.0186	0.0418	0.0398
XMIS0	MGRT1	PPP-AR	0.0289	0.0206	0.0359	0.0792	0.0479	0.1320	0.0843	0.0521	0.1368	0.0991
	MGRT1	PPP	-0.0191	0.0042	0.1071	0.0801	0.0559	0.1893	0.0824	0.0561	0.2175	0.0996
	MGRT2	PPP-AR	0.0478	0.0340	0.0581	0.1044	0.0346	0.2249	0.1148	0.0485	0.2323	0.1246
	MGRT2	PPP	0.0278	0.0406	0.0916	0.0707	0.0406	0.1431	0.0759	0.0574	0.1699	0.0952

Data Availability(%) ↑


--------------------------------------------------------------------------------------------------------------------------------------------------------------
                 00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
--------------------------------------------------------------------------------------------------------------------------------------------------------------

AIRA            100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0
LMMF7           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  79.1 100.0  96.6 100.0 100.0 100.0 100.0 100.0
MAO00           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0
MAYG0               -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -
PERT0           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0
SIN10               -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -
TSK2            100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0
UCAL0           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  98.3 100.0  95.0  93.3  96.6 100.0 100.0 100.0 100.0
WTZR0           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0
XMIS0           100.0  98.4 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  98.4 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

PPP-AR Station MAP ↑

Time Series/Horizontal Plots ↑

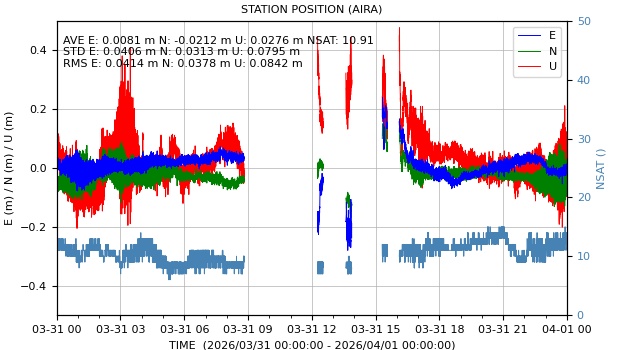

AIRA ↑
(more info)

AIRA ↑

Data Availability(%)
----------------------------------------------------------------------------------------------------------------------------------------------- 00H 01H 02H 03H 04H 05H 06H 07H 08H 09H 10H 11H 12H 13H 14H 15H 16H 17H 18H 19H 20H 21H 22H 23H ----------------------------------------------------------------------------------------------------------------------------------------------- 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

prev top next

MADOCA_SSR1 Real Time PPP Error
prev top next

MADOCA_SSR2 Real Time PPP-AR Error
prev top next

MADOCA_SSR2 Real Time PPP Error
prev top next

SIN10 ↑
(more info)

SIN10 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

MAYG0 ↑
(more info)

MAYG0 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

MAO00 ↑
(more info)

MAO00 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

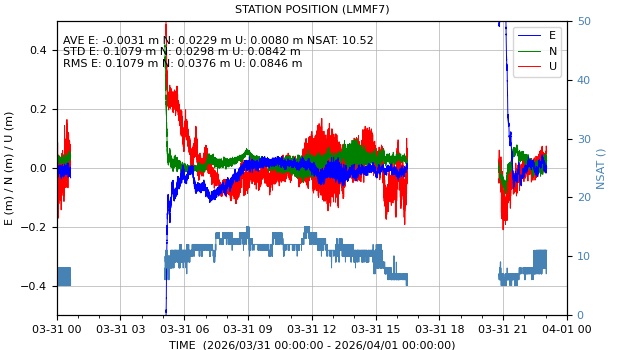

LMMF7 ↑
(more info)

LMMF7 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  79.1 100.0  96.6 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

TSK2 ↑
(more info)

TSK2 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

UCAL0 ↑
(more info)

UCAL0 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  98.3 100.0  95.0  93.3  96.6 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

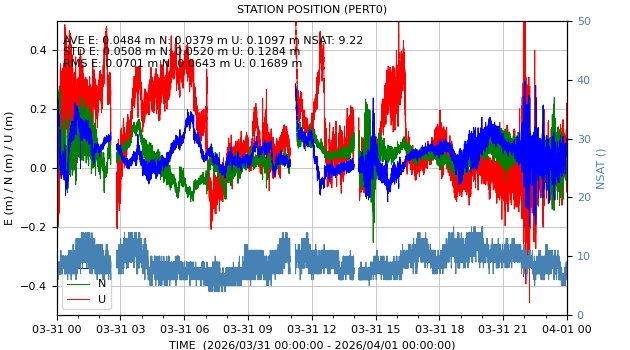

PERT0 ↑
(more info)

PERT0 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

WTZR0 ↑
(more info)

WTZR0 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top

MADOCA_SSR1 Real Time PPP Error

top

MADOCA_SSR2 Real Time PPP-AR Error

top

MADOCA_SSR2 Real Time PPP Error

top

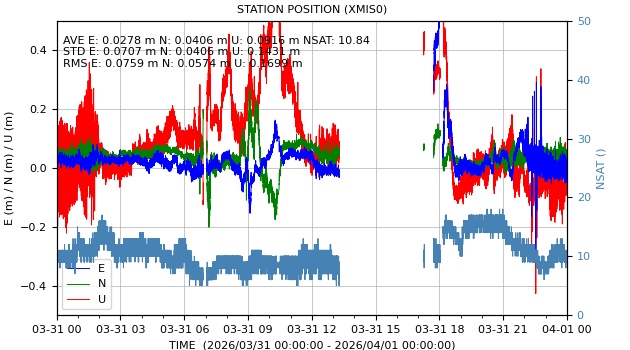

XMIS0 ↑
(more info)

XMIS0 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0  98.4 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  98.4 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR1 Real Time PPP-AR Error

top
