MADOCA: PPP Monitor

Current PPP Result

Contents:
-Result Statistics
-Data Availability
-Station Position
-Time Series/Horizontal Plots
Station: AIRA SIN10 MAYG0 MAO00 LMMF7 TSK2 UCAL0 PERT0 WTZR0 XMIS0

2026-04-21, DOY=111, 2415-2

Result Statistics ↑

Station	Product	Real Time Kinematic PPP Result(m)
		AVE			STD			RMS
		E	N	U	E	N	U	E	N	U	D
AIRA	MGRT1	-	-	-	-	-	-	-	-	-	-
AIRA	MGRT2	0.0039	-0.0133	0.0106	0.0190	0.0225	0.0560	0.0194	0.0261	0.0570	0.0325
SIN10	MGRT1	-	-	-	-	-	-	-	-	-	-
SIN10	MGRT2	-	-	-	-	-	-	-	-	-	-
MAYG0	MGRT1	-	-	-	-	-	-	-	-	-	-
MAYG0	MGRT2	-	-	-	-	-	-	-	-	-	-
MAO00	MGRT1	-	-	-	-	-	-	-	-	-	-
MAO00	MGRT2	-0.0501	0.0061	0.0869	0.0616	0.0597	0.1707	0.0794	0.0601	0.1915	0.0996
LMMF7	MGRT1	-	-	-	-	-	-	-	-	-	-
LMMF7	MGRT2	0.0031	0.0244	0.0181	0.0443	0.0251	0.0793	0.0444	0.0350	0.0814	0.0566
TSK2	MGRT1	-	-	-	-	-	-	-	-	-	-
TSK2	MGRT2	0.0077	-0.0065	-0.0121	0.0251	0.0285	0.0415	0.0262	0.0292	0.0432	0.0393
UCAL0	MGRT1	-	-	-	-	-	-	-	-	-	-
UCAL0	MGRT2	-0.0006	-0.0074	-0.0034	0.0925	0.0544	0.1318	0.0925	0.0549	0.1318	0.1075
PERT0	MGRT1	-	-	-	-	-	-	-	-	-	-
PERT0	MGRT2	0.0506	0.0449	0.0364	0.0724	0.0350	0.1041	0.0884	0.0570	0.1103	0.1051
WTZR0	MGRT1	-	-	-	-	-	-	-	-	-	-
WTZR0	MGRT2	0.0377	0.0022	0.0092	0.0238	0.0232	0.0364	0.0446	0.0233	0.0376	0.0503
XMIS0	MGRT1	-	-	-	-	-	-	-	-	-	-
XMIS0	MGRT2	0.0108	0.0428	0.0467	0.0253	0.0184	0.0648	0.0275	0.0466	0.0799	0.0541

Data Availability(%) ↑


--------------------------------------------------------------------------------------------------------------------------------------------------------------
                 00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
--------------------------------------------------------------------------------------------------------------------------------------------------------------

AIRA            100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0
LMMF7           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  96.6  96.4 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  90.8 100.0 100.0
MAO00           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  95.8  95.4 100.0 100.0  98.2 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  98.3 100.0 100.0
MAYG0               -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -
PERT0           100.0  98.3 100.0 100.0 100.0 100.0 100.0 100.0  90.5  95.8 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0
SIN10               -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -
TSK2            100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0
UCAL0           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  92.4 100.0 100.0 100.0 100.0 100.0 100.0 100.0  96.7 100.0 100.0  98.2  98.3 100.0 100.0 100.0
WTZR0           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  95.7  98.4 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0
XMIS0           100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  93.3 100.0  98.3 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  98.4 100.0 100.0 100.0

PPP Station MAP ↑

Time Series/Horizontal Plots ↑

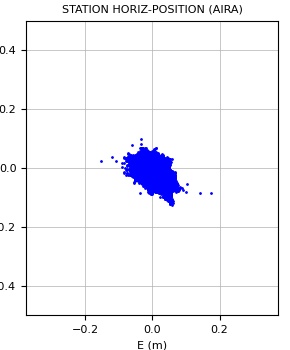

AIRA ↑
(more info)

AIRA ↑

Data Availability(%)
----------------------------------------------------------------------------------------------------------------------------------------------- 00H 01H 02H 03H 04H 05H 06H 07H 08H 09H 10H 11H 12H 13H 14H 15H 16H 17H 18H 19H 20H 21H 22H 23H ----------------------------------------------------------------------------------------------------------------------------------------------- 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

(close)

MADOCA_SSR2 Real Time PPP Error

SIN10 ↑
(more info)

SIN10 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -

(close)

MAYG0 ↑
(more info)

MAYG0 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -     -

(close)

MAO00 ↑
(more info)

MAO00 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  95.8  95.4 100.0 100.0  98.2 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  98.3 100.0 100.0

(close)



MADOCA_SSR2 Real Time PPP Error

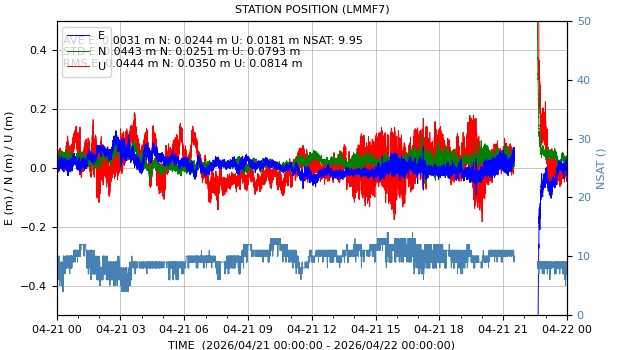

LMMF7 ↑
(more info)

LMMF7 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  96.6  96.4 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  90.8 100.0 100.0

(close)



MADOCA_SSR2 Real Time PPP Error

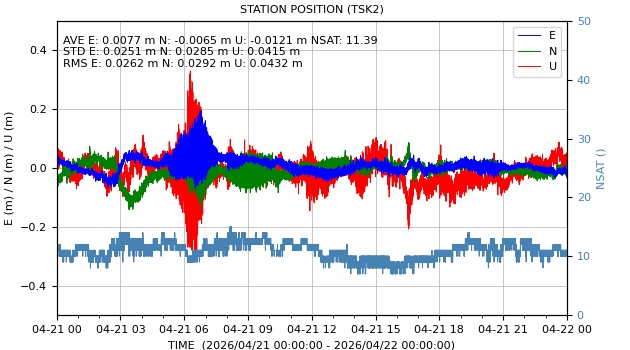

TSK2 ↑
(more info)

TSK2 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

(close)



MADOCA_SSR2 Real Time PPP Error

UCAL0 ↑
(more info)

UCAL0 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  92.4 100.0 100.0 100.0 100.0 100.0 100.0 100.0  96.7 100.0 100.0  98.2  98.3 100.0 100.0 100.0

(close)



MADOCA_SSR2 Real Time PPP Error

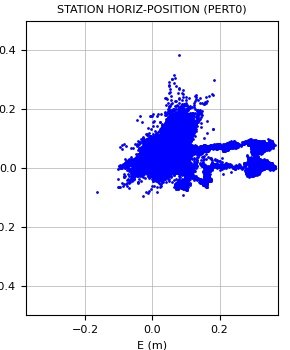

PERT0 ↑
(more info)

PERT0 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0  98.3 100.0 100.0 100.0 100.0 100.0 100.0  90.5  95.8 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

(close)



MADOCA_SSR2 Real Time PPP Error

WTZR0 ↑
(more info)

WTZR0 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  95.7  98.4 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0

(close)



MADOCA_SSR2 Real Time PPP Error

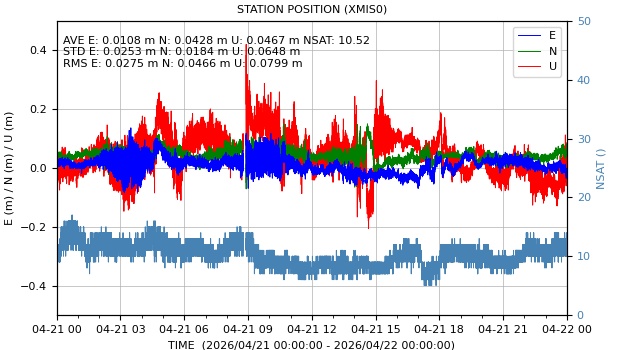

XMIS0 ↑
(more info)

XMIS0 ↑

Data Availability(%)

-----------------------------------------------------------------------------------------------------------------------------------------------
  00H   01H   02H   03H   04H   05H   06H   07H   08H   09H   10H   11H   12H   13H   14H   15H   16H   17H   18H   19H   20H   21H   22H   23H
-----------------------------------------------------------------------------------------------------------------------------------------------
 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  93.3 100.0  98.3 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0 100.0  98.4 100.0 100.0 100.0

(close)



MADOCA_SSR2 Real Time PPP Error

update: 2026-04-22 01:24:44 UTC

The products are for test and evaluation purpose only.
