MADOCA: Real-Time Products Quality Monitor

GPS Week 2268, 2023/06/25-2023/07/01

MADOCA: Real-Time Products Quality Monitor

Graph:

MGRT1:GPS , GLONASS , QZSS , Galileo , FCB
MGRT2:GPS , GLONASS , QZSS , Galileo , FCB
MGRT3:GPS , Galileo , BeiDou , FCB

MGRT1 Monitor Statistics

prev top next

Product GPS Errors wrt IGU QZS Errors wrt JXR QZS Errors wrt COM GLONASS Errors wrt IGV GLONASS Errors wrt IAC GLONASS Errors wrt JXR Galileo Errors wrt GBM Result Files

Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Orbit(m) Clock(ns) Clock(ns) Orbit(m) Clock(ns)

R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D

RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS RMS RMS RMS RMS STD RMS STD RMS RMS RMS RMS RMS STD RMS

Total 0.0212 0.0307 0.0317 0.0490 0.1710 0.6290 0.1185 0.5058 0.0739 0.5247 0.4350 2.8260 0.1434 0.5488 0.0944 0.5750 0.4790 0.7410 0.0284 0.0662 0.0709 0.1011 0.0310 0.0689 0.0703 0.1032 0.2750 1.1480 0.3270 1.1990 - - - - - - mgrt12268.tar.gz

2023/07/01 0.0235 0.0319 0.0308 0.0502 0.0970 0.6380 0.0986 0.6098 0.0882 0.6240 0.2110 2.5750 0.0718 0.6670 0.1054 0.6791 0.2120 0.9220 0.0263 0.0681 0.0718 0.1024 0.0316 0.0674 0.0722 0.1037 0.2560 1.1560 0.2800 1.3170 - - - - - - mgrt122686.tar.gz

2023/06/30 0.0206 0.0305 0.0308 0.0480 0.0960 0.6460 0.1196 0.5856 0.0968 0.6055 0.2420 2.5610 0.0742 0.6659 0.1049 0.6782 0.2260 0.4410 0.0269 0.0634 0.0722 0.0998 0.0307 0.0667 0.0705 0.1018 0.2510 1.1130 0.2830 1.3080 - - - - - - mgrt122685.tar.gz

2023/06/29 0.0210 0.0307 0.0323 0.0492 0.0990 0.6290 0.1086 0.4691 0.0709 0.4867 0.2770 2.8790 0.1626 0.4841 0.0867 0.5180 0.5130 0.7250 0.0304 0.0682 0.0683 0.1012 0.0320 0.0746 0.0677 0.1057 0.2290 1.1220 0.2550 1.1480 - - - - - - mgrt122684.tar.gz

2023/06/28 0.0214 0.0327 0.0340 0.0518 0.1090 0.6140 0.1353 0.4964 0.0693 0.5191 0.3060 2.6430 0.1609 0.5454 0.1029 0.5778 0.5040 0.6910 0.0327 0.0690 0.0766 0.1081 0.0331 0.0678 0.0742 0.1058 0.2570 1.1450 0.2530 1.1690 - - - - - - mgrt122683.tar.gz

2023/06/27 0.0202 0.0305 0.0328 0.0492 0.0930 0.6180 0.1399 0.5065 0.0716 0.5303 0.3170 2.7000 0.1527 0.5451 0.0891 0.5731 0.4800 0.7160 0.0276 0.0656 0.0686 0.0989 0.0289 0.0682 0.0654 0.0988 0.2470 1.1630 0.2620 1.1620 - - - - - - mgrt122682.tar.gz

2023/06/26 0.0202 0.0302 0.0307 0.0475 0.1020 0.6130 0.1045 0.4562 0.0585 0.4717 0.2270 2.5630 0.1473 0.4900 0.0836 0.5184 0.4610 0.6720 0.0252 0.0621 0.0651 0.0934 0.0300 0.0666 0.0660 0.0984 0.2320 1.1740 0.2550 1.1840 - - - - - - mgrt122681.tar.gz

2023/06/25 0.0216 0.0280 0.0306 0.0468 0.1010 0.6430 0.1096 0.4619 0.0685 0.4797 0.2250 3.5560 0.1603 0.4959 0.0930 0.5293 0.5050 0.9000 0.0287 0.0671 0.0733 0.1035 0.0308 0.0706 0.0753 0.1077 0.2410 1.1620 0.2890 1.0910 - - - - - - mgrt122680.tar.gz

MGRT2 Monitor Statistics

prev top next

Product GPS Errors wrt IGU QZS Errors wrt JXR QZS Errors wrt COM GLONASS Errors wrt IGV GLONASS Errors wrt IAC GLONASS Errors wrt JXR Galileo Errors wrt GBM Result Files

Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Orbit(m) Clock(ns) Clock(ns) Orbit(m) Clock(ns)

R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D

RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS RMS RMS RMS RMS STD RMS STD RMS RMS RMS RMS RMS STD RMS

Total 0.0209 0.0304 0.0321 0.0489 0.1580 0.6240 0.1204 0.4924 0.0693 0.5116 0.4530 2.8900 0.1558 0.5216 0.0931 0.5523 0.5020 0.7480 0.0289 0.0662 0.0705 0.1010 0.0309 0.0694 0.0698 0.1031 0.2610 1.1640 0.3060 1.1470 - - - - - - mgrt22268.tar.gz

2023/07/01 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

2023/06/30 0.0187 0.0293 0.0335 0.0482 0.0390 0.6470 0.1282 0.5479 0.1074 0.5728 0.0220 2.6640 0.0314 0.6472 0.1158 0.6582 0.0350 0.2200 0.0253 0.0464 0.0745 0.0914 0.0285 0.0568 0.0717 0.0958 0.1000 1.2910 0.0590 1.5190 - - - - - - mgrt222685.tar.gz

2023/06/29 0.0210 0.0306 0.0323 0.0492 0.1000 0.6290 0.1089 0.4841 0.0708 0.5012 0.2730 2.8890 0.1620 0.4939 0.0869 0.5270 0.5100 0.7320 0.0303 0.0682 0.0682 0.1011 0.0320 0.0743 0.0673 0.1052 0.2290 1.1290 0.2560 1.1350 - - - - - - mgrt222684.tar.gz

2023/06/28 0.0213 0.0325 0.0338 0.0515 0.1090 0.6140 0.1341 0.5095 0.0697 0.5314 0.3010 2.6480 0.1593 0.5519 0.1030 0.5836 0.4990 0.6920 0.0327 0.0691 0.0764 0.1081 0.0331 0.0680 0.0738 0.1056 0.2570 1.1550 0.2530 1.1610 - - - - - - mgrt222683.tar.gz

2023/06/27 0.0202 0.0305 0.0327 0.0491 0.0930 0.6180 0.1385 0.5186 0.0729 0.5417 0.3110 2.7030 0.1517 0.5511 0.0905 0.5787 0.4760 0.7170 0.0276 0.0660 0.0687 0.0992 0.0289 0.0685 0.0654 0.0990 0.2470 1.1720 0.2620 1.1530 - - - - - - mgrt222682.tar.gz

2023/06/26 0.0203 0.0301 0.0307 0.0476 0.1030 0.6130 0.1037 0.4732 0.0599 0.4881 0.2240 2.5650 0.1471 0.5009 0.0856 0.5290 0.4610 0.6750 0.0253 0.0622 0.0651 0.0935 0.0301 0.0666 0.0658 0.0983 0.2330 1.1810 0.2560 1.1720 - - - - - - mgrt222681.tar.gz

2023/06/25 0.0217 0.0279 0.0306 0.0467 0.1010 0.6430 0.1112 0.4723 0.0707 0.4904 0.2240 3.5690 0.1612 0.5014 0.0976 0.5357 0.5060 0.9160 0.0286 0.0664 0.0735 0.1031 0.0307 0.0699 0.0757 0.1075 0.2440 1.1750 0.2930 1.0840 - - - - - - mgrt222680.tar.gz

MGRT3 Monitor Statistics

prev top next

Product GPS Errors wrt IGU Galileo Errors wrt GBM BeiDou(GEO) Errors wrt GBM BeiDou(IGSO) Errors wrt GBM BeiDou(MEO) Errors wrt GBM Result Files

Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns)

R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D

RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS

Total 0.0233 0.0304 0.0331 0.0506 0.1740 0.6380 0.0299 0.0538 0.0585 0.0849 0.1480 0.1640 - - - - - - - - - - - - - - - - - - mgrt32268.tar.gz

2023/07/01 0.0249 0.0312 0.0319 0.0511 0.1030 0.6390 0.0256 0.0513 0.0559 0.0801 0.1000 0.1760 - - - - - - - - - - - - - - - - - - mgrt322686.tar.gz

2023/06/30 0.0225 0.0301 0.0322 0.0495 0.1030 0.6510 0.0314 0.0519 0.0560 0.0826 0.1060 0.1710 - - - - - - - - - - - - - - - - - - mgrt322685.tar.gz

2023/06/29 0.0231 0.0303 0.0348 0.0516 0.1060 0.6380 0.0309 0.0527 0.0604 0.0859 0.1050 0.1620 - - - - - - - - - - - - - - - - - - mgrt322684.tar.gz

2023/06/28 0.0237 0.0317 0.0352 0.0530 0.1150 0.6270 0.0308 0.0568 0.0605 0.0885 0.1030 0.1480 - - - - - - - - - - - - - - - - - - mgrt322683.tar.gz

2023/06/27 0.0223 0.0304 0.0343 0.0509 0.1010 0.6290 0.0289 0.0512 0.0573 0.0821 0.0970 0.1580 - - - - - - - - - - - - - - - - - - mgrt322682.tar.gz

2023/06/26 0.0227 0.0302 0.0319 0.0495 0.1090 0.6250 0.0314 0.0615 0.0621 0.0929 0.1090 0.1710 - - - - - - - - - - - - - - - - - - mgrt322681.tar.gz

2023/06/25 0.0237 0.0291 0.0309 0.0486 0.1090 0.6550 0.0301 0.0504 0.0568 0.0817 0.0970 0.1570 - - - - - - - - - - - - - - - - - - mgrt322680.tar.gz

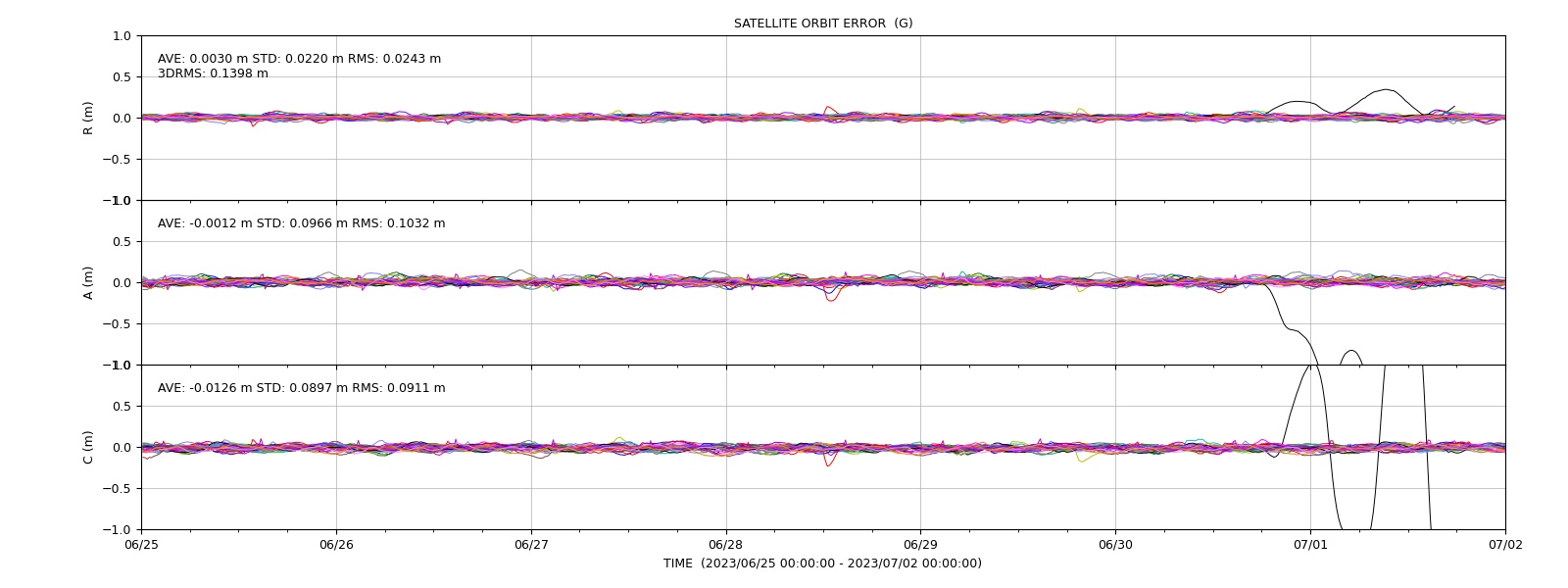

MGRT1 GPS Orbit/Clock Errors wrt IGU (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next

MGRT1 QZSS Orbit/Clock Errors wrt JXR (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next

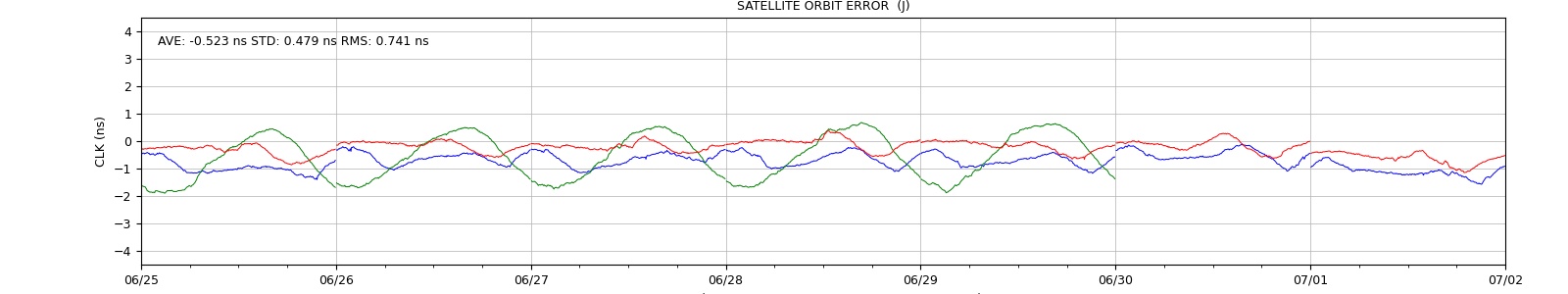

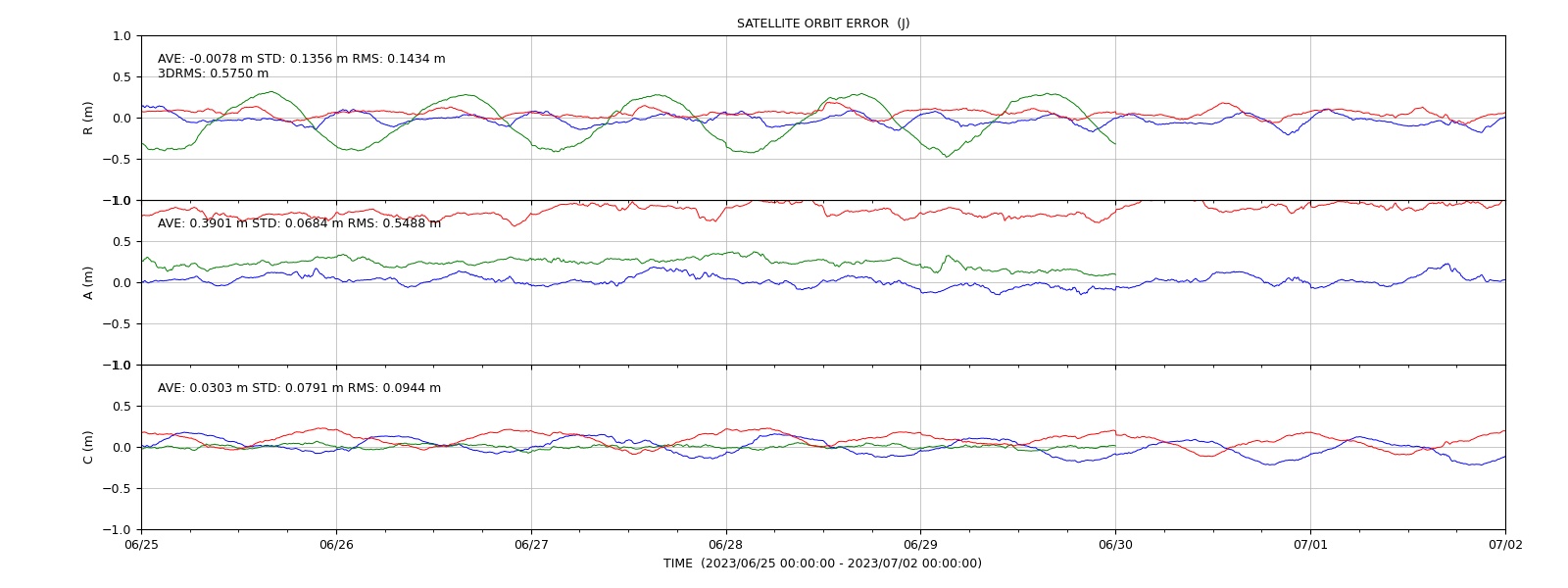

MGRT1 QZSS Orbit/Clock Errors wrt COM (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next

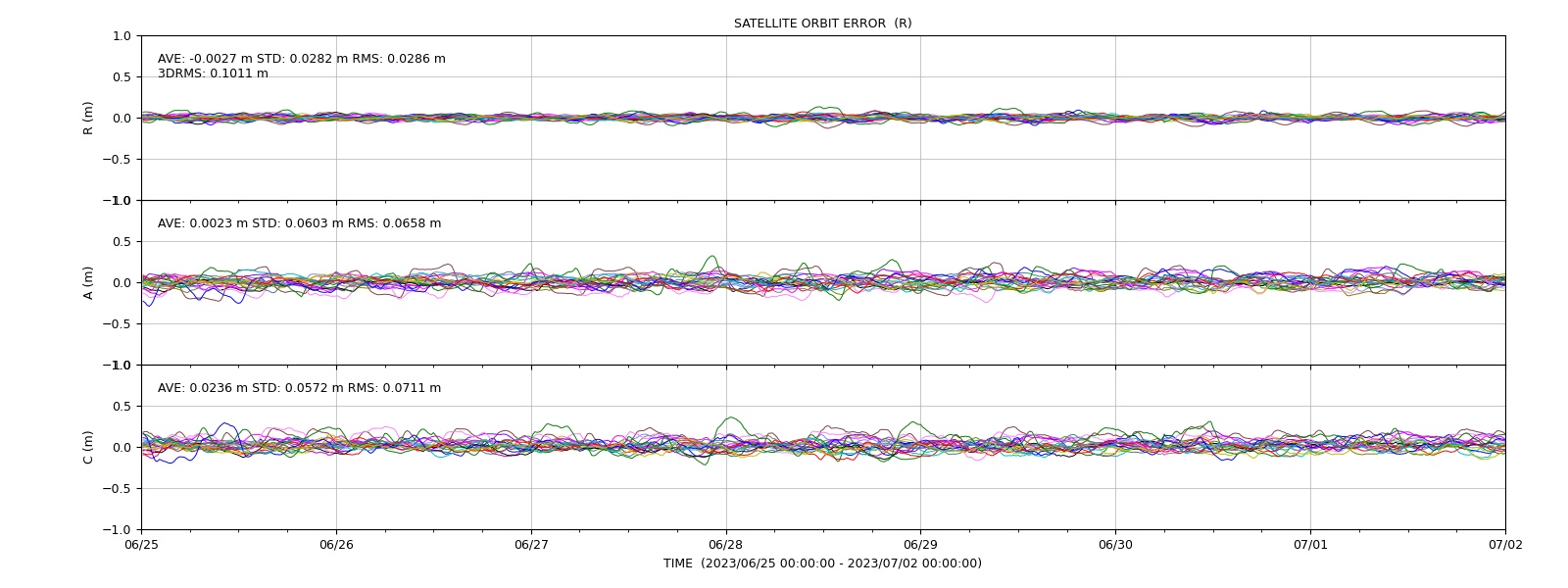

MGRT1 GLONASS Orbit Errors wrt IGV (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next

MGRT1 GLONASS Clock Errors wrt JXR (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next

MGRT1 GLONASS Orbit/Clock Errors wrt IAC (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next

MGRT1 Galileo Orbit/Clock Errors wrt GBM (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next
- (Plot updates after 5days.)

MGRT1 GPS FCB (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next

MGRT1 QZSS FCB (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next

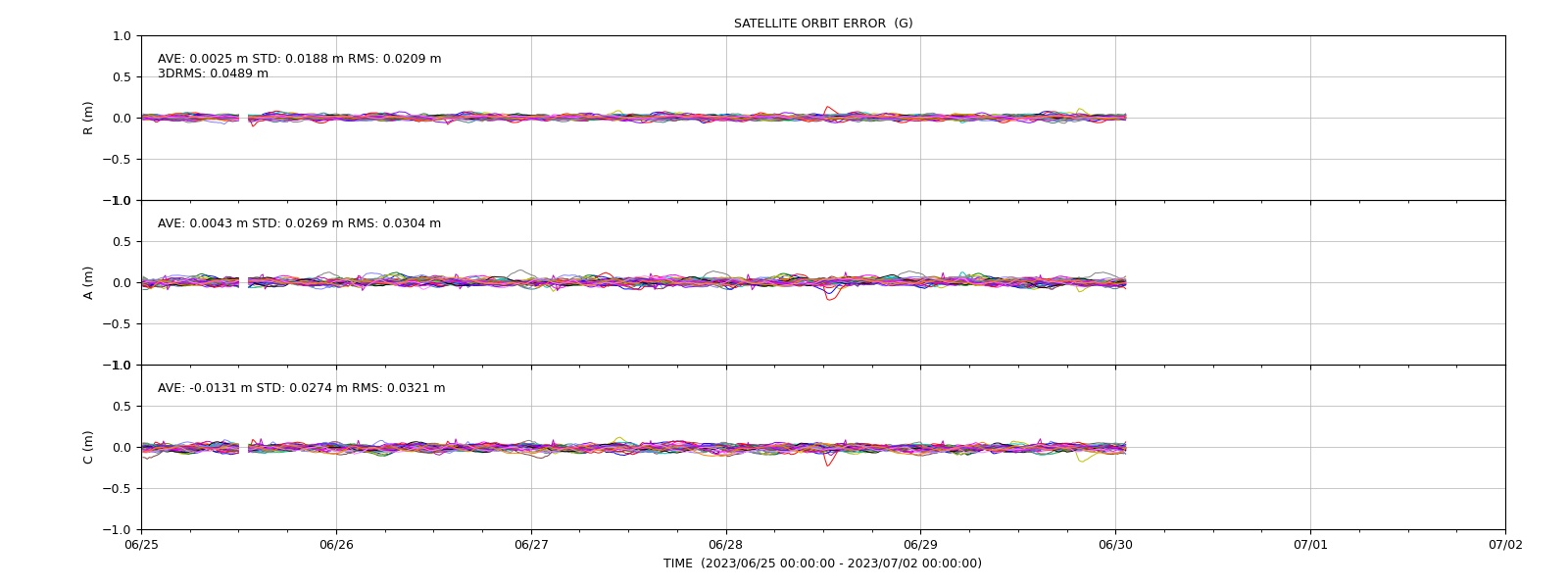

MGRT2 GPS Orbit/Clock Errors wrt IGU (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next

MGRT2 QZS Orbit/Clock Errors wrt JXR (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next

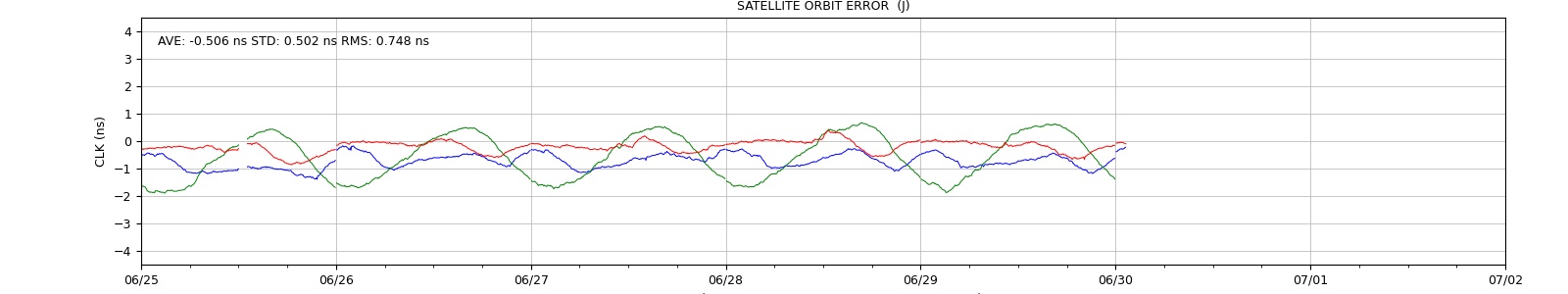

MGRT2 QZS Orbit/Clock Errors wrt COM (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next

MGRT2 GLONASS Orbit Errors wrt IGV (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next

MGRT2 GLONASS Orbit/Clock Errors wrt IAC (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next

MGRT2 GLONASS Clock Errors wrt JXR (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next

MGRT2 Galileo Orbit/Clock Errors wrt GBM (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next
- (Plot updates after 5days.)

MGRT2 GPS FCB (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next

MGRT2 QZSS FCB (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next

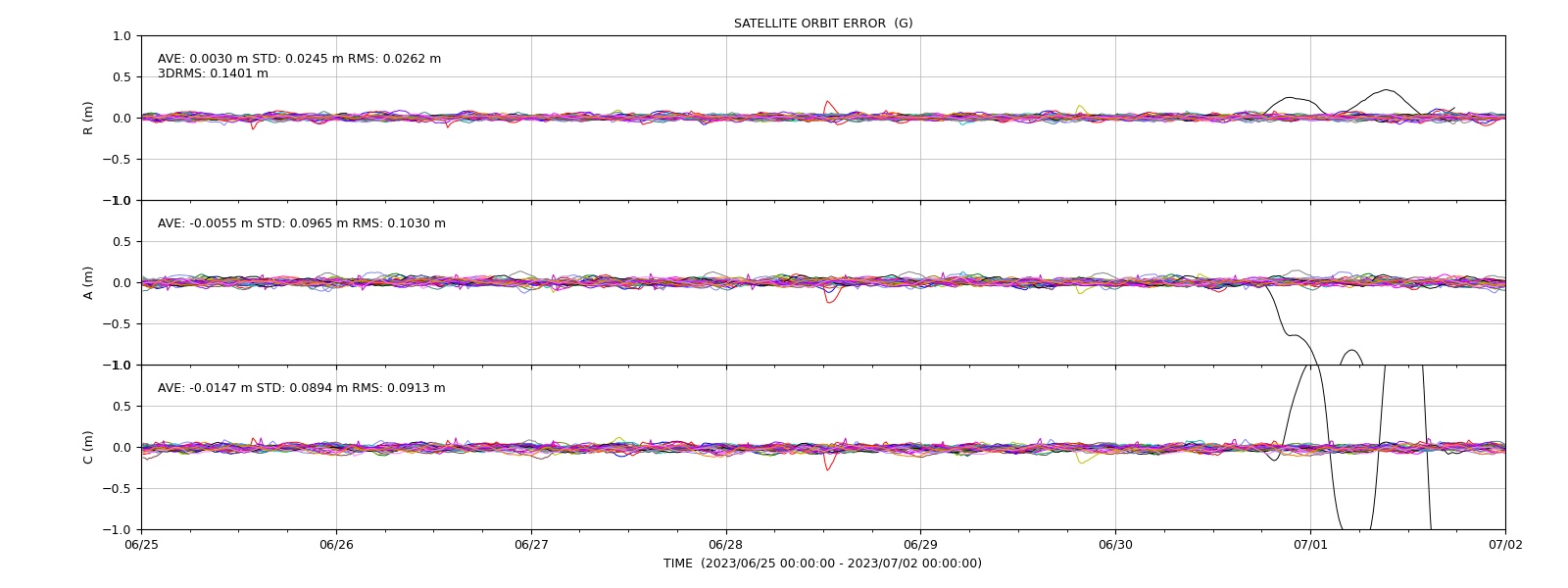

MGRT3 GPS Orbit/Clock Errors wrt IGU (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next

MGRT3 Galileo Orbit/Clock Errors wrt GBM (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next

MGRT3 BeiDou(GEO) Orbit/Clock Errors wrt GBM (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next
-     (Plot updates after 5days.)

MGRT3 BeiDou(IGSO) Orbit/Clock Errors wrt GBM (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next
-     (Plot updates after 5days.)

MGRT3 BeiDou(MEO) Orbit/Clock Errors wrt GBM (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next
-     (Plot updates after 5days.)

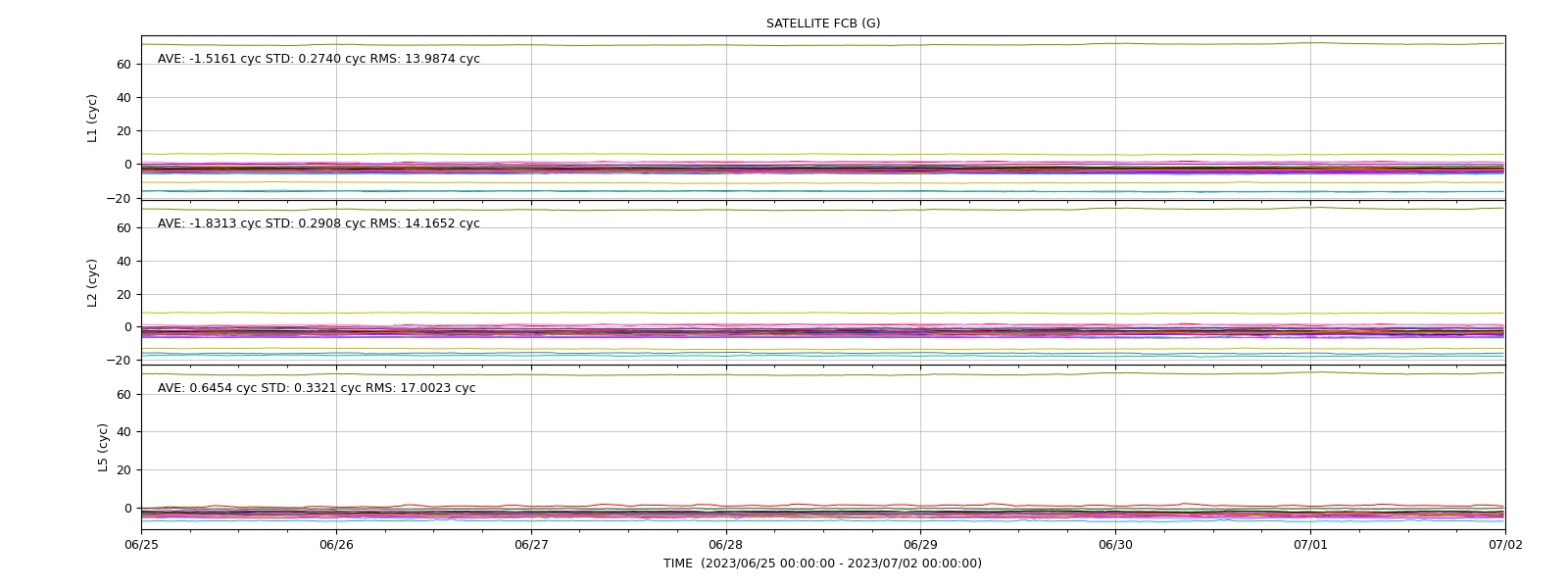

MGRT3 GPS FCB (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next

MGRT3 Galileo FCB (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next

MGRT3 BeiDou FCB (GPS Week 2268, 2023/06/25-2023/07/01) ↑

prev top next
-     (Plot not updates.)

update: 2023-07-16 01:41:21 UTC

The products are for test and evaluation purpose only.
