MADOCA: Final Products(JXF) Quality Monitor

GPS Week 2310, 2024/04/14-2024/04/20

MADOCA: Final Products(JXF) Quality Monitor

Graph:

GPS , GLONASS , QZSS , Galileo , BeiDou , GPS Satellite Clock , FCB

JXF Monitor Statistics

prev top next

Date DOY Product GPS Errors wrt IGR QZS Errors wrt COM GLONASS Errors wrt IGV GLONASS Errors wrt IAC Galileo Errors wrt GBM BeiDou(GEO) Errors wrt GBM BeiDou(IGSO) Errors wrt GBM BeiDou(MEO) Errors wrt GBM Result Files

Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns)

R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D

RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS

- - Total 0.0133 0.0151 0.0125 0.0237 0.1730 0.4250 0.1484 0.0981 0.0597 0.1876 0.4480 2.3410 0.0163 0.0369 0.0340 0.0528 0.0308 0.0486 0.0500 0.0762 0.1740 0.9370 0.0172 0.0181 0.0184 0.0310 0.1270 0.1400 0.1896 5.1680 0.3469 5.1831 3.2830 43.7570 0.0842 0.1054 0.0878 0.1609 3.3080 24.3600 0.0426 0.0696 0.0517 0.0966 3.0080 28.9820 jxf2310.tar.gz

2024/04/20 111 jxf23106 0.0121 0.0132 0.0115 0.0213 0.0410 0.3180 0.1424 0.1448 0.0734 0.2159 0.4330 2.3950 0.0179 0.0377 0.0322 0.0527 0.0274 0.0447 0.0466 0.0702 0.1080 0.9460 0.0177 0.0144 0.0150 0.0273 0.0560 0.1150 0.1912 4.9146 0.3801 4.9330 1.3890 42.7510 0.0991 0.0896 0.0861 0.1589 1.3480 23.9570 0.0221 0.0566 0.0407 0.0731 1.3420 27.3780 jxf23106.tar.gz

2024/04/19 110 jxf23105 0.0121 0.0158 0.0120 0.0233 0.0410 0.3330 0.1488 0.1380 0.0778 0.2174 0.4430 2.3050 0.0171 0.0419 0.0372 0.0586 0.0315 0.0550 0.0524 0.0822 0.1340 0.9840 0.0181 0.0191 0.0201 0.0331 0.0640 0.1450 0.2023 5.3971 0.2922 5.4087 2.5570 39.2230 0.0957 0.0887 0.0858 0.1561 2.3100 20.3080 0.0260 0.0628 0.0460 0.0821 2.3480 24.2510 jxf23105.tar.gz

2024/04/18 109 jxf23104 0.0120 0.0168 0.0120 0.0239 0.0410 0.4690 0.1506 0.0937 0.0606 0.1874 0.4210 2.2400 0.0165 0.0381 0.0375 0.0560 0.0370 0.0440 0.0500 0.0762 0.1460 0.9120 0.0153 0.0185 0.0161 0.0289 0.0510 0.1450 0.1878 5.3710 0.3799 5.3877 1.7430 41.0590 0.0742 0.1093 0.0794 0.1542 1.6350 21.9090 0.0521 0.0823 0.0472 0.1083 1.6420 25.7910 jxf23104.tar.gz

2024/04/17 108 jxf23103 0.0189 0.0183 0.0158 0.0307 0.0610 0.3330 0.1456 0.0780 0.0598 0.1757 0.4420 2.4370 0.0176 0.0352 0.0350 0.0526 0.0319 0.0464 0.0482 0.0741 0.1240 0.9090 0.0180 0.0206 0.0165 0.0320 0.0590 0.1150 0.1935 4.6137 0.2972 4.6273 1.6970 44.5150 0.0887 0.0899 0.0889 0.1545 1.6310 24.5660 0.0372 0.0720 0.0597 0.1006 1.5800 29.4450 jxf23103.tar.gz

2024/04/16 107 jxf23102 0.0130 0.0153 0.0129 0.0238 0.0410 0.4850 0.1598 0.0702 0.0566 0.1835 0.4970 2.2610 0.0144 0.0332 0.0325 0.0486 0.0311 0.0527 0.0582 0.0844 0.1510 0.9560 0.0176 0.0202 0.0197 0.0332 0.0540 0.1540 0.2172 5.3818 0.2725 5.3931 2.2090 44.7110 0.0592 0.1508 0.0869 0.1838 2.0860 24.5570 0.0402 0.0723 0.0378 0.0910 2.0900 29.6070 jxf23102.tar.gz

2024/04/15 106 jxf23101 0.0115 0.0134 0.0112 0.0209 0.0380 0.4970 0.1405 0.0727 0.0373 0.1626 0.4050 2.3790 0.0148 0.0317 0.0289 0.0454 0.0289 0.0450 0.0487 0.0723 0.1200 0.9290 0.0174 0.0170 0.0237 0.0340 0.0610 0.1490 0.1903 5.4141 0.3443 5.4283 1.2850 46.6060 0.0708 0.0845 0.0985 0.1478 1.2550 26.6660 0.0604 0.0627 0.0586 0.1050 1.2730 31.5500 jxf23101.tar.gz

2024/04/14 105 jxf23100 0.0122 0.0121 0.0113 0.0206 0.0390 0.4870 0.1503 0.0476 0.0410 0.1629 0.4350 2.3620 0.0152 0.0392 0.0334 0.0537 0.0258 0.0517 0.0455 0.0735 0.1210 0.9190 0.0163 0.0160 0.0162 0.0280 0.0550 0.1480 0.1425 5.0714 0.4216 5.0909 1.4970 47.0940 0.0881 0.1190 0.0894 0.1729 1.3960 28.1280 0.0441 0.0778 0.0651 0.1107 1.4240 31.6970 jxf23100.tar.gz

GPS Orbit/Clock Errors wrt IGR(GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev top next

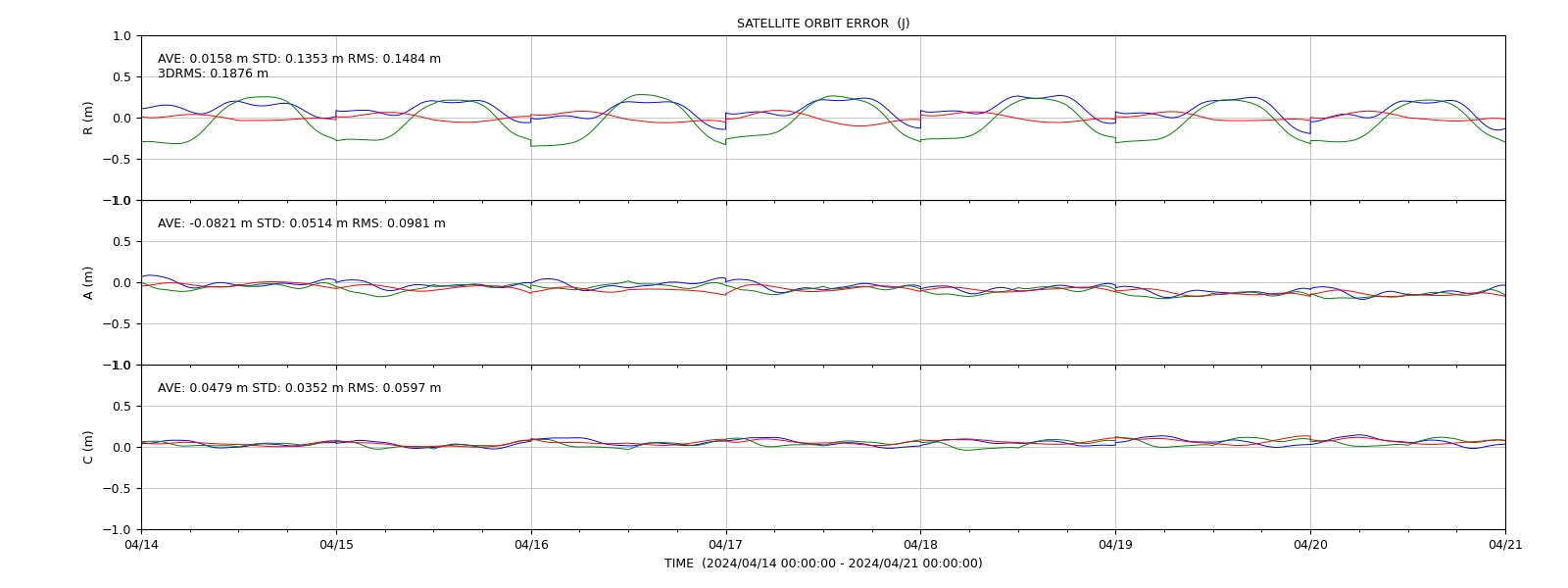

QZSS Orbit/Clock Errors wrt COM(GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev top next

GLONASS Orbit Errors wrt IGV(GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev top next

GLONASS Orbit/Clock Errors wrt IAC(GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev top next

Galileo Orbit/Clock Errors wrt GBM(GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev top next

BeiDou(GEO) Orbit/Clock Errors wrt GBM(GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev top next

BeiDou(IGSO) Orbit/Clock Errors wrt GBM(GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev top next

BeiDou(MEO) Orbit/Clock Errors wrt GBM(GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev top next

GPS FCB (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev top next

QZSS FCB (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev top next

Galileo FCB (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev top next

BeiDou FCB (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev top next

update: 2024-05-06 22:40:07 UTC

The products are for test and evaluation purpose only.
