MADOCA: Final Products(JXF) Quality Monitor

GPS Week 2321, 2024/06/30-2024/07/06

MADOCA: Final Products(JXF) Quality Monitor

Graph:

GPS , GLONASS , QZSS , Galileo , BeiDou , GPS Satellite Clock , FCB

JXF Monitor Statistics

prev top next

Date DOY Product GPS Errors wrt IGR QZS Errors wrt COM GLONASS Errors wrt IGV GLONASS Errors wrt IAC Galileo Errors wrt GBM BeiDou(GEO) Errors wrt GBM BeiDou(IGSO) Errors wrt GBM BeiDou(MEO) Errors wrt GBM Result Files

Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns)

R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D

RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS

- - Total 0.0136 0.0165 0.0118 0.0244 0.1050 0.3430 0.1291 0.0826 0.0514 0.1616 0.3170 2.6080 0.0163 0.0383 0.0334 0.0534 0.0275 0.0449 0.0413 0.0669 0.1740 0.9870 0.0173 0.0339 0.0275 0.0470 0.0880 0.1020 0.2658 4.0812 0.3823 4.1077 2.1210 41.7240 0.0873 0.1647 0.1081 0.2155 2.2000 23.3630 0.0623 0.0885 0.0589 0.1233 2.3340 26.6340 jxf2321.tar.gz

2024/07/06 188 jxf23216 0.0111 0.0120 0.0112 0.0198 0.0350 0.3360 0.1190 0.0985 0.0406 0.1598 0.2650 2.5390 0.0165 0.0439 0.0342 0.0581 0.0320 0.0522 0.0486 0.0782 0.1430 1.0100 0.0189 0.0396 0.0327 0.0547 0.0700 0.0990 0.2919 4.9316 0.3278 4.9511 1.6160 39.8500 0.0918 0.1146 0.1194 0.1893 1.5360 20.4800 0.0475 0.1116 0.0651 0.1377 1.6190 23.3490 jxf23216.tar.gz

2024/07/05 187 jxf23215 0.0109 0.0111 0.0110 0.0190 0.0320 0.3290 0.1171 0.1033 0.0501 0.1640 0.2670 2.6190 0.0145 0.0320 0.0304 0.0465 0.0250 0.0389 0.0340 0.0574 0.0990 1.0940 0.0173 0.0328 0.0236 0.0440 0.0610 0.1000 0.2593 4.1768 0.3604 4.2004 1.4670 40.6660 0.0912 0.1461 0.1198 0.2098 1.6790 22.2180 0.0833 0.0863 0.0615 0.1348 1.5940 25.1210 jxf23215.tar.gz

2024/07/04 186 jxf23214 0.0120 0.0127 0.0117 0.0211 0.0380 0.3440 0.1313 0.0770 0.0460 0.1590 0.2950 2.4850 0.0161 0.0356 0.0325 0.0509 0.0319 0.0400 0.0362 0.0626 0.1240 1.0650 0.0177 0.0304 0.0271 0.0444 0.0570 0.0830 0.2574 4.6647 0.3942 4.6884 1.6640 41.9870 0.1011 0.2185 0.1292 0.2732 1.6230 23.5080 0.0556 0.0812 0.0482 0.1096 1.5950 26.5180 jxf23214.tar.gz

2024/07/03 185 jxf23213 0.0124 0.0155 0.0115 0.0230 0.0400 0.3160 0.1423 0.0602 0.0435 0.1605 0.3350 2.7730 0.0179 0.0404 0.0358 0.0569 0.0280 0.0435 0.0407 0.0658 0.1240 0.9160 0.0171 0.0333 0.0297 0.0478 0.0660 0.1060 0.2772 3.6295 0.4210 3.6643 1.5590 43.2770 0.0755 0.1854 0.1119 0.2293 1.5540 25.2280 0.0686 0.0733 0.0461 0.1105 1.5200 28.4720 jxf23213.tar.gz

2024/07/02 184 jxf23212 0.0199 0.0206 0.0136 0.0318 0.0600 0.3930 0.1322 0.0733 0.0676 0.1656 0.2970 2.7580 0.0176 0.0396 0.0360 0.0563 0.0273 0.0498 0.0457 0.0729 0.1450 0.8650 0.0195 0.0371 0.0312 0.0522 0.0710 0.1270 0.2624 3.9466 0.2925 3.9661 1.3300 42.8990 0.0667 0.1435 0.0873 0.1807 1.5360 25.0920 0.0608 0.0858 0.0505 0.1166 1.5730 28.6210 jxf23212.tar.gz

2024/07/01 183 jxf23211 0.0124 0.0190 0.0117 0.0255 0.0410 0.3250 0.1296 0.0753 0.0573 0.1605 0.2850 2.6020 0.0140 0.0355 0.0322 0.0500 0.0224 0.0416 0.0391 0.0613 0.1050 0.9440 0.0169 0.0361 0.0281 0.0487 0.0600 0.0840 0.2433 2.8042 0.4808 2.8555 1.6480 41.3270 0.0684 0.1413 0.0777 0.1752 1.5010 23.3020 0.0430 0.0943 0.0636 0.1216 1.5530 26.5130 jxf23211.tar.gz

2024/06/30 182 jxf23210 0.0142 0.0213 0.0119 0.0282 0.0490 0.3500 0.1303 0.0821 0.0495 0.1618 0.2910 2.4620 0.0168 0.0399 0.0316 0.0536 0.0239 0.0459 0.0419 0.0666 0.1030 1.0000 0.0129 0.0265 0.0166 0.0339 0.0440 0.1080 0.2693 3.9107 0.3740 3.9378 1.4770 42.0330 0.1077 0.1810 0.1015 0.2338 1.3050 23.3040 0.0680 0.0820 0.0724 0.1288 1.3000 27.4360 jxf23210.tar.gz

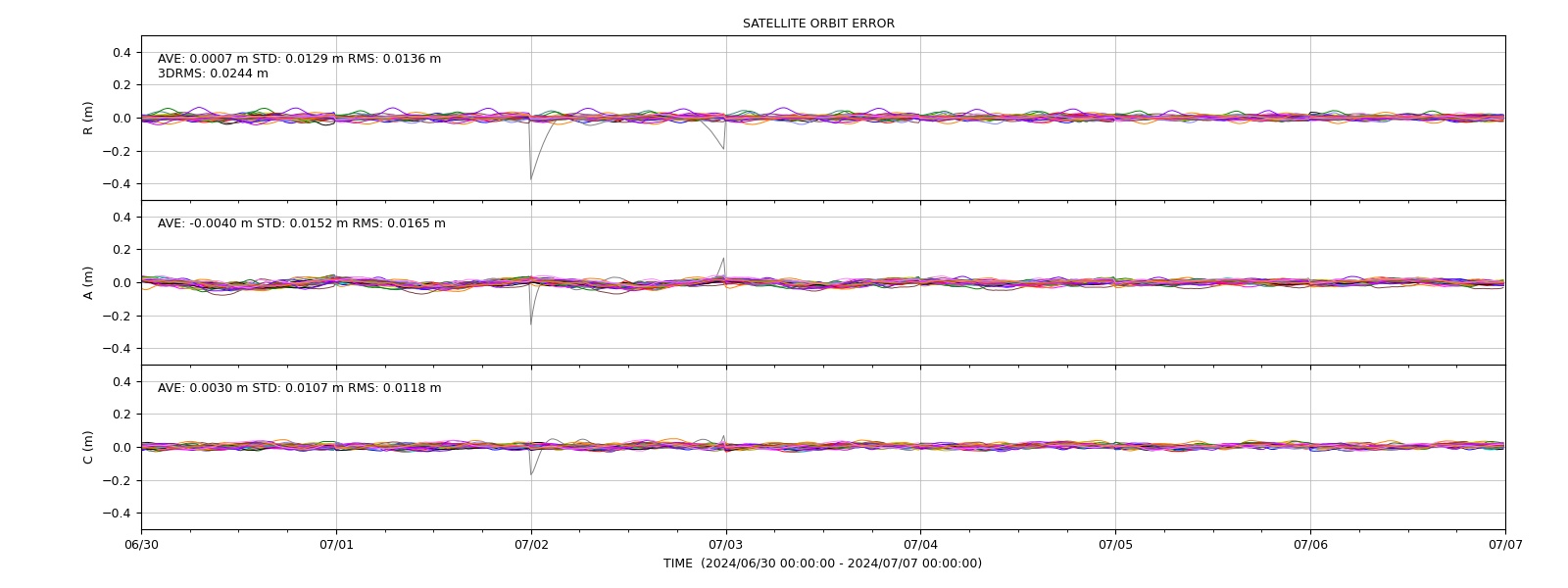

GPS Orbit/Clock Errors wrt IGR(GPS Week 2321, 2024/06/30-2024/07/06) ↑

prev top next

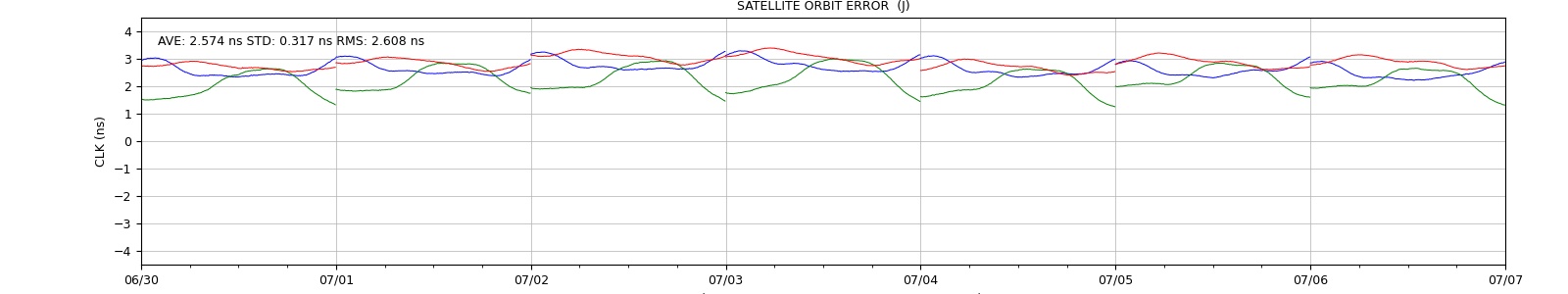

QZSS Orbit/Clock Errors wrt COM(GPS Week 2321, 2024/06/30-2024/07/06) ↑

prev top next

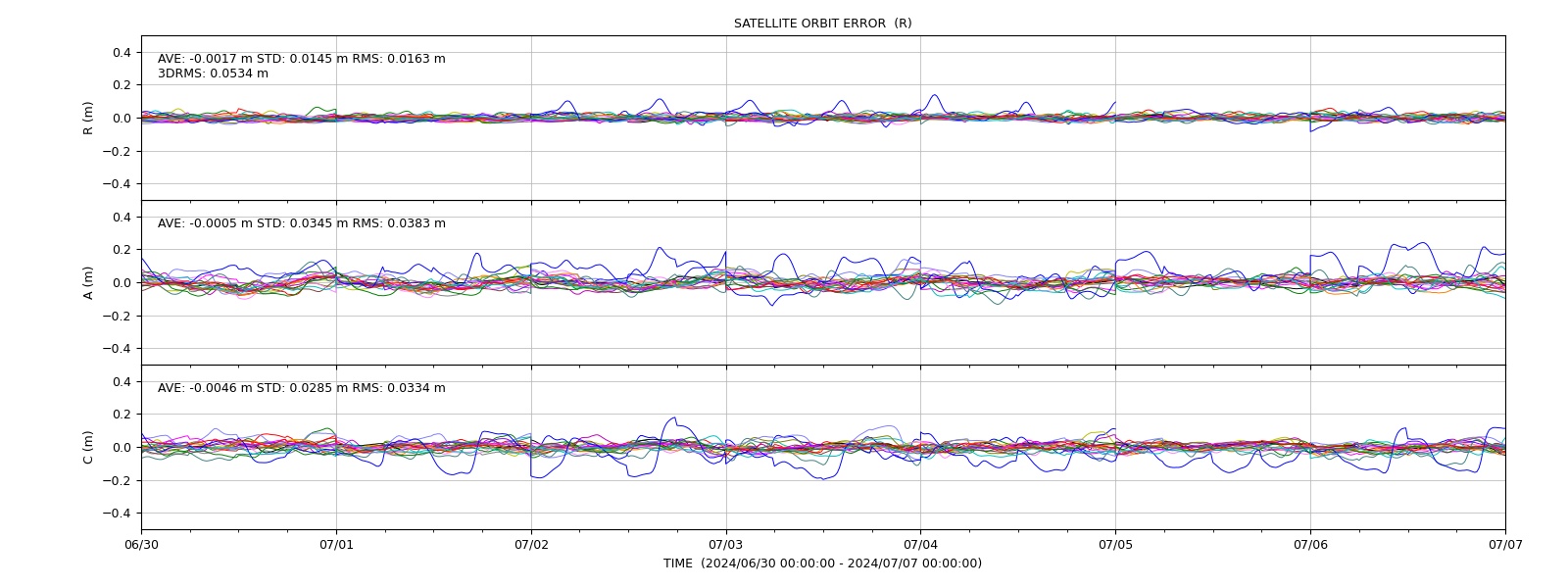

GLONASS Orbit Errors wrt IGV(GPS Week 2321, 2024/06/30-2024/07/06) ↑

prev top next

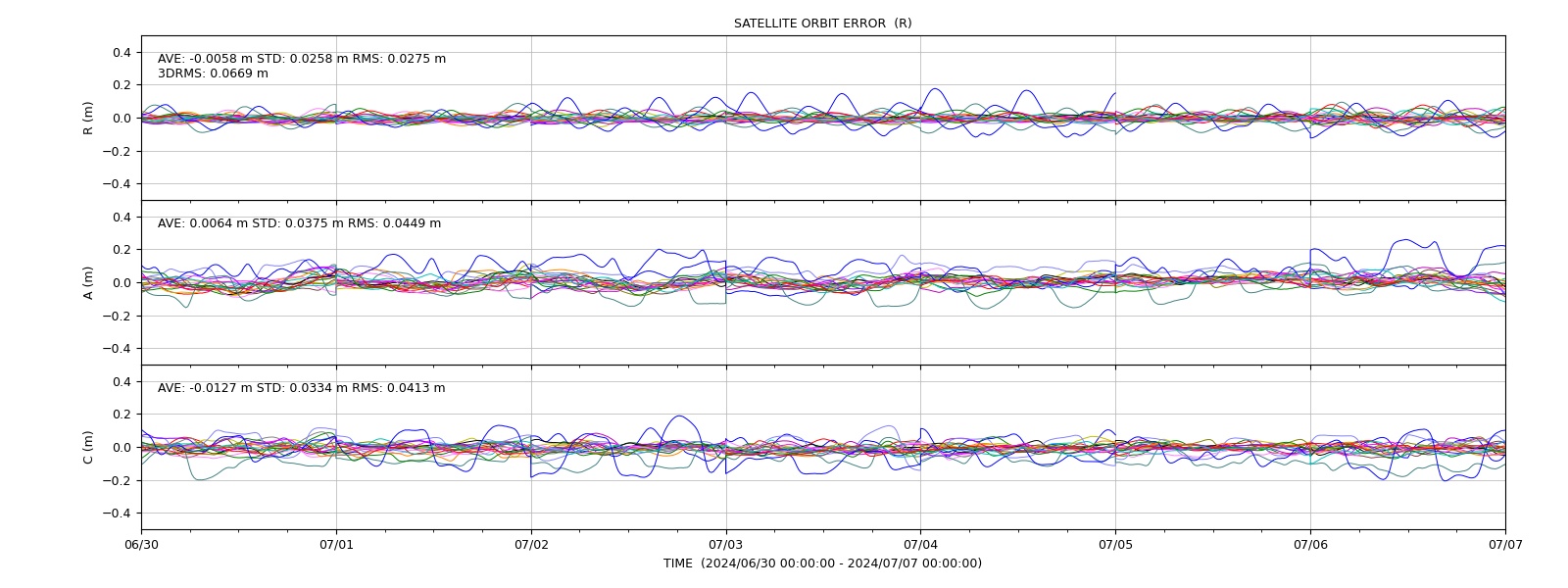

GLONASS Orbit/Clock Errors wrt IAC(GPS Week 2321, 2024/06/30-2024/07/06) ↑

prev top next

Galileo Orbit/Clock Errors wrt GBM(GPS Week 2321, 2024/06/30-2024/07/06) ↑

prev top next

BeiDou(GEO) Orbit/Clock Errors wrt GBM(GPS Week 2321, 2024/06/30-2024/07/06) ↑

prev top next

BeiDou(IGSO) Orbit/Clock Errors wrt GBM(GPS Week 2321, 2024/06/30-2024/07/06) ↑

prev top next

BeiDou(MEO) Orbit/Clock Errors wrt GBM(GPS Week 2321, 2024/06/30-2024/07/06) ↑

prev top next

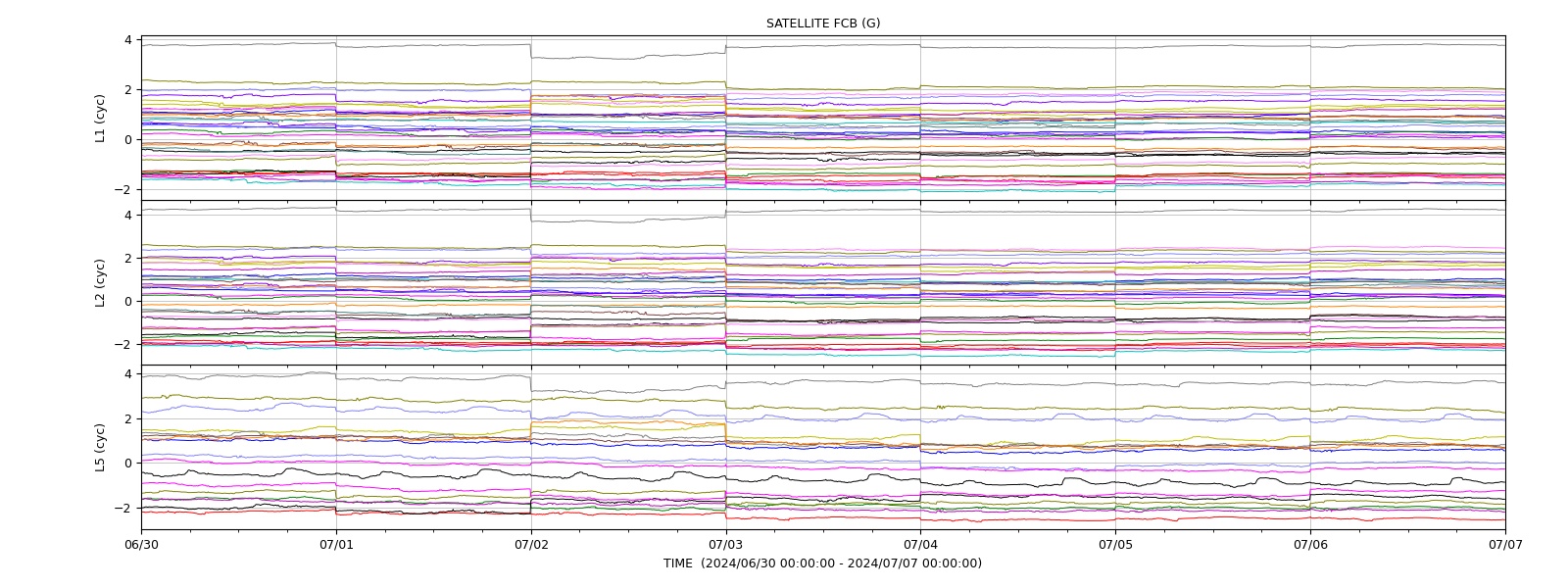

GPS FCB (GPS Week 2321, 2024/06/30-2024/07/06) ↑

prev top next

QZSS FCB (GPS Week 2321, 2024/06/30-2024/07/06) ↑

prev top next

Galileo FCB (GPS Week 2321, 2024/06/30-2024/07/06) ↑

prev top next

BeiDou FCB (GPS Week 2321, 2024/06/30-2024/07/06) ↑

prev top next

update: 2024-07-22 22:39:33 UTC

The products are for test and evaluation purpose only.
