MADOCA: Final Products(JXF) Quality Monitor

GPS Week 2327, 2024/08/11-2024/08/17

MADOCA: Final Products(JXF) Quality Monitor

Graph:

GPS , GLONASS , QZSS , Galileo , BeiDou , GPS Satellite Clock , FCB

JXF Monitor Statistics

prev top next

Date DOY Product GPS Errors wrt IGR QZS Errors wrt COM GLONASS Errors wrt IGV GLONASS Errors wrt IAC Galileo Errors wrt GBM BeiDou(GEO) Errors wrt GBM BeiDou(IGSO) Errors wrt GBM BeiDou(MEO) Errors wrt GBM Result Files

Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns)

R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D

RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS

- - Total 0.0099 0.0134 0.0111 0.0200 0.0470 0.3400 0.1722 0.0507 0.0296 0.1820 0.4610 2.2360 0.0227 0.0397 0.0339 0.0569 0.0430 0.2258 0.2767 0.3597 0.1920 1.0120 0.0178 0.0182 0.0175 0.0309 0.1300 0.1460 0.4662 4.8504 0.6504 4.9160 5.0270 38.4100 0.0632 0.0955 0.0857 0.1430 5.1350 19.6970 0.0622 0.1558 0.1141 0.2029 5.1620 23.6570 jxf2327.tar.gz

2024/08/17 230 jxf23276 0.0114 0.0170 0.0119 0.0236 0.0370 0.3490 0.1705 0.0587 0.0209 0.1815 0.4550 2.2220 0.0213 0.0404 0.0341 0.0570 0.0305 0.0472 0.0476 0.0737 0.1150 0.9340 0.0168 0.0214 0.0192 0.0333 0.0540 0.1700 0.2269 5.5902 0.7024 5.6387 1.8810 27.3030 0.0627 0.0887 0.0881 0.1398 1.8800 11.8790 0.0475 0.0760 0.0511 0.1032 1.8760 15.1340 jxf23276.tar.gz

2024/08/16 229 jxf23275 0.0098 0.0127 0.0115 0.0197 0.0330 0.3260 0.1763 0.0631 0.0202 0.1883 0.4610 2.1750 0.0198 0.0361 0.0339 0.0534 0.0362 0.0515 0.0527 0.0821 0.1540 0.9910 0.0192 0.0173 0.0169 0.0309 0.0560 0.1550 1.0478 5.3030 0.6499 5.4445 3.1720 36.5570 0.0770 0.1001 0.0816 0.1504 2.5270 18.8120 0.0387 0.0925 0.0500 0.1120 2.4690 22.3460 jxf23275.tar.gz

2024/08/15 228 jxf23274 0.0088 0.0098 0.0100 0.0166 0.0290 0.3370 0.1713 0.0538 0.0405 0.1841 0.4550 2.2830 0.0227 0.0387 0.0351 0.0569 0.0429 0.0484 0.0546 0.0846 0.1630 1.1060 0.0167 0.0121 0.0163 0.0263 0.0520 0.1460 0.2194 5.5077 0.7822 5.5672 2.7680 31.4050 0.0540 0.1031 0.0908 0.1476 2.6960 13.2180 0.0437 0.0529 0.0438 0.0814 2.7000 17.7940 jxf23274.tar.gz

2024/08/14 227 jxf23273 0.0096 0.0111 0.0108 0.0182 0.0330 0.3490 0.1729 0.0658 0.0329 0.1879 0.4680 2.2770 0.0293 0.0393 0.0327 0.0589 0.0401 0.0447 0.0540 0.0808 0.1600 1.1070 0.0181 0.0156 0.0179 0.0298 0.0500 0.1520 0.2167 5.0747 0.7389 5.1328 1.6040 39.9160 0.0640 0.1059 0.0893 0.1526 1.7600 21.3000 0.0612 0.0588 0.0387 0.0932 1.8730 25.9620 jxf23273.tar.gz

2024/08/13 226 jxf23272 0.0099 0.0141 0.0099 0.0199 0.0350 0.3280 0.1713 0.0313 0.0381 0.1782 0.4660 2.2920 0.0254 0.0423 0.0355 0.0608 0.0388 0.0515 0.0554 0.0850 0.1710 1.0370 0.0176 0.0186 0.0156 0.0300 0.0470 0.1270 0.2219 4.5471 0.5524 4.5859 1.6480 41.8470 0.0638 0.0886 0.0766 0.1334 1.6310 22.7280 0.0396 0.0938 0.0574 0.1169 1.7050 27.9960 jxf23272.tar.gz

2024/08/12 225 jxf23271 0.0091 0.0145 0.0119 0.0209 0.0330 0.3420 0.1809 0.0412 0.0242 0.1871 0.4710 2.2960 0.0215 0.0402 0.0325 0.0560 0.0668 0.5736 0.7061 0.9122 0.1510 0.9730 0.0184 0.0206 0.0186 0.0333 0.0610 0.1230 0.2088 3.8499 0.4998 3.8878 2.0930 41.7200 0.0640 0.0882 0.0922 0.1427 2.1920 22.6180 0.0956 0.2828 0.2540 0.3919 2.1240 27.9000 jxf23271.tar.gz

2024/08/11 224 jxf23270 0.0106 0.0128 0.0116 0.0203 0.0380 0.3480 0.1620 0.0261 0.0230 0.1657 0.4010 2.1050 0.0169 0.0407 0.0340 0.0556 0.0345 0.0620 0.0712 0.1005 0.1250 0.9300 0.0181 0.0204 0.0176 0.0324 0.0570 0.1420 0.2236 4.3156 0.6502 4.3701 2.0930 42.4950 0.0539 0.0918 0.0804 0.1334 2.1040 23.7320 0.0948 0.2787 0.1591 0.3346 2.2270 28.8440 jxf23270.tar.gz

GPS Orbit/Clock Errors wrt IGR(GPS Week 2327, 2024/08/11-2024/08/17) ↑

prev top next

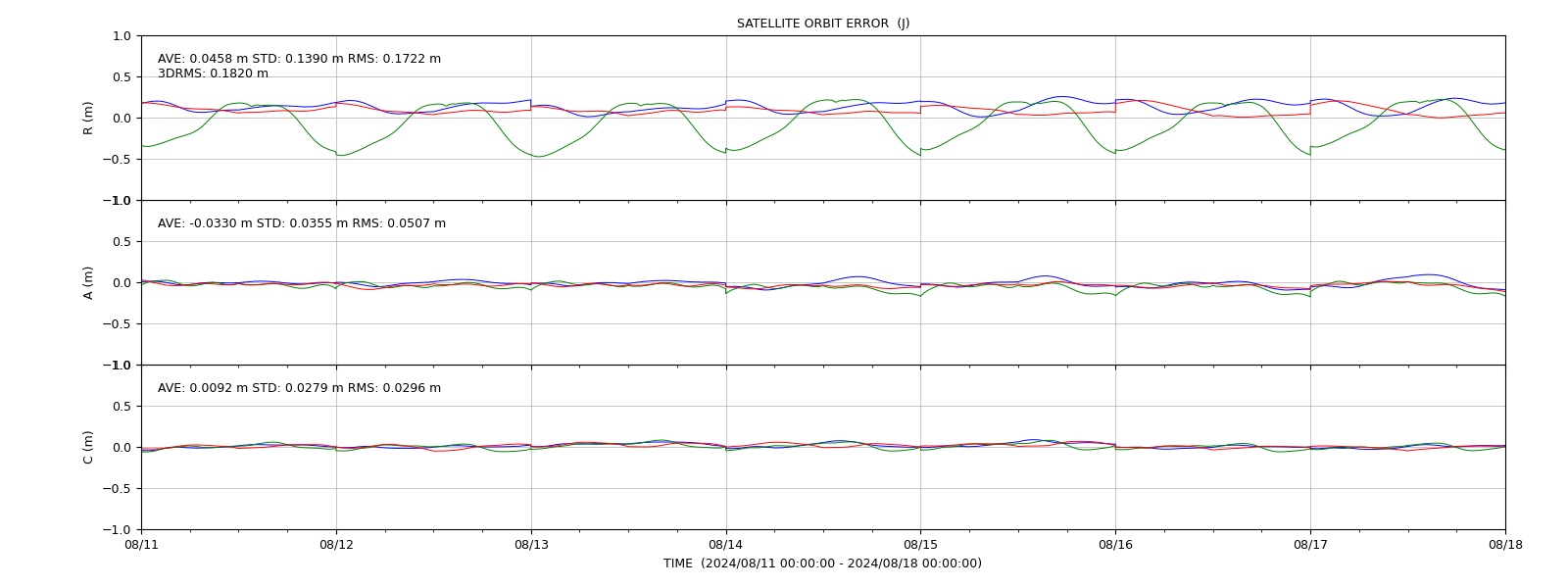

QZSS Orbit/Clock Errors wrt COM(GPS Week 2327, 2024/08/11-2024/08/17) ↑

prev top next

GLONASS Orbit Errors wrt IGV(GPS Week 2327, 2024/08/11-2024/08/17) ↑

prev top next

GLONASS Orbit/Clock Errors wrt IAC(GPS Week 2327, 2024/08/11-2024/08/17) ↑

prev top next

Galileo Orbit/Clock Errors wrt GBM(GPS Week 2327, 2024/08/11-2024/08/17) ↑

prev top next

BeiDou(GEO) Orbit/Clock Errors wrt GBM(GPS Week 2327, 2024/08/11-2024/08/17) ↑

prev top next

BeiDou(IGSO) Orbit/Clock Errors wrt GBM(GPS Week 2327, 2024/08/11-2024/08/17) ↑

prev top next

BeiDou(MEO) Orbit/Clock Errors wrt GBM(GPS Week 2327, 2024/08/11-2024/08/17) ↑

prev top next

GPS FCB (GPS Week 2327, 2024/08/11-2024/08/17) ↑

prev top next

QZSS FCB (GPS Week 2327, 2024/08/11-2024/08/17) ↑

prev top next

Galileo FCB (GPS Week 2327, 2024/08/11-2024/08/17) ↑

prev top next

BeiDou FCB (GPS Week 2327, 2024/08/11-2024/08/17) ↑

prev top next

update: 2024-09-04 02:10:19 UTC

The products are for test and evaluation purpose only.

Date	DOY	Product	GPS Errors wrt IGR						QZS Errors wrt COM						GLONASS Errors wrt IGV				GLONASS Errors wrt IAC						Galileo Errors wrt GBM						BeiDou(GEO) Errors wrt GBM						BeiDou(IGSO) Errors wrt GBM						BeiDou(MEO) Errors wrt GBM						Result Files
			Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)		Orbit(m)				Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)
			R	A	C	3D	Clock(ns)		R	A	C	3D	Clock(ns)		R	A	C	3D	R	A	C	3D	Clock(ns)		R	A	C	3D	Clock(ns)		R	A	C	3D	Clock(ns)		R	A	C	3D	Clock(ns)		R	A	C	3D	Clock(ns)
			RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS
-	-	Total	0.0099	0.0134	0.0111	0.0200	0.0470	0.3400	0.1722	0.0507	0.0296	0.1820	0.4610	2.2360	0.0227	0.0397	0.0339	0.0569	0.0430	0.2258	0.2767	0.3597	0.1920	1.0120	0.0178	0.0182	0.0175	0.0309	0.1300	0.1460	0.4662	4.8504	0.6504	4.9160	5.0270	38.4100	0.0632	0.0955	0.0857	0.1430	5.1350	19.6970	0.0622	0.1558	0.1141	0.2029	5.1620	23.6570	jxf2327.tar.gz
2024/08/17	230	jxf23276	0.0114	0.0170	0.0119	0.0236	0.0370	0.3490	0.1705	0.0587	0.0209	0.1815	0.4550	2.2220	0.0213	0.0404	0.0341	0.0570	0.0305	0.0472	0.0476	0.0737	0.1150	0.9340	0.0168	0.0214	0.0192	0.0333	0.0540	0.1700	0.2269	5.5902	0.7024	5.6387	1.8810	27.3030	0.0627	0.0887	0.0881	0.1398	1.8800	11.8790	0.0475	0.0760	0.0511	0.1032	1.8760	15.1340	jxf23276.tar.gz
2024/08/16	229	jxf23275	0.0098	0.0127	0.0115	0.0197	0.0330	0.3260	0.1763	0.0631	0.0202	0.1883	0.4610	2.1750	0.0198	0.0361	0.0339	0.0534	0.0362	0.0515	0.0527	0.0821	0.1540	0.9910	0.0192	0.0173	0.0169	0.0309	0.0560	0.1550	1.0478	5.3030	0.6499	5.4445	3.1720	36.5570	0.0770	0.1001	0.0816	0.1504	2.5270	18.8120	0.0387	0.0925	0.0500	0.1120	2.4690	22.3460	jxf23275.tar.gz
2024/08/15	228	jxf23274	0.0088	0.0098	0.0100	0.0166	0.0290	0.3370	0.1713	0.0538	0.0405	0.1841	0.4550	2.2830	0.0227	0.0387	0.0351	0.0569	0.0429	0.0484	0.0546	0.0846	0.1630	1.1060	0.0167	0.0121	0.0163	0.0263	0.0520	0.1460	0.2194	5.5077	0.7822	5.5672	2.7680	31.4050	0.0540	0.1031	0.0908	0.1476	2.6960	13.2180	0.0437	0.0529	0.0438	0.0814	2.7000	17.7940	jxf23274.tar.gz
2024/08/14	227	jxf23273	0.0096	0.0111	0.0108	0.0182	0.0330	0.3490	0.1729	0.0658	0.0329	0.1879	0.4680	2.2770	0.0293	0.0393	0.0327	0.0589	0.0401	0.0447	0.0540	0.0808	0.1600	1.1070	0.0181	0.0156	0.0179	0.0298	0.0500	0.1520	0.2167	5.0747	0.7389	5.1328	1.6040	39.9160	0.0640	0.1059	0.0893	0.1526	1.7600	21.3000	0.0612	0.0588	0.0387	0.0932	1.8730	25.9620	jxf23273.tar.gz
2024/08/13	226	jxf23272	0.0099	0.0141	0.0099	0.0199	0.0350	0.3280	0.1713	0.0313	0.0381	0.1782	0.4660	2.2920	0.0254	0.0423	0.0355	0.0608	0.0388	0.0515	0.0554	0.0850	0.1710	1.0370	0.0176	0.0186	0.0156	0.0300	0.0470	0.1270	0.2219	4.5471	0.5524	4.5859	1.6480	41.8470	0.0638	0.0886	0.0766	0.1334	1.6310	22.7280	0.0396	0.0938	0.0574	0.1169	1.7050	27.9960	jxf23272.tar.gz
2024/08/12	225	jxf23271	0.0091	0.0145	0.0119	0.0209	0.0330	0.3420	0.1809	0.0412	0.0242	0.1871	0.4710	2.2960	0.0215	0.0402	0.0325	0.0560	0.0668	0.5736	0.7061	0.9122	0.1510	0.9730	0.0184	0.0206	0.0186	0.0333	0.0610	0.1230	0.2088	3.8499	0.4998	3.8878	2.0930	41.7200	0.0640	0.0882	0.0922	0.1427	2.1920	22.6180	0.0956	0.2828	0.2540	0.3919	2.1240	27.9000	jxf23271.tar.gz
2024/08/11	224	jxf23270	0.0106	0.0128	0.0116	0.0203	0.0380	0.3480	0.1620	0.0261	0.0230	0.1657	0.4010	2.1050	0.0169	0.0407	0.0340	0.0556	0.0345	0.0620	0.0712	0.1005	0.1250	0.9300	0.0181	0.0204	0.0176	0.0324	0.0570	0.1420	0.2236	4.3156	0.6502	4.3701	2.0930	42.4950	0.0539	0.0918	0.0804	0.1334	2.1040	23.7320	0.0948	0.2787	0.1591	0.3346	2.2270	28.8440	jxf23270.tar.gz
