MADOCA: Final Products(JXF) Quality Monitor

GPS Week 2329, 2024/08/25-2024/08/31

MADOCA: Final Products(JXF) Quality Monitor

Graph:

GPS , GLONASS , QZSS , Galileo , BeiDou , GPS Satellite Clock , FCB

JXF Monitor Statistics

prev top next

Date DOY Product GPS Errors wrt IGR QZS Errors wrt COM GLONASS Errors wrt IGV GLONASS Errors wrt IAC Galileo Errors wrt GBM BeiDou(GEO) Errors wrt GBM BeiDou(IGSO) Errors wrt GBM BeiDou(MEO) Errors wrt GBM Result Files

Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns)

R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D

RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS

- - Total 0.0101 0.0145 0.0111 0.0208 0.0450 0.3310 0.1497 0.0472 0.0377 0.1614 0.4350 2.2550 0.0244 0.0372 0.0326 0.0552 0.0339 0.0470 0.0488 0.0757 0.1880 1.0200 0.0171 0.0189 0.0168 0.0305 0.1270 0.1380 0.4524 4.6557 0.3054 4.6876 19.8260 38.5270 0.0742 0.0920 0.0826 0.1442 19.3350 25.0350 0.0502 0.0774 0.0503 0.1051 19.9910 27.7730 jxf2329.tar.gz

2024/08/31 244 jxf23296 0.0094 0.0144 0.0101 0.0200 0.0310 0.3420 0.1403 0.0449 0.0403 0.1527 0.3940 2.3100 0.0212 0.0395 0.0324 0.0554 0.0324 0.0417 0.0431 0.0681 0.1280 1.0840 0.0173 0.0203 0.0159 0.0310 0.0530 0.1360 0.5781 4.6012 0.2900 4.6464 1.8870 12.8330 0.0814 0.1134 0.0916 0.1670 1.7120 29.7080 0.0454 0.0843 0.0558 0.1108 1.7110 25.8240 jxf23296.tar.gz

2024/08/30 243 jxf23295 0.0090 0.0140 0.0106 0.0197 0.0300 0.3230 0.1497 0.0669 0.0411 0.1690 0.4210 2.2090 0.0232 0.0363 0.0322 0.0537 0.0338 0.0434 0.0501 0.0743 0.1410 1.1030 0.0175 0.0197 0.0176 0.0317 0.0590 0.1170 0.5491 5.6921 0.1750 5.7212 2.2860 34.1760 0.0788 0.1068 0.0708 0.1504 1.9250 16.6000 0.0301 0.1158 0.0719 0.1396 1.9550 18.4540 jxf23295.tar.gz

2024/08/29 242 jxf23294 0.0089 0.0114 0.0106 0.0179 0.0290 0.3290 0.1530 0.0294 0.0293 0.1585 0.4410 2.2800 0.0295 0.0414 0.0359 0.0622 0.0357 0.0620 0.0641 0.0961 0.1710 1.0770 0.0172 0.0162 0.0169 0.0290 0.0510 0.1610 0.5060 4.7851 0.2185 4.8167 1.7570 35.2270 0.0735 0.1189 0.0853 0.1637 1.9010 17.6300 0.0701 0.0654 0.0472 0.1069 1.8010 21.1630 jxf23294.tar.gz

2024/08/28 241 jxf23293 0.0092 0.0120 0.0115 0.0189 0.0320 0.3380 0.1538 0.0203 0.0370 0.1595 0.4220 2.3660 0.0218 0.0340 0.0305 0.0506 0.0300 0.0434 0.0464 0.0703 0.1130 0.9900 0.0158 0.0138 0.0176 0.0274 0.0530 0.1220 0.4473 3.8856 0.1996 3.9163 2.5610 34.7860 0.0620 0.0807 0.0659 0.1212 2.8980 16.9880 0.0561 0.0608 0.0461 0.0947 2.8960 20.4920 jxf23293.tar.gz

2024/08/27 240 jxf23292 0.0152 0.0136 0.0125 0.0239 0.0500 0.3190 0.1406 0.0401 0.0364 0.1507 0.3850 2.3130 0.0199 0.0364 0.0342 0.0538 0.0292 0.0461 0.0465 0.0717 0.1230 0.9330 0.0166 0.0159 0.0141 0.0269 0.0520 0.1540 0.3341 4.4000 0.2622 4.4204 1.9160 44.5580 0.0801 0.0665 0.0829 0.1331 1.8500 28.3190 0.0539 0.0821 0.0495 0.1100 1.9010 32.2800 jxf23292.tar.gz

2024/08/26 239 jxf23291 0.0084 0.0166 0.0112 0.0217 0.0300 0.3300 0.1599 0.0436 0.0406 0.1706 0.4600 2.1540 0.0248 0.0361 0.0307 0.0535 0.0268 0.0473 0.0448 0.0705 0.1120 0.9610 0.0181 0.0217 0.0158 0.0324 0.0530 0.1410 0.3386 5.3988 0.3749 5.4223 1.3720 49.4950 0.0618 0.0731 0.0735 0.1206 1.5040 29.4830 0.0390 0.0774 0.0446 0.0974 1.6190 33.4730 jxf23291.tar.gz

2024/08/25 238 jxf23290 0.0087 0.0181 0.0112 0.0230 0.0300 0.3350 0.1495 0.0658 0.0376 0.1676 0.4230 2.1430 0.0293 0.0363 0.0327 0.0570 0.0463 0.0431 0.0443 0.0772 0.1500 0.9810 0.0175 0.0228 0.0190 0.0344 0.0490 0.1330 0.2790 3.5617 0.4958 3.6068 1.6190 49.5190 0.0786 0.0676 0.1022 0.1456 1.5830 30.9560 0.0406 0.0567 0.0390 0.0799 1.6710 34.8700 jxf23290.tar.gz

GPS Orbit/Clock Errors wrt IGR(GPS Week 2329, 2024/08/25-2024/08/31) ↑

prev top next

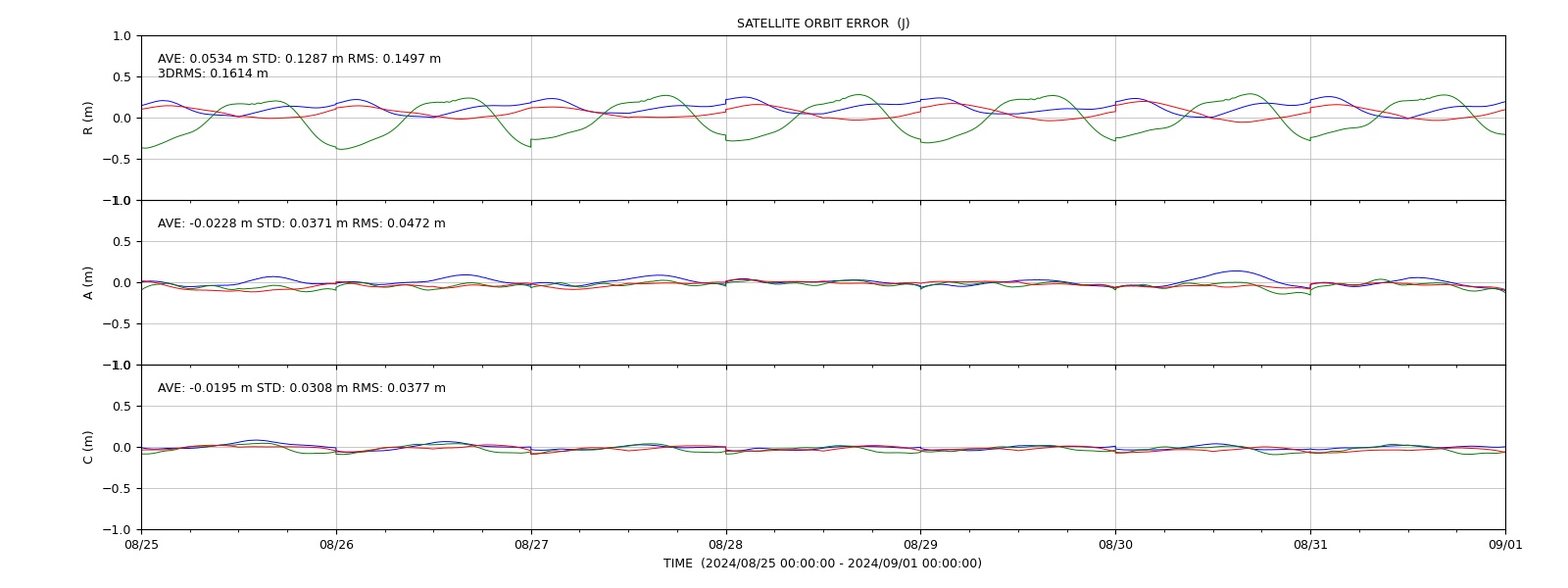

QZSS Orbit/Clock Errors wrt COM(GPS Week 2329, 2024/08/25-2024/08/31) ↑

prev top next

GLONASS Orbit Errors wrt IGV(GPS Week 2329, 2024/08/25-2024/08/31) ↑

prev top next

GLONASS Orbit/Clock Errors wrt IAC(GPS Week 2329, 2024/08/25-2024/08/31) ↑

prev top next

Galileo Orbit/Clock Errors wrt GBM(GPS Week 2329, 2024/08/25-2024/08/31) ↑

prev top next

BeiDou(GEO) Orbit/Clock Errors wrt GBM(GPS Week 2329, 2024/08/25-2024/08/31) ↑

prev top next

BeiDou(IGSO) Orbit/Clock Errors wrt GBM(GPS Week 2329, 2024/08/25-2024/08/31) ↑

prev top next

BeiDou(MEO) Orbit/Clock Errors wrt GBM(GPS Week 2329, 2024/08/25-2024/08/31) ↑

prev top next

GPS FCB (GPS Week 2329, 2024/08/25-2024/08/31) ↑

prev top next

QZSS FCB (GPS Week 2329, 2024/08/25-2024/08/31) ↑

prev top next

Galileo FCB (GPS Week 2329, 2024/08/25-2024/08/31) ↑

prev top next

BeiDou FCB (GPS Week 2329, 2024/08/25-2024/08/31) ↑

prev top next

update: 2024-09-16 22:44:36 UTC

The products are for test and evaluation purpose only.
