GPS Week 2310, 2024/04/14-2024/04/20 MADOCA: Real-Time Products Quality Monitor

---

Graph:

MGRT1:GPS , GLONASS , QZSS , Galileo , FCB
MGRT2:GPS , GLONASS , QZSS , Galileo , FCB
MGRT3:GPS , Galileo , BeiDou , FCB

MGRT1 Monitor Statistics

prev

top

next

Product	GPS Errors wrt IGU						QZS Errors wrt JXR						QZS Errors wrt COM						GLONASS Errors wrt IGV				GLONASS Errors wrt IAC						GLONASS Errors wrt JXR		Galileo Errors wrt GBM						Result Files
	Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)		Orbit(m)				Orbit(m)				Clock(ns)		Clock(ns)		Orbit(m)				Clock(ns)
	R	A	C	3D			R	A	C	3D			R	A	C	3D			R	A	C	3D	R	A	C	3D					R	A	C	3D
	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	RMS	RMS	RMS	RMS	STD	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS
Total	0.0217	0.0343	0.0291	0.0500	0.1200	0.6690	0.0831	0.1221	0.0806	0.1683	0.2730	3.1760	0.1564	0.1254	0.0774	0.2149	0.4750	0.9840	0.0250	0.0743	0.0698	0.1050	0.0321	0.0773	0.0740	0.1117	0.2290	0.9280	0.2380	0.6360	0.0313	0.0403	0.0526	0.0733	0.1580	0.1730	mgrt12310.tar.gz
2024/04/20	0.0168	0.0241	0.0242	0.0380	0.1050	0.6260	0.0776	0.1043	0.0886	0.1573	0.2280	3.2700	0.1639	0.1351	0.0758	0.2255	0.4800	1.0370	0.0285	0.0817	0.0731	0.1132	0.0346	0.0884	0.0812	0.1249	0.1940	0.8680	0.1520	0.6730	0.0351	0.0412	0.0509	0.0743	0.1150	0.1700	mgrt123106.tar.gz
2024/04/19	0.0185	0.0287	0.0260	0.0430	0.1000	0.6650	0.0954	0.1100	0.0883	0.1703	0.2870	3.3480	0.1701	0.1328	0.0829	0.2312	0.5080	1.0580	0.0287	0.0843	0.0753	0.1166	0.0325	0.0838	0.0799	0.1203	0.1700	0.8550	0.1700	0.6950	0.0342	0.0396	0.0514	0.0733	0.1140	0.1830	mgrt123105.tar.gz
2024/04/18	0.0297	0.0649	0.0485	0.0863	0.1310	0.6790	0.0888	0.1459	0.0768	0.1873	0.2110	3.2230	0.1681	0.1331	0.0822	0.2296	0.4960	1.1160	0.0275	0.0794	0.0751	0.1127	0.0342	0.0784	0.0778	0.1157	0.1870	0.8880	0.1640	0.6170	0.0334	0.0534	0.0649	0.0905	0.1160	0.1820	mgrt123104.tar.gz
2024/04/17	0.0298	0.0316	0.0306	0.0531	0.1140	0.6730	0.0853	0.1488	0.0888	0.1931	0.1980	3.2510	0.1512	0.1381	0.0762	0.2185	0.4500	1.0080	0.0259	0.0729	0.0693	0.1039	0.0322	0.0755	0.0707	0.1083	0.1670	0.9510	0.1350	0.6490	0.0324	0.0370	0.0483	0.0689	0.1000	0.1510	mgrt123103.tar.gz
2024/04/16	0.0166	0.0235	0.0219	0.0362	0.0870	0.6750	0.0775	0.1235	0.0677	0.1608	0.2550	3.1000	0.1552	0.1165	0.0681	0.2057	0.4820	0.9520	0.0214	0.0671	0.0657	0.0963	0.0300	0.0752	0.0704	0.1073	0.1670	0.9840	0.1540	0.4690	0.0325	0.0364	0.0491	0.0692	0.1040	0.1810	mgrt123102.tar.gz
2024/04/15	0.0174	0.0246	0.0224	0.0376	0.0910	0.6790	0.0728	0.0958	0.0753	0.1419	0.2060	3.0530	0.1446	0.0947	0.0785	0.1899	0.4120	0.8600	0.0211	0.0646	0.0612	0.0915	0.0326	0.0680	0.0704	0.1031	0.1690	0.9920	0.1500	0.6820	0.0266	0.0365	0.0522	0.0691	0.0870	0.1750	mgrt123101.tar.gz
2024/04/14	0.0174	0.0233	0.0210	0.0359	0.0900	0.6860	0.0810	0.1164	0.0756	0.1607	0.2620	2.9600	0.1391	0.1215	0.0775	0.2003	0.3990	0.8170	0.0207	0.0679	0.0675	0.0980	0.0284	0.0700	0.0665	0.1006	0.1560	0.9470	0.1560	0.6180	0.0224	0.0351	0.0497	0.0649	0.0750	0.1700	mgrt123100.tar.gz

MGRT2 Monitor Statistics

prev

top

next

Product	GPS Errors wrt IGU						QZS Errors wrt JXR						QZS Errors wrt COM						GLONASS Errors wrt IGV				GLONASS Errors wrt IAC						GLONASS Errors wrt JXR		Galileo Errors wrt GBM						Result Files
	Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)		Orbit(m)				Orbit(m)				Clock(ns)		Clock(ns)		Orbit(m)				Clock(ns)
	R	A	C	3D			R	A	C	3D			R	A	C	3D			R	A	C	3D	R	A	C	3D					R	A	C	3D
	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	RMS	RMS	RMS	RMS	STD	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS
Total	0.0216	0.0343	0.0292	0.0499	0.1200	0.6680	0.0838	0.1315	0.0817	0.1761	0.2710	3.2670	0.1548	0.1258	0.0787	0.2144	0.4730	1.0640	0.0250	0.0744	0.0698	0.1051	0.0321	0.0775	0.0741	0.1119	0.2310	0.9250	0.2390	0.6410	0.0311	0.0398	0.0523	0.0727	0.1570	0.1730	mgrt22310.tar.gz
2024/04/20	0.0168	0.0240	0.0242	0.0380	0.1040	0.6220	0.0774	0.1169	0.0916	0.1675	0.2280	3.3530	0.1621	0.1324	0.0786	0.2236	0.4770	1.1100	0.0285	0.0821	0.0732	0.1136	0.0347	0.0888	0.0811	0.1252	0.1940	0.8620	0.1510	0.6790	0.0350	0.0409	0.0510	0.0741	0.1150	0.1730	mgrt223106.tar.gz
2024/04/19	0.0187	0.0288	0.0263	0.0433	0.1010	0.6630	0.0966	0.1241	0.0878	0.1801	0.2880	3.4370	0.1683	0.1253	0.0837	0.2259	0.5090	1.1370	0.0288	0.0844	0.0754	0.1168	0.0325	0.0839	0.0800	0.1204	0.1700	0.8490	0.1710	0.6980	0.0338	0.0393	0.0511	0.0728	0.1130	0.1800	mgrt223105.tar.gz
2024/04/18	0.0296	0.0647	0.0483	0.0860	0.1310	0.6780	0.0896	0.1585	0.0786	0.1983	0.2100	3.3130	0.1664	0.1383	0.0851	0.2325	0.4920	1.1960	0.0275	0.0794	0.0752	0.1128	0.0342	0.0787	0.0780	0.1159	0.1890	0.8830	0.1660	0.6200	0.0332	0.0512	0.0635	0.0881	0.1140	0.1780	mgrt223104.tar.gz
2024/04/17	0.0298	0.0315	0.0306	0.0531	0.1130	0.6720	0.0870	0.1607	0.0891	0.2033	0.1970	3.3440	0.1497	0.1441	0.0777	0.2218	0.4460	1.0920	0.0259	0.0733	0.0697	0.1044	0.0323	0.0760	0.0710	0.1089	0.1680	0.9500	0.1370	0.6560	0.0323	0.0368	0.0478	0.0684	0.1000	0.1540	mgrt223103.tar.gz
2024/04/16	0.0166	0.0237	0.0222	0.0365	0.0870	0.6750	0.0787	0.1312	0.0693	0.1680	0.2550	3.1970	0.1541	0.1173	0.0675	0.2051	0.4830	1.0370	0.0214	0.0672	0.0657	0.0964	0.0300	0.0753	0.0707	0.1076	0.1670	0.9810	0.1550	0.4780	0.0323	0.0364	0.0494	0.0694	0.1040	0.1830	mgrt223102.tar.gz
2024/04/15	0.0173	0.0241	0.0225	0.0372	0.0910	0.6770	0.0734	0.1017	0.0773	0.1474	0.2050	3.1490	0.1431	0.0968	0.0803	0.1906	0.4090	0.9440	0.0212	0.0647	0.0612	0.0915	0.0326	0.0684	0.0704	0.1034	0.1700	0.9950	0.1500	0.6880	0.0264	0.0366	0.0524	0.0692	0.0870	0.1780	mgrt223101.tar.gz
2024/04/14	0.0174	0.0232	0.0209	0.0358	0.0900	0.6840	0.0804	0.1163	0.0750	0.1600	0.2570	3.0540	0.1372	0.1203	0.0768	0.1980	0.3970	0.8990	0.0206	0.0676	0.0673	0.0976	0.0283	0.0695	0.0664	0.1002	0.1550	0.9470	0.1580	0.6220	0.0223	0.0350	0.0495	0.0646	0.0740	0.1660	mgrt223100.tar.gz

MGRT3 Monitor Statistics

prev

top

next

Product

GPS Errors wrt IGU

Galileo Errors wrt GBM

BeiDou(GEO) Errors wrt GBM

BeiDou(IGSO) Errors wrt GBM

BeiDou(MEO) Errors wrt GBM

Result Files

Orbit(m)

Clock(ns)

Orbit(m)

Clock(ns)

Orbit(m)

Clock(ns)

Orbit(m)

Clock(ns)

Orbit(m)

Clock(ns)

R

A

C

3D

R

A

C

3D

R

A

C

3D

R

A

C

3D

R

A

C

3D

RMS

RMS

RMS

RMS

STD

RMS

RMS

RMS

RMS

RMS

STD

RMS

RMS

RMS

RMS

RMS

STD

RMS

RMS

RMS

RMS

RMS

STD

RMS

RMS

RMS

RMS

RMS

STD

RMS

Total

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

mgrt32310.tar.gz

2024/04/20

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

2024/04/19

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

2024/04/18

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

2024/04/17

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

2024/04/16

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

2024/04/15

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

2024/04/14

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

MGRT1 GPS Orbit/Clock Errors wrt IGU (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

MGRT1 QZSS Orbit/Clock Errors wrt JXR (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

MGRT1 QZSS Orbit/Clock Errors wrt COM (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

MGRT1 GLONASS Orbit Errors wrt IGV (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

MGRT1 GLONASS Clock Errors wrt JXR (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

MGRT1 GLONASS Orbit/Clock Errors wrt IAC (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

MGRT1 Galileo Orbit/Clock Errors wrt GBM (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

MGRT1 GPS FCB (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

MGRT1 QZSS FCB (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

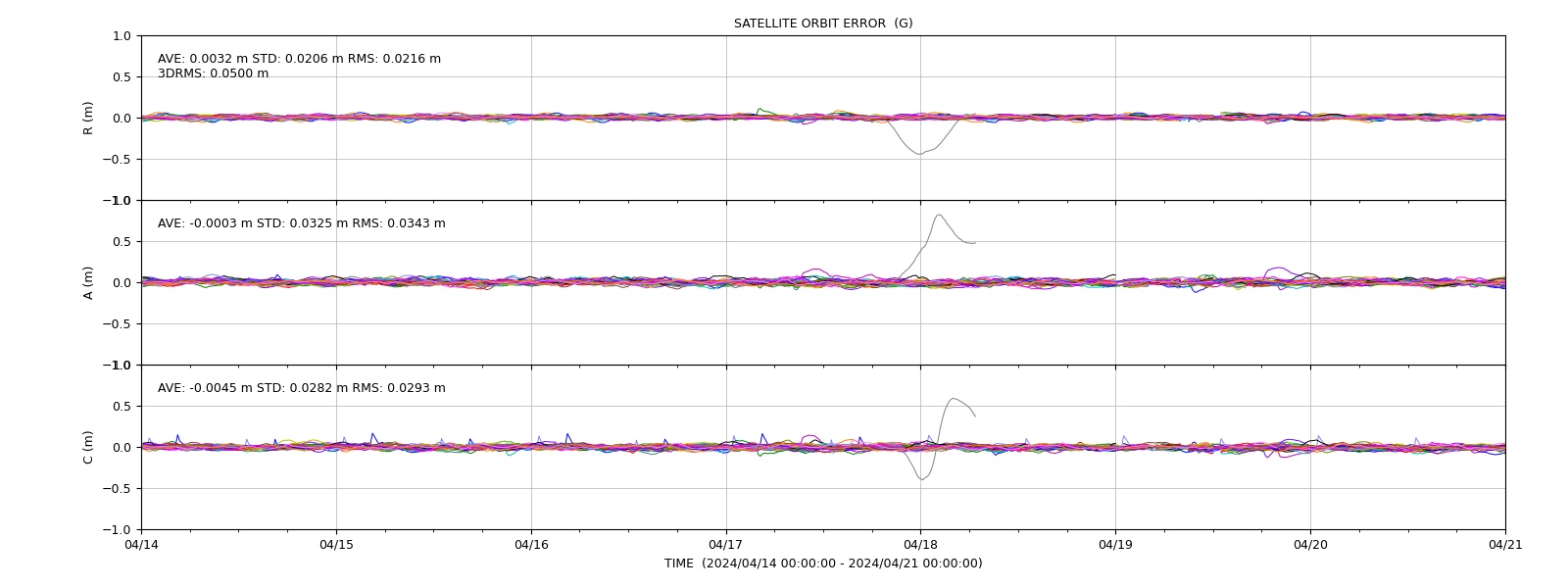

MGRT2 GPS Orbit/Clock Errors wrt IGU (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

MGRT2 QZS Orbit/Clock Errors wrt JXR (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

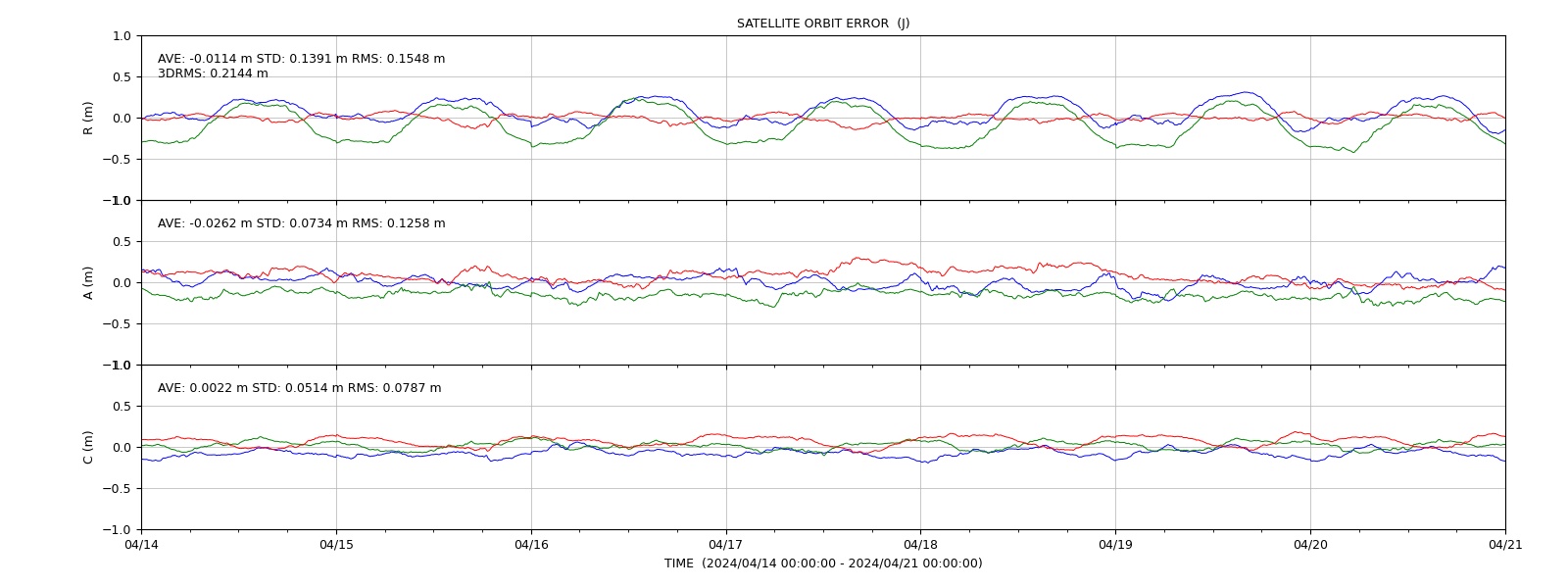

MGRT2 QZS Orbit/Clock Errors wrt COM (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

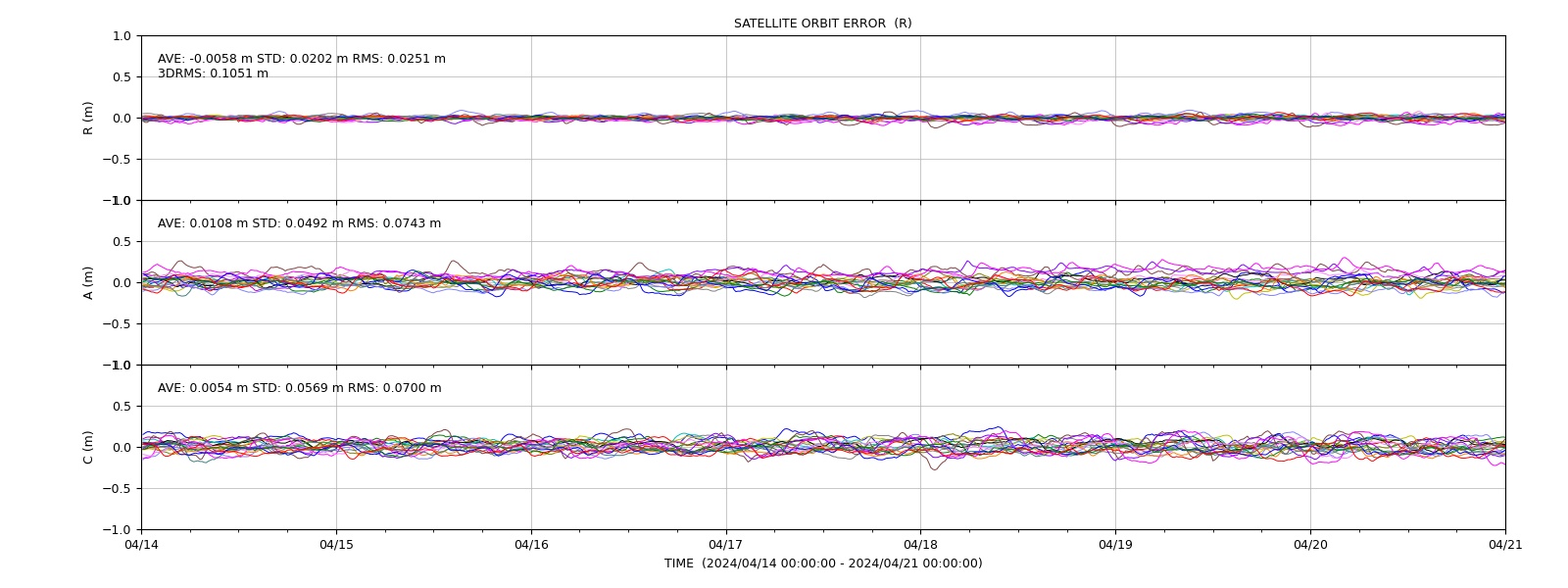

MGRT2 GLONASS Orbit Errors wrt IGV (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

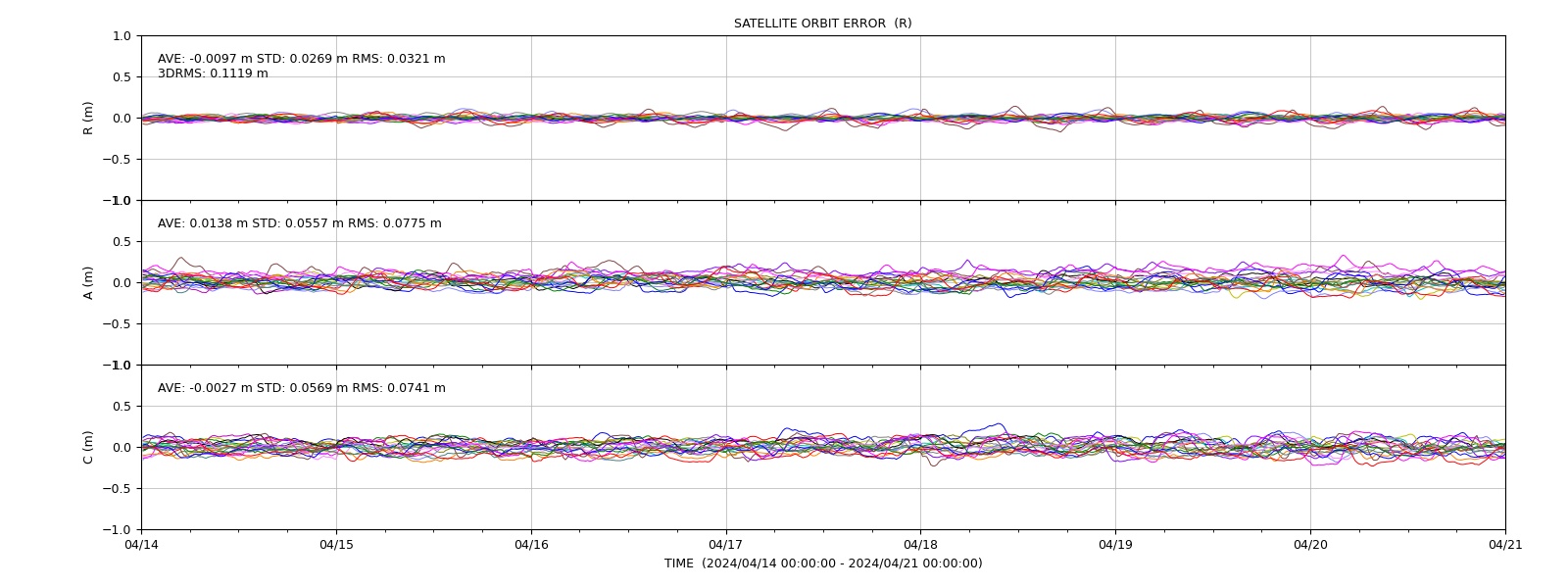

MGRT2 GLONASS Orbit/Clock Errors wrt IAC (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

MGRT2 GLONASS Clock Errors wrt JXR (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

MGRT2 Galileo Orbit/Clock Errors wrt GBM (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

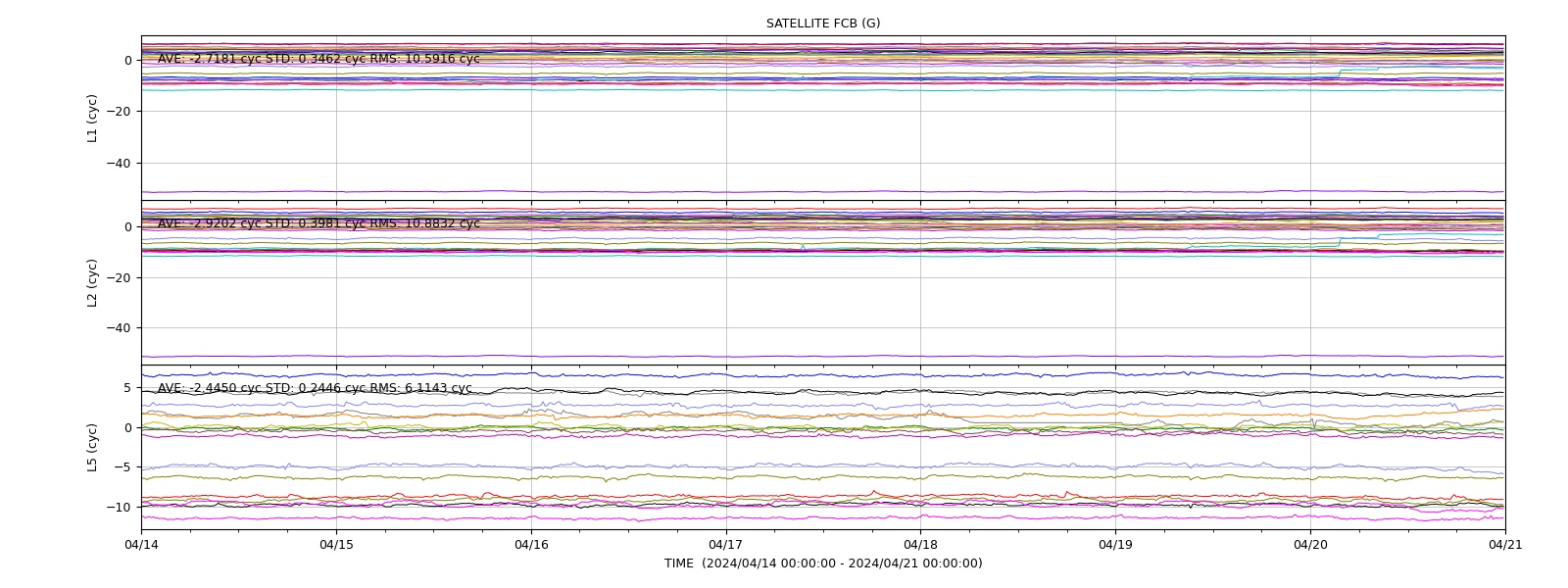

MGRT2 GPS FCB (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

MGRT2 QZSS FCB (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

MGRT3 GPS Orbit/Clock Errors wrt IGU (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

MGRT3 Galileo Orbit/Clock Errors wrt GBM (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

-     (Plot updates after 5days.)

MGRT3 BeiDou(GEO) Orbit/Clock Errors wrt GBM (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

-     (Plot updates after 5days.)

MGRT3 BeiDou(IGSO) Orbit/Clock Errors wrt GBM (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

-     (Plot updates after 5days.)

MGRT3 BeiDou(MEO) Orbit/Clock Errors wrt GBM (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

-     (Plot updates after 5days.)

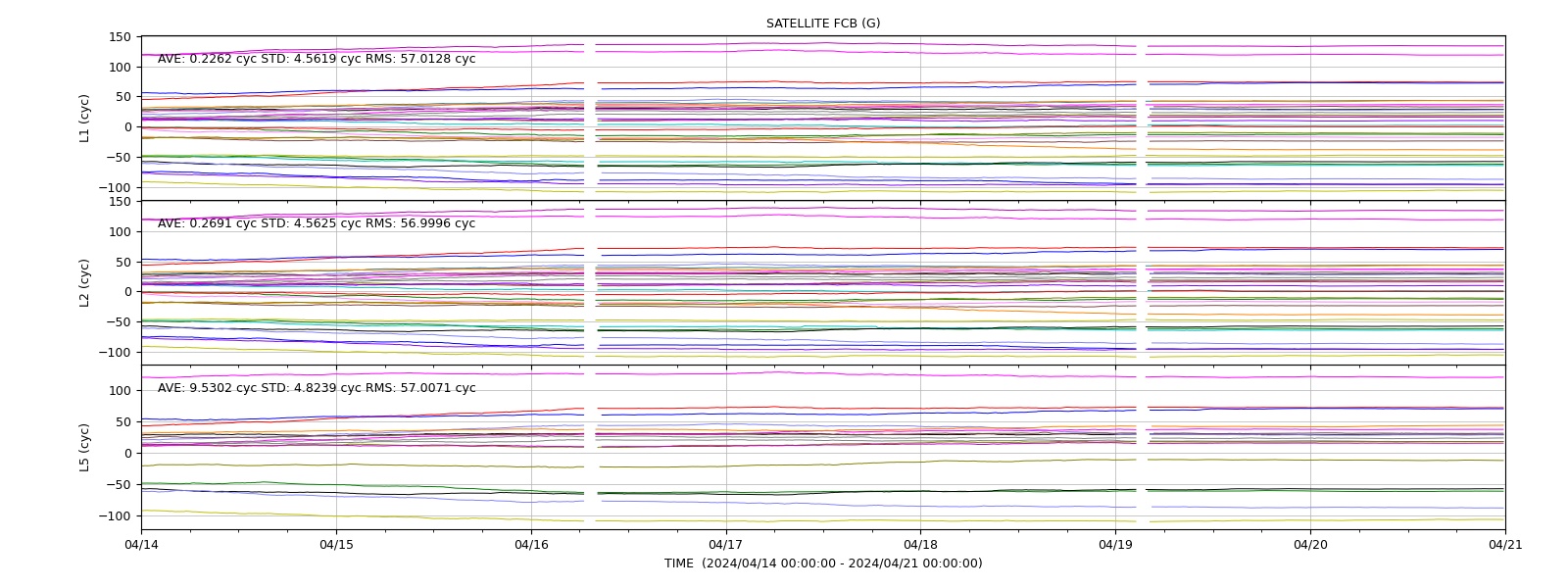

MGRT3 GPS FCB (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

MGRT3 Galileo FCB (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next

-     (Plot not updates.)


MGRT3 BeiDou FCB (GPS Week 2310, 2024/04/14-2024/04/20) ↑

prev

top

next
