GPS Week 2362, 2025/04/13-2025/04/19 MADOCA: Real-Time Products Quality Monitor

---

Graph:

MGRT1:GPS , GLONASS , QZSS , Galileo , FCB
MGRT2:GPS , GLONASS , QZSS , Galileo , FCB
MGRT3:GPS , Galileo , BeiDou , FCB

MGRT1 Monitor Statistics

prev

top

next

Product	GPS Errors wrt IGU						QZS Errors wrt JXR						QZS Errors wrt COM						GLONASS Errors wrt IGV				GLONASS Errors wrt IAC						GLONASS Errors wrt JXR		Galileo Errors wrt GBM						Result Files
	Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)		Orbit(m)				Orbit(m)				Clock(ns)		Clock(ns)		Orbit(m)				Clock(ns)
	R	A	C	3D			R	A	C	3D			R	A	C	3D			R	A	C	3D	R	A	C	3D					R	A	C	3D
	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	RMS	RMS	RMS	RMS	STD	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS
Total	0.0194	0.0303	0.0206	0.0415	0.1190	0.5380	0.1157	0.4309	0.2087	0.4925	0.3650	3.5070	0.1632	0.3440	0.1743	0.4188	0.5410	6.7200	0.0298	0.0831	0.0591	0.1063	0.0358	0.0886	0.0749	0.1214	0.5160	1.4370	0.5460	1.3510	0.0283	0.0340	0.0404	0.0599	0.1400	0.1650	mgrt12362.tar.gz
2025/04/19	0.0209	0.0322	0.0200	0.0432	0.0920	0.5240	0.1212	0.4244	0.1929	0.4816	0.3450	3.6900	0.1733	0.3549	0.1656	0.4283	0.5130	7.1780	0.0276	0.0689	0.0579	0.0942	0.0347	0.0658	0.0740	0.1049	0.4760	1.3580	0.4920	1.2650	0.0289	0.0334	0.0395	0.0593	0.1020	0.1800	mgrt123626.tar.gz
2025/04/18	0.0191	0.0287	0.0200	0.0399	0.0990	0.5480	0.1182	0.4804	0.2244	0.5432	0.3150	3.6640	0.1527	0.3730	0.1750	0.4394	0.4530	6.7580	0.0299	0.0772	0.0633	0.1043	0.0377	0.0851	0.0798	0.1226	0.4710	1.4470	0.4880	1.3070	0.0298	0.0301	0.0423	0.0598	0.1030	0.1600	mgrt123625.tar.gz
2025/04/17	0.0186	0.0305	0.0221	0.0420	0.0970	0.5200	0.1095	0.4358	0.2135	0.4975	0.3020	3.7060	0.1633	0.3366	0.1781	0.4143	0.4740	6.8870	0.0295	0.0802	0.0605	0.1047	0.0358	0.0912	0.0809	0.1271	0.4730	1.5100	0.4690	1.3470	0.0280	0.0339	0.0430	0.0615	0.0960	0.1550	mgrt123624.tar.gz
2025/04/16	0.0207	0.0341	0.0215	0.0453	0.0950	0.5440	0.1043	0.4248	0.2072	0.4840	0.2760	3.4610	0.1547	0.3352	0.1735	0.4079	0.4360	6.4310	0.0316	0.0881	0.0586	0.1104	0.0359	0.0954	0.0772	0.1278	0.4660	1.4110	0.4920	1.3140	0.0261	0.0357	0.0386	0.0587	0.0910	0.1720	mgrt123623.tar.gz
2025/04/15	0.0194	0.0306	0.0204	0.0416	0.0830	0.5520	0.1154	0.4419	0.2284	0.5106	0.2850	3.3320	0.1679	0.3376	0.1826	0.4190	0.4640	6.6410	0.0298	0.0826	0.0558	0.1040	0.0334	0.0866	0.0684	0.1153	0.4940	1.4340	0.5180	1.4270	0.0270	0.0318	0.0388	0.0570	0.0910	0.1360	mgrt123622.tar.gz
2025/04/14	0.0185	0.0282	0.0197	0.0391	0.0810	0.5470	0.1221	0.4015	0.2015	0.4656	0.2670	3.1710	0.1665	0.3245	0.1705	0.4026	0.4360	6.3920	0.0296	0.0871	0.0595	0.1095	0.0341	0.0943	0.0738	0.1245	0.4970	1.4530	0.5190	1.3820	0.0275	0.0372	0.0405	0.0615	0.0930	0.1600	mgrt123621.tar.gz
2025/04/13	0.0187	0.0273	0.0207	0.0390	0.1000	0.5320	0.1162	0.4019	0.1908	0.4598	0.2760	3.4970	-	-	-	-	-	-	0.0305	0.0950	0.0575	0.1152	0.0383	0.0972	0.0691	0.1253	0.4880	1.4410	0.5340	1.4060	0.0306	0.0351	0.0396	0.0611	0.1020	0.1850	mgrt123620.tar.gz

MGRT2 Monitor Statistics

prev

top

next

Product	GPS Errors wrt IGU						QZS Errors wrt JXR						QZS Errors wrt COM						GLONASS Errors wrt IGV				GLONASS Errors wrt IAC						GLONASS Errors wrt JXR		Galileo Errors wrt GBM						Result Files
	Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)		Orbit(m)				Orbit(m)				Clock(ns)		Clock(ns)		Orbit(m)				Clock(ns)
	R	A	C	3D			R	A	C	3D			R	A	C	3D			R	A	C	3D	R	A	C	3D					R	A	C	3D
	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	RMS	RMS	RMS	RMS	STD	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS
Total	0.0178	0.0303	0.0196	0.0403	0.1170	0.5420	0.1093	0.4503	0.2092	0.5084	0.3350	2.0500	0.1542	0.3782	0.1750	0.4444	0.5080	4.9890	0.0298	0.0736	0.0764	0.1102	0.0381	0.0798	0.0922	0.1277	0.3190	1.2960	0.3570	0.9910	0.0314	0.0379	0.0520	0.0716	0.1500	0.1740	mgrt22362.tar.gz
2025/04/19	0.0194	0.0321	0.0193	0.0422	0.0930	0.5270	0.1148	0.5151	0.2159	0.5702	0.3480	2.0910	0.1653	0.4438	0.1858	0.5088	0.5140	5.3610	0.0277	0.0636	0.0765	0.1033	0.0366	0.0608	0.0927	0.1168	0.2580	1.2840	0.2660	0.9280	0.0332	0.0362	0.0512	0.0710	0.1170	0.1960	mgrt223626.tar.gz
2025/04/18	0.0176	0.0286	0.0194	0.0388	0.0940	0.5520	0.1176	0.5453	0.2390	0.6068	0.3160	2.1070	0.1484	0.4371	0.1865	0.4979	0.4530	4.9530	0.0306	0.0696	0.0809	0.1110	0.0394	0.0784	0.0978	0.1314	0.2570	1.3280	0.2620	0.9760	0.0341	0.0350	0.0542	0.0730	0.1170	0.1730	mgrt223625.tar.gz
2025/04/17	0.0170	0.0299	0.0215	0.0406	0.0880	0.5230	0.1063	0.4681	0.2160	0.5264	0.2970	2.1360	0.1564	0.3710	0.1775	0.4400	0.4700	5.1080	0.0302	0.0700	0.0777	0.1089	0.0397	0.0815	0.0984	0.1338	0.2710	1.3360	0.2690	1.0020	0.0322	0.0373	0.0546	0.0735	0.1100	0.1660	mgrt223624.tar.gz
2025/04/16	0.0191	0.0354	0.0204	0.0451	0.0920	0.5470	0.1040	0.4372	0.2093	0.4957	0.2670	1.9820	0.1503	0.3535	0.1733	0.4214	0.4280	4.6920	0.0305	0.0734	0.0783	0.1116	0.0385	0.0811	0.0955	0.1310	0.2510	1.2440	0.2830	0.9380	0.0288	0.0400	0.0507	0.0707	0.0990	0.1790	mgrt223623.tar.gz
2025/04/15	0.0180	0.0306	0.0190	0.0403	0.0800	0.5560	0.1072	0.4358	0.2196	0.4996	0.2680	1.9400	0.1545	0.3453	0.1734	0.4161	0.4440	4.9740	0.0299	0.0806	0.0736	0.1132	0.0369	0.0861	0.0863	0.1274	0.2700	1.2980	0.3070	1.0500	0.0290	0.0366	0.0502	0.0686	0.0990	0.1420	mgrt223622.tar.gz
2025/04/14	0.0168	0.0277	0.0185	0.0373	0.0770	0.5520	0.1089	0.3672	0.1907	0.4278	0.2440	1.8860	0.1497	0.2976	0.1511	0.3657	0.4130	4.8200	0.0298	0.0820	0.0755	0.1154	0.0373	0.0895	0.0902	0.1324	0.2660	1.3310	0.2880	1.0430	0.0294	0.0417	0.0520	0.0728	0.0990	0.1650	mgrt223621.tar.gz
2025/04/13	0.0168	0.0273	0.0187	0.0371	0.0980	0.5350	0.1040	0.3483	0.1677	0.4003	0.2510	2.2000	-	-	-	-	-	-	0.0298	0.0741	0.0716	0.1072	0.0382	0.0775	0.0833	0.1200	0.2630	1.2510	0.2990	0.9900	0.0327	0.0385	0.0512	0.0719	0.1070	0.1920	mgrt223620.tar.gz

MGRT3 Monitor Statistics

prev

top

next

Product	GPS Errors wrt IGU						Galileo Errors wrt GBM						BeiDou(GEO) Errors wrt GBM						BeiDou(IGSO) Errors wrt GBM						BeiDou(MEO) Errors wrt GBM						Result Files
	Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)
	R	A	C	3D			R	A	C	3D			R	A	C	3D			R	A	C	3D			R	A	C	3D
	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS
Total	0.1273	0.9390	0.3906	1.0250	1.8470	2.5490	0.1711	0.9023	0.4323	1.0150	1.2590	1.4090	-	-	-	-	-	-	0.4381	1.5029	0.7348	1.7293	2.4200	39.7100	0.3191	2.4483	0.6348	2.5493	6.2980	61.8140	mgrt32362.tar.gz
2025/04/19	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2025/04/18	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2025/04/17	0.2108	1.7112	0.3655	1.7624	0.4970	5.5480	0.2099	1.6246	0.3688	1.6791	0.4670	2.9160	-	-	-	-	-	-	0.3196	1.3701	0.9618	1.7042	0.6500	44.4780	0.3213	3.7697	0.8269	3.8727	1.1150	73.0040	mgrt323624.tar.gz
2025/04/16	0.1935	1.5515	0.6943	1.7108	1.4330	3.9500	0.2697	1.5064	0.7712	1.7137	1.2000	2.1480	-	-	-	-	-	-	0.7682	2.2468	1.1606	2.6430	3.8420	39.6100	0.4844	3.4647	1.0206	3.6442	4.2370	63.3650	mgrt323623.tar.gz
2025/04/15	0.1104	0.7482	0.2746	0.8046	0.7460	2.0290	0.1513	0.6881	0.3081	0.7690	0.6320	1.0900	-	-	-	-	-	-	0.2943	1.3234	0.5695	1.4705	1.0530	40.3950	0.3456	2.2899	0.5513	2.3806	3.9430	62.6850	mgrt323622.tar.gz
2025/04/14	0.0833	0.3585	0.2000	0.4188	0.5690	1.0680	0.1166	0.3477	0.2224	0.4289	0.5260	0.8390	-	-	-	-	-	-	0.2603	1.3066	0.5383	1.4369	0.9050	38.9660	0.1963	1.9896	0.4512	2.0496	2.2730	59.8670	mgrt323621.tar.gz
2025/04/13	0.0525	0.1677	0.1301	0.2186	0.3670	0.5750	0.0746	0.2252	0.1505	0.2809	0.3010	0.4320	-	-	-	-	-	-	0.2129	0.7952	0.3619	0.8992	0.8560	38.8430	0.1581	1.3129	0.2448	1.3448	2.2810	59.1200	mgrt323620.tar.gz

MGRT1 GPS Orbit/Clock Errors wrt IGU (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

MGRT1 QZSS Orbit/Clock Errors wrt JXR (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

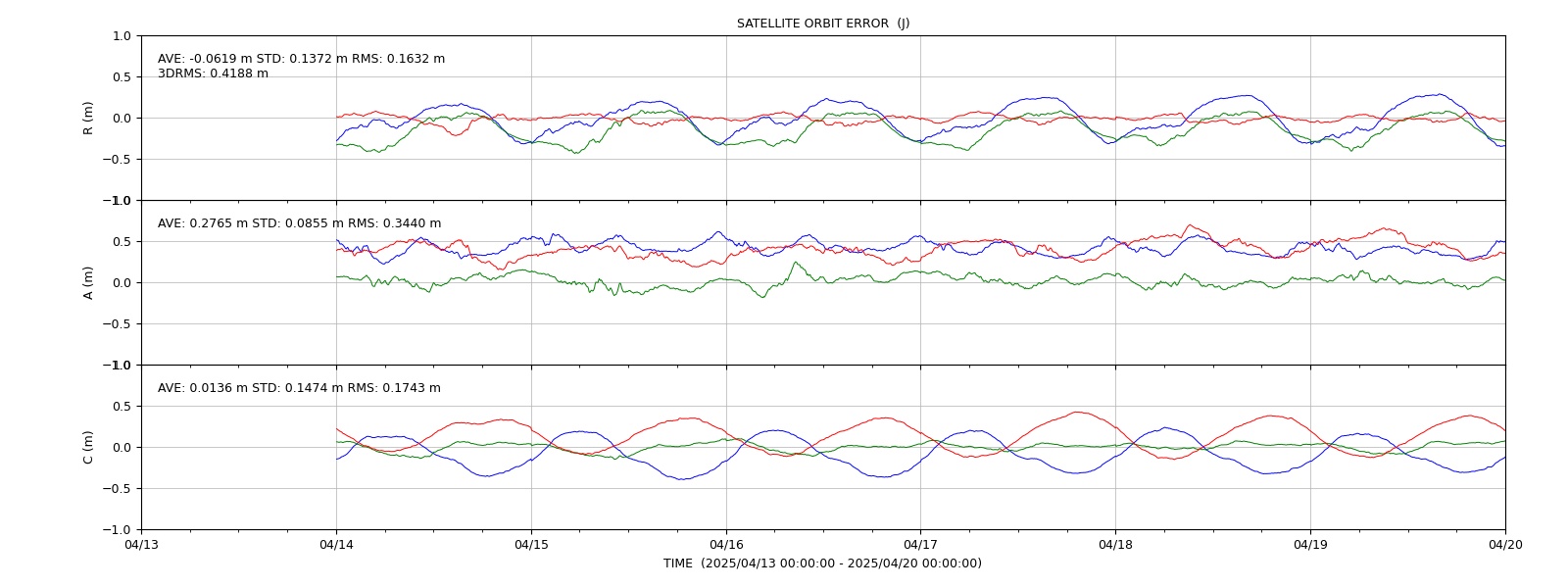

MGRT1 QZSS Orbit/Clock Errors wrt COM (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

MGRT1 GLONASS Orbit Errors wrt IGV (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

MGRT1 GLONASS Clock Errors wrt JXR (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

MGRT1 GLONASS Orbit/Clock Errors wrt IAC (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

MGRT1 Galileo Orbit/Clock Errors wrt GBM (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

MGRT1 GPS FCB (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

MGRT1 QZSS FCB (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

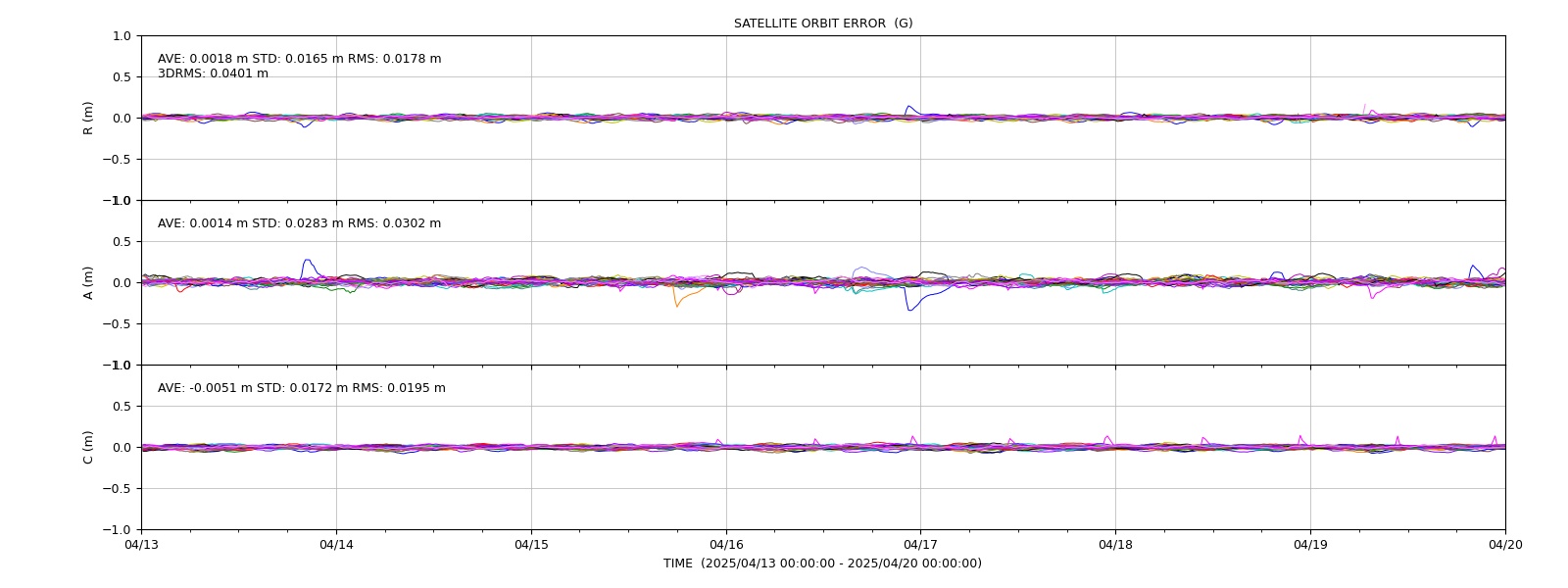

MGRT2 GPS Orbit/Clock Errors wrt IGU (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

MGRT2 QZS Orbit/Clock Errors wrt JXR (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

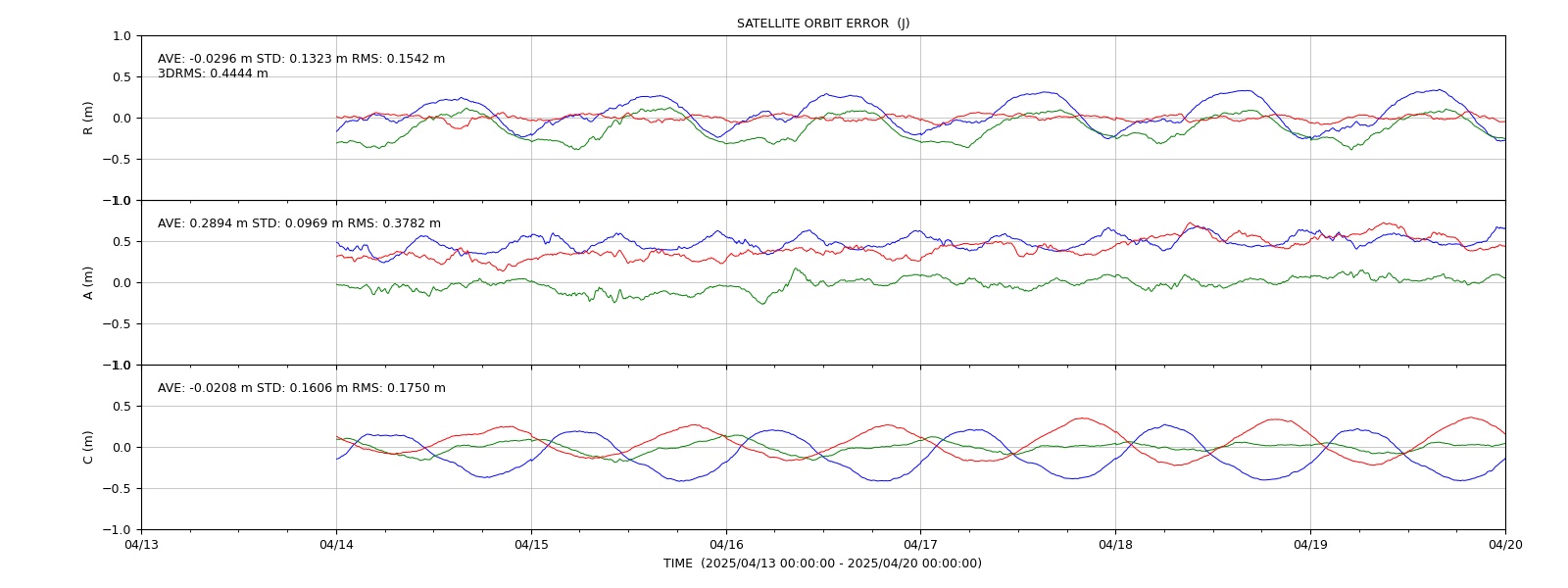

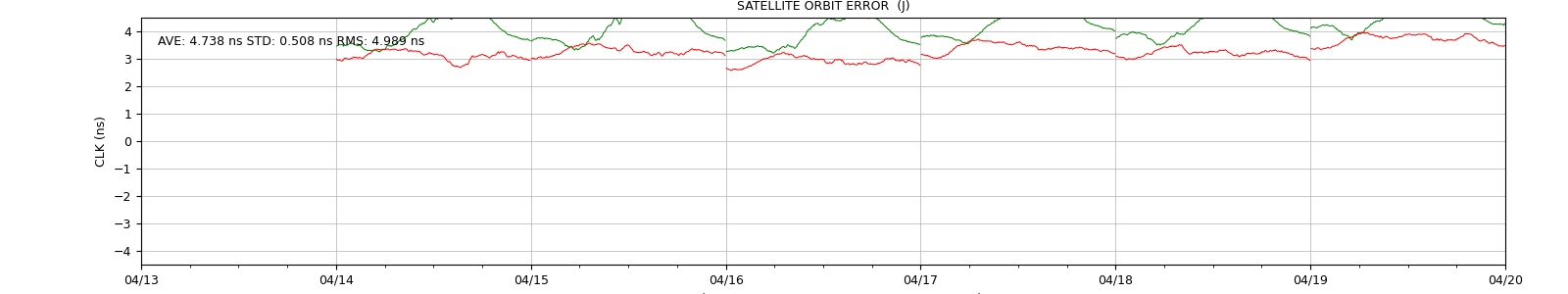

MGRT2 QZS Orbit/Clock Errors wrt COM (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

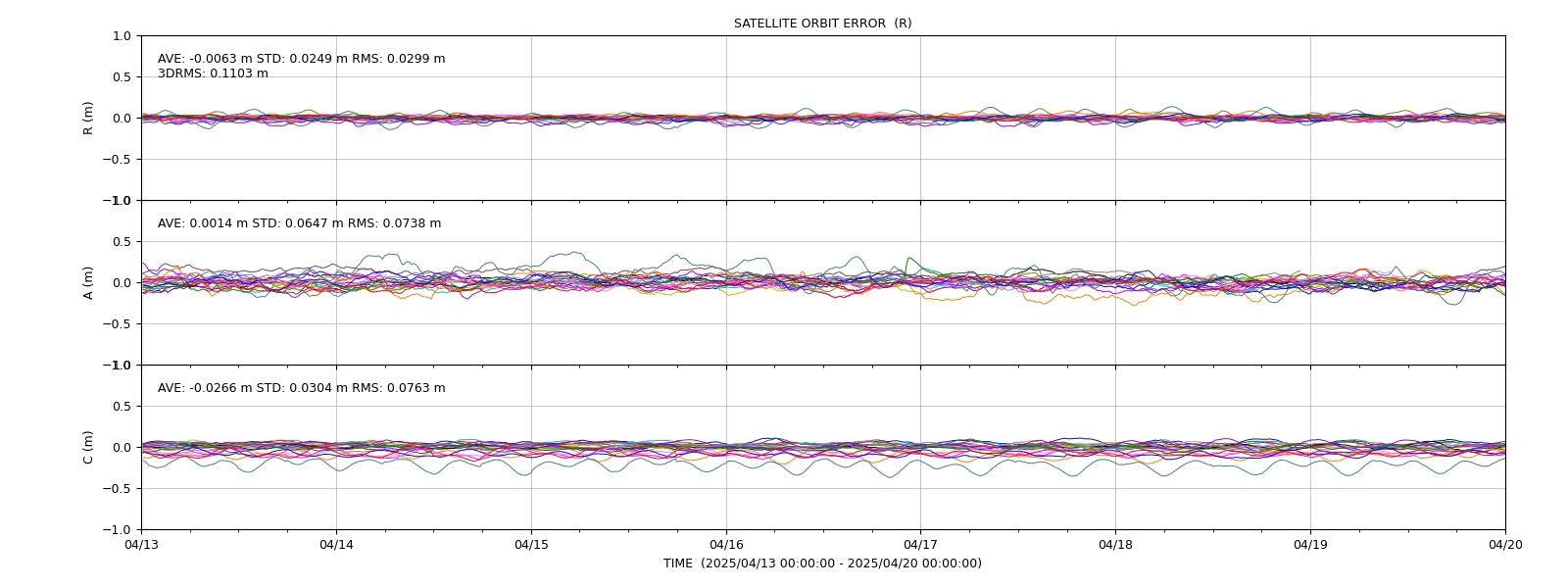

MGRT2 GLONASS Orbit Errors wrt IGV (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

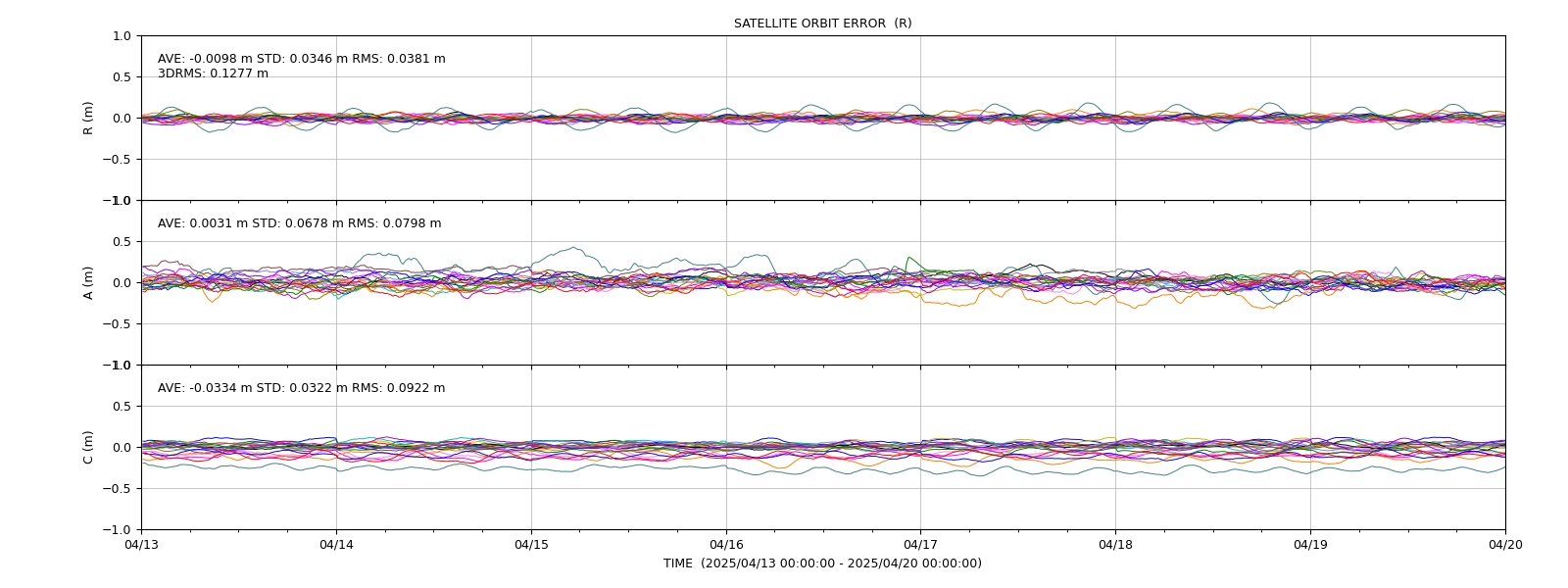

MGRT2 GLONASS Orbit/Clock Errors wrt IAC (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

MGRT2 GLONASS Clock Errors wrt JXR (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

MGRT2 Galileo Orbit/Clock Errors wrt GBM (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

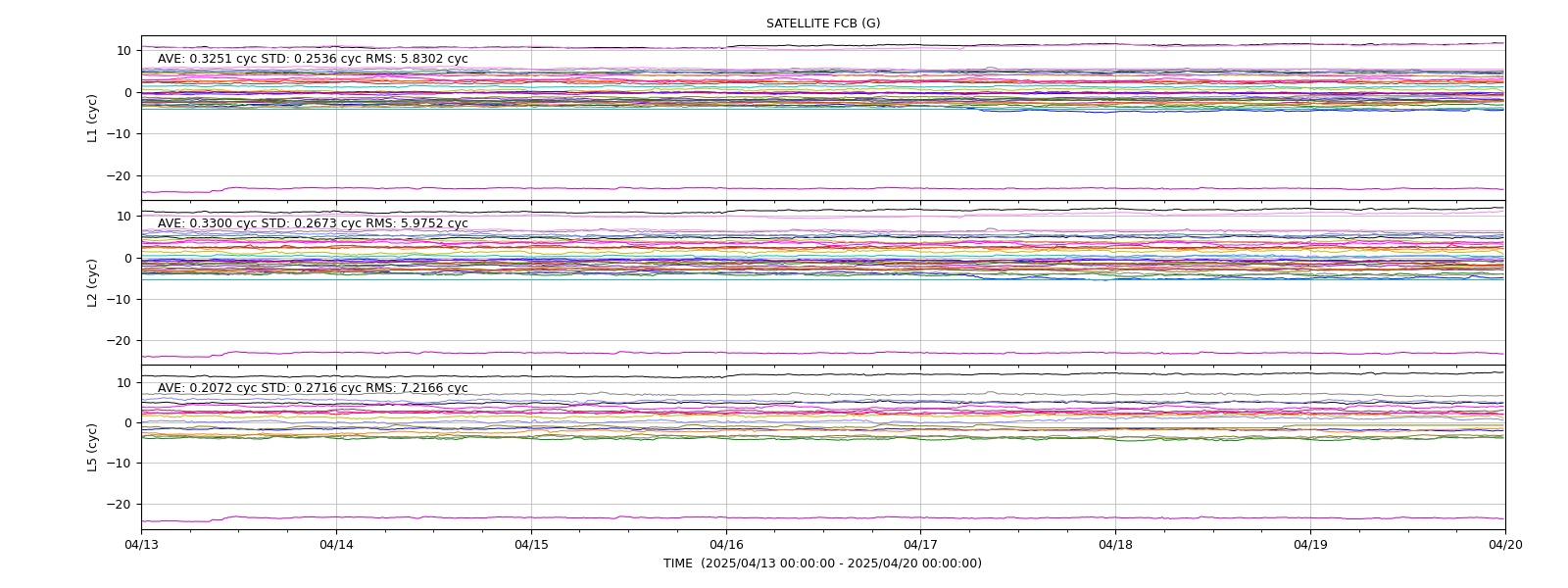

MGRT2 GPS FCB (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

MGRT2 QZSS FCB (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

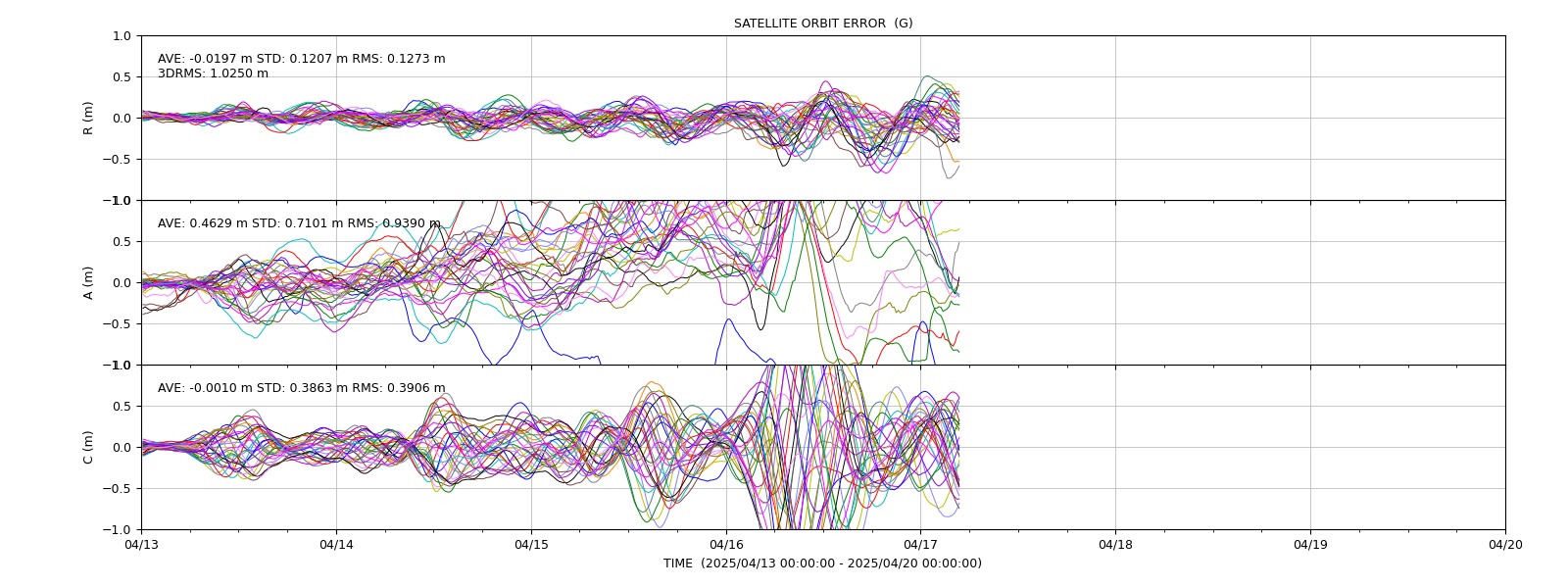

MGRT3 GPS Orbit/Clock Errors wrt IGU (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

MGRT3 Galileo Orbit/Clock Errors wrt GBM (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

MGRT3 BeiDou(GEO) Orbit/Clock Errors wrt GBM (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

-     (Plot updates after 5days.)

MGRT3 BeiDou(IGSO) Orbit/Clock Errors wrt GBM (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

MGRT3 BeiDou(MEO) Orbit/Clock Errors wrt GBM (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

MGRT3 GPS FCB (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

MGRT3 Galileo FCB (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next

MGRT3 BeiDou FCB (GPS Week 2362, 2025/04/13-2025/04/19) ↑

prev

top

next
