MADOCA: Final Products(JXR) Quality Monitor

GPS Week 2294, 2023/12/24-2023/12/30

MADOCA: Rapid Products(JXR) Quality Monitor

Graph:

GPS , GLONASS , QZSS , Galileo , BeiDou , GPS Satellite Clock , FCB

JXR Monitor Statistics

prev top next

Date DOY Product GPS Errors wrt IGR QZS Errors wrt COM GLONASS Errors wrt IGV GLONASS Errors wrt IAC Galileo Errors wrt GBM BeiDou(GEO) Errors wrt GBM BeiDou(IGSO) Errors wrt GBM BeiDou(MEO) Errors wrt GBM Result Files

Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns)

R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D

RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS

- - Total 0.0128 0.0135 0.0126 0.0225 0.0610 0.3270 0.1101 0.0466 0.0516 0.1303 0.3220 2.1710 0.0187 0.0425 0.0407 0.0618 0.0294 0.0573 0.0521 0.0829 0.1760 0.8140 - - - - - - 0.2807 4.5357 0.6795 4.5949 22.7910 23.8980 0.0743 0.1305 0.0727 0.1668 20.6530 27.6260 0.0520 0.0742 0.0513 0.1041 22.8260 25.0600 jxr2294.tar.gz

2023/12/30 364 jxr22946 0.0127 0.0130 0.0124 0.0221 0.0430 0.3240 0.0959 0.0624 0.0435 0.1224 0.2430 2.0300 0.0171 0.0527 0.0474 0.0729 0.0269 0.0652 0.0538 0.0887 0.1260 0.7660 - - - - - - 0.3020 4.7588 0.7806 4.8318 1.0930 11.0590 0.0667 0.0962 0.0695 0.1361 0.8470 29.5820 0.0680 0.0924 0.0683 0.1335 0.8610 25.6880 jxr22946.tar.gz

2023/12/29 363 jxr22945 0.0126 0.0128 0.0128 0.0220 0.0420 0.3410 0.1066 0.0430 0.0465 0.1240 0.2730 2.0690 0.0217 0.0462 0.0436 0.0671 0.0327 0.0554 0.0517 0.0825 0.1050 0.7330 - - - - - - 0.2693 4.7441 0.7482 4.8103 1.6880 41.5830 0.0647 0.1529 0.0556 0.1751 1.6780 23.1980 0.0499 0.0747 0.0461 0.1010 1.8570 26.0620 jxr22945.tar.gz

2023/12/28 362 jxr22944 0.0120 0.0118 0.0127 0.0211 0.0410 0.3150 0.1057 0.0413 0.0416 0.1209 0.2850 2.2180 0.0160 0.0364 0.0391 0.0558 0.0269 0.0457 0.0470 0.0709 0.1070 0.7560 - - - - - - 0.2580 4.6341 0.6701 4.6894 1.7010 40.3020 0.0531 0.0988 0.0571 0.1259 1.7910 21.2630 0.0321 0.0589 0.0319 0.0742 1.8730 25.1970 jxr22944.tar.gz

2023/12/27 361 jxr22943 0.0133 0.0119 0.0124 0.0217 0.0460 0.3120 0.1009 0.0484 0.0540 0.1242 0.2440 2.2090 0.0163 0.0365 0.0400 0.0565 0.0279 0.0515 0.0505 0.0774 0.1160 0.7880 - - - - - - 0.2766 4.8338 0.6394 4.8838 1.3090 11.0460 0.0665 0.1489 0.0771 0.1804 1.3580 29.6060 0.0327 0.0639 0.0396 0.0820 1.4020 25.1910 jxr22943.tar.gz

2023/12/26 360 jxr22942 0.0128 0.0125 0.0126 0.0220 0.0440 0.3040 0.1182 0.0427 0.0489 0.1348 0.3180 2.3010 0.0196 0.0422 0.0418 0.0625 0.0306 0.0517 0.0539 0.0807 0.1300 0.8170 - - - - - - 0.2753 4.0739 0.6572 4.1358 1.4960 11.1010 0.0958 0.1761 0.0757 0.2143 1.5810 29.6020 0.0594 0.0777 0.0420 0.1064 1.6780 25.4140 jxr22942.tar.gz

2023/12/25 359 jxr22941 0.0131 0.0153 0.0124 0.0237 0.0450 0.3490 0.1212 0.0367 0.0623 0.1411 0.3690 2.0490 0.0200 0.0389 0.0344 0.0556 0.0313 0.0646 0.0544 0.0901 0.1500 0.9430 - - - - - - 0.2898 4.9098 0.6811 4.9653 1.0270 10.1110 0.0710 0.1236 0.0867 0.1669 1.2360 28.9230 0.0610 0.0585 0.0475 0.0970 1.2810 24.0730 jxr22941.tar.gz

2023/12/24 358 jxr22940 0.0129 0.0163 0.0130 0.0245 0.0450 0.3400 0.1196 0.0477 0.0608 0.1424 0.3300 2.2980 0.0198 0.0418 0.0375 0.0595 0.0292 0.0626 0.0525 0.0868 0.1230 0.8650 - - - - - - 0.2935 3.7439 0.5568 3.7964 1.5870 9.4320 0.0868 0.0944 0.0768 0.1495 1.7570 27.8040 0.0502 0.0859 0.0709 0.1221 1.8160 23.6790 jxr22940.tar.gz

GPS Orbit/Clock Errors wrt IGR(GPS Week 2294, 2023/12/24-2023/12/30) ↑

prev top next

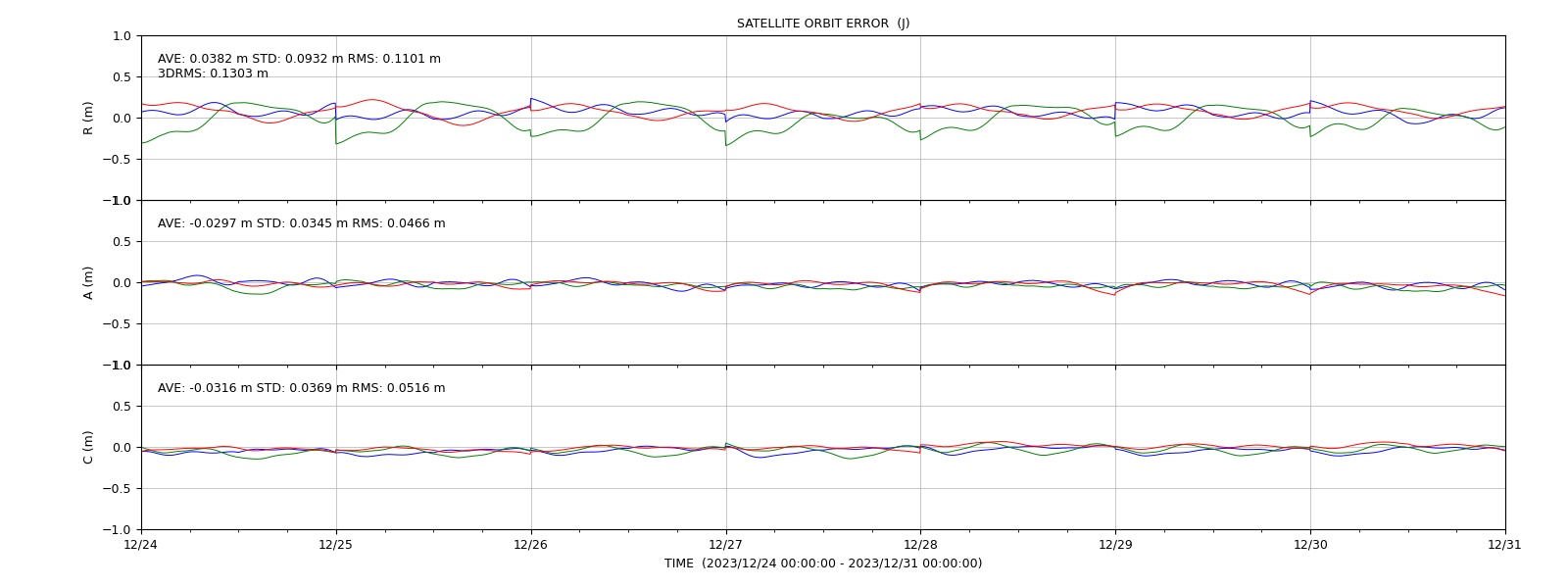

QZSS Orbit/Clock Errors wrt COM(GPS Week 2294, 2023/12/24-2023/12/30) ↑

prev top next

GLONASS Orbit Errors wrt IGV(GPS Week 2294, 2023/12/24-2023/12/30) ↑

prev top next

GLONASS Orbit/Clock Errors wrt IAC(GPS Week 2294, 2023/12/24-2023/12/30) ↑

prev top next

Galileo Orbit/Clock Errors wrt GBM(GPS Week 2294, 2023/12/24-2023/12/30) ↑

prev top next
- (Plot updates after 5days.)

BeiDou(GEO) Orbit/Clock Errors wrt GBM(GPS Week 2294, 2023/12/24-2023/12/30) ↑

prev top next

BeiDou(IGSO) Orbit/Clock Errors wrt GBM(GPS Week 2294, 2023/12/24-2023/12/30) ↑

prev top next

BeiDou(MEO) Orbit/Clock Errors wrt GBM(GPS Week 2294, 2023/12/24-2023/12/30) ↑

prev top next

GPS FCB (GPS Week 2294, 2023/12/24-2023/12/30) ↑

prev top next

QZSS FCB (GPS Week 2294, 2023/12/24-2023/12/30) ↑

prev top next

Galileo FCB (GPS Week 2294, 2023/12/24-2023/12/30) ↑

prev top next
- (Plot not updates.)

BeiDou FCB (GPS Week 2294, 2023/12/24-2023/12/30) ↑

prev top next

update: 2024-01-14 22:38:32 UTC

The products are for test and evaluation purpose only.

Date	DOY	Product	GPS Errors wrt IGR						QZS Errors wrt COM						GLONASS Errors wrt IGV				GLONASS Errors wrt IAC						Galileo Errors wrt GBM						BeiDou(GEO) Errors wrt GBM						BeiDou(IGSO) Errors wrt GBM						BeiDou(MEO) Errors wrt GBM						Result Files
			Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)		Orbit(m)				Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)
			R	A	C	3D	Clock(ns)		R	A	C	3D	Clock(ns)		R	A	C	3D	R	A	C	3D	Clock(ns)		R	A	C	3D	Clock(ns)		R	A	C	3D	Clock(ns)		R	A	C	3D	Clock(ns)		R	A	C	3D	Clock(ns)
			RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS
-	-	Total	0.0128	0.0135	0.0126	0.0225	0.0610	0.3270	0.1101	0.0466	0.0516	0.1303	0.3220	2.1710	0.0187	0.0425	0.0407	0.0618	0.0294	0.0573	0.0521	0.0829	0.1760	0.8140	-	-	-	-	-	-	0.2807	4.5357	0.6795	4.5949	22.7910	23.8980	0.0743	0.1305	0.0727	0.1668	20.6530	27.6260	0.0520	0.0742	0.0513	0.1041	22.8260	25.0600	jxr2294.tar.gz
2023/12/30	364	jxr22946	0.0127	0.0130	0.0124	0.0221	0.0430	0.3240	0.0959	0.0624	0.0435	0.1224	0.2430	2.0300	0.0171	0.0527	0.0474	0.0729	0.0269	0.0652	0.0538	0.0887	0.1260	0.7660	-	-	-	-	-	-	0.3020	4.7588	0.7806	4.8318	1.0930	11.0590	0.0667	0.0962	0.0695	0.1361	0.8470	29.5820	0.0680	0.0924	0.0683	0.1335	0.8610	25.6880	jxr22946.tar.gz
2023/12/29	363	jxr22945	0.0126	0.0128	0.0128	0.0220	0.0420	0.3410	0.1066	0.0430	0.0465	0.1240	0.2730	2.0690	0.0217	0.0462	0.0436	0.0671	0.0327	0.0554	0.0517	0.0825	0.1050	0.7330	-	-	-	-	-	-	0.2693	4.7441	0.7482	4.8103	1.6880	41.5830	0.0647	0.1529	0.0556	0.1751	1.6780	23.1980	0.0499	0.0747	0.0461	0.1010	1.8570	26.0620	jxr22945.tar.gz
2023/12/28	362	jxr22944	0.0120	0.0118	0.0127	0.0211	0.0410	0.3150	0.1057	0.0413	0.0416	0.1209	0.2850	2.2180	0.0160	0.0364	0.0391	0.0558	0.0269	0.0457	0.0470	0.0709	0.1070	0.7560	-	-	-	-	-	-	0.2580	4.6341	0.6701	4.6894	1.7010	40.3020	0.0531	0.0988	0.0571	0.1259	1.7910	21.2630	0.0321	0.0589	0.0319	0.0742	1.8730	25.1970	jxr22944.tar.gz
2023/12/27	361	jxr22943	0.0133	0.0119	0.0124	0.0217	0.0460	0.3120	0.1009	0.0484	0.0540	0.1242	0.2440	2.2090	0.0163	0.0365	0.0400	0.0565	0.0279	0.0515	0.0505	0.0774	0.1160	0.7880	-	-	-	-	-	-	0.2766	4.8338	0.6394	4.8838	1.3090	11.0460	0.0665	0.1489	0.0771	0.1804	1.3580	29.6060	0.0327	0.0639	0.0396	0.0820	1.4020	25.1910	jxr22943.tar.gz
2023/12/26	360	jxr22942	0.0128	0.0125	0.0126	0.0220	0.0440	0.3040	0.1182	0.0427	0.0489	0.1348	0.3180	2.3010	0.0196	0.0422	0.0418	0.0625	0.0306	0.0517	0.0539	0.0807	0.1300	0.8170	-	-	-	-	-	-	0.2753	4.0739	0.6572	4.1358	1.4960	11.1010	0.0958	0.1761	0.0757	0.2143	1.5810	29.6020	0.0594	0.0777	0.0420	0.1064	1.6780	25.4140	jxr22942.tar.gz
2023/12/25	359	jxr22941	0.0131	0.0153	0.0124	0.0237	0.0450	0.3490	0.1212	0.0367	0.0623	0.1411	0.3690	2.0490	0.0200	0.0389	0.0344	0.0556	0.0313	0.0646	0.0544	0.0901	0.1500	0.9430	-	-	-	-	-	-	0.2898	4.9098	0.6811	4.9653	1.0270	10.1110	0.0710	0.1236	0.0867	0.1669	1.2360	28.9230	0.0610	0.0585	0.0475	0.0970	1.2810	24.0730	jxr22941.tar.gz
2023/12/24	358	jxr22940	0.0129	0.0163	0.0130	0.0245	0.0450	0.3400	0.1196	0.0477	0.0608	0.1424	0.3300	2.2980	0.0198	0.0418	0.0375	0.0595	0.0292	0.0626	0.0525	0.0868	0.1230	0.8650	-	-	-	-	-	-	0.2935	3.7439	0.5568	3.7964	1.5870	9.4320	0.0868	0.0944	0.0768	0.1495	1.7570	27.8040	0.0502	0.0859	0.0709	0.1221	1.8160	23.6790	jxr22940.tar.gz
