MADOCA: Final Products(JXF) Quality Monitor

GPS Week 2298, 2024/01/21-2024/01/27

MADOCA: Final Products(JXF) Quality Monitor

Graph:

GPS , GLONASS , QZSS , Galileo , BeiDou , GPS Satellite Clock , FCB

JXF Monitor Statistics

prev top next

Date DOY Product GPS Errors wrt IGR QZS Errors wrt COM GLONASS Errors wrt IGV GLONASS Errors wrt IAC Galileo Errors wrt GBM BeiDou(GEO) Errors wrt GBM BeiDou(IGSO) Errors wrt GBM BeiDou(MEO) Errors wrt GBM Result Files

Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns)

R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D

RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS

- - Total 0.0120 0.0135 0.0117 0.0215 0.1530 0.3600 0.1250 0.0653 0.0421 0.1471 0.3410 2.3180 0.0170 0.0421 0.0377 0.0590 0.0291 0.0476 0.0417 0.0697 0.1770 0.8420 - - - - - - 0.2282 3.9256 0.4511 3.9580 2.3850 37.9200 0.0624 0.1266 0.0850 0.1648 2.4160 18.6830 0.0633 0.0690 0.0458 0.1043 2.4320 22.5130 jxf2298.tar.gz

2024/01/27 027 jxf22986 0.0117 0.0147 0.0115 0.0220 0.0390 0.3410 0.1161 0.0532 0.0406 0.1340 0.2900 2.3310 0.0183 0.0409 0.0394 0.0597 0.0360 0.0415 0.0441 0.0704 0.1340 0.8150 - - - - - - 0.2516 4.4401 0.5478 4.4808 1.6520 38.7230 0.0464 0.1268 0.0824 0.1582 1.6490 18.0370 0.0624 0.0804 0.0506 0.1136 1.6620 21.7950 jxf22986.tar.gz

2024/01/26 026 jxf22985 0.0116 0.0141 0.0120 0.0219 0.0390 0.4000 0.1151 0.0718 0.0408 0.1417 0.2930 2.2020 0.0166 0.0428 0.0372 0.0590 0.0293 0.0453 0.0442 0.0698 0.1270 0.8670 - - - - - - 0.2020 3.2902 0.4626 3.3287 1.5270 39.7640 0.0581 0.1252 0.0897 0.1646 1.4840 20.4770 0.0487 0.0813 0.0387 0.1024 1.4640 24.2740 jxf22985.tar.gz

2024/01/25 025 jxf22984 0.0120 0.0143 0.0123 0.0223 0.0410 0.3600 0.1290 0.0621 0.0450 0.1501 0.3450 2.4340 0.0168 0.0405 0.0356 0.0565 0.0285 0.0500 0.0430 0.0718 0.1270 0.8600 - - - - - - 0.2224 1.5615 0.6168 1.6936 1.3800 40.8170 0.0632 0.1396 0.1034 0.1849 1.2900 22.0570 0.0316 0.0568 0.0403 0.0764 1.3280 25.8880 jxf22984.tar.gz

2024/01/24 024 jxf22983 0.0122 0.0134 0.0117 0.0216 0.0410 0.3570 0.1275 0.0795 0.0446 0.1568 0.3320 2.4320 0.0164 0.0454 0.0354 0.0599 0.0265 0.0543 0.0406 0.0728 0.1230 0.8330 - - - - - - 0.2200 3.6901 0.3942 3.7176 1.6120 37.8640 0.0617 0.1063 0.0829 0.1483 1.6590 18.4740 0.0512 0.0673 0.0407 0.0938 1.7370 22.7400 jxf22983.tar.gz

2024/01/23 023 jxf22982 0.0123 0.0114 0.0113 0.0202 0.0390 0.3320 0.1415 0.0640 0.0492 0.1629 0.3700 2.3630 0.0159 0.0440 0.0407 0.0620 0.0259 0.0476 0.0393 0.0670 0.1160 0.8560 - - - - - - 0.2265 4.0005 0.3639 4.0234 1.4870 36.1730 0.0537 0.1269 0.0650 0.1524 1.3780 16.9600 0.0810 0.0631 0.0454 0.1122 1.4600 20.9260 jxf22982.tar.gz

2024/01/22 022 jxf22981 0.0126 0.0118 0.0110 0.0204 0.0400 0.3900 0.1354 0.0642 0.0391 0.1549 0.3620 2.2910 0.0165 0.0418 0.0395 0.0598 0.0277 0.0491 0.0404 0.0693 0.1160 0.8450 - - - - - - 0.2357 4.7650 0.3534 4.7839 1.2410 35.6750 0.0715 0.1372 0.0735 0.1713 1.4880 16.7460 0.0866 0.0734 0.0594 0.1281 1.4760 20.6670 jxf22981.tar.gz

2024/01/21 021 jxf22980 0.0115 0.0144 0.0119 0.0220 0.0380 0.3390 0.1062 0.0586 0.0339 0.1259 0.2640 2.1560 0.0182 0.0394 0.0361 0.0564 0.0290 0.0441 0.0401 0.0663 0.1240 0.8140 - - - - - - 0.2410 4.7214 0.3948 4.7440 1.4880 36.4330 0.0768 0.1215 0.0923 0.1708 1.5690 17.4060 0.0642 0.0564 0.0421 0.0952 1.5740 20.7670 jxf22980.tar.gz

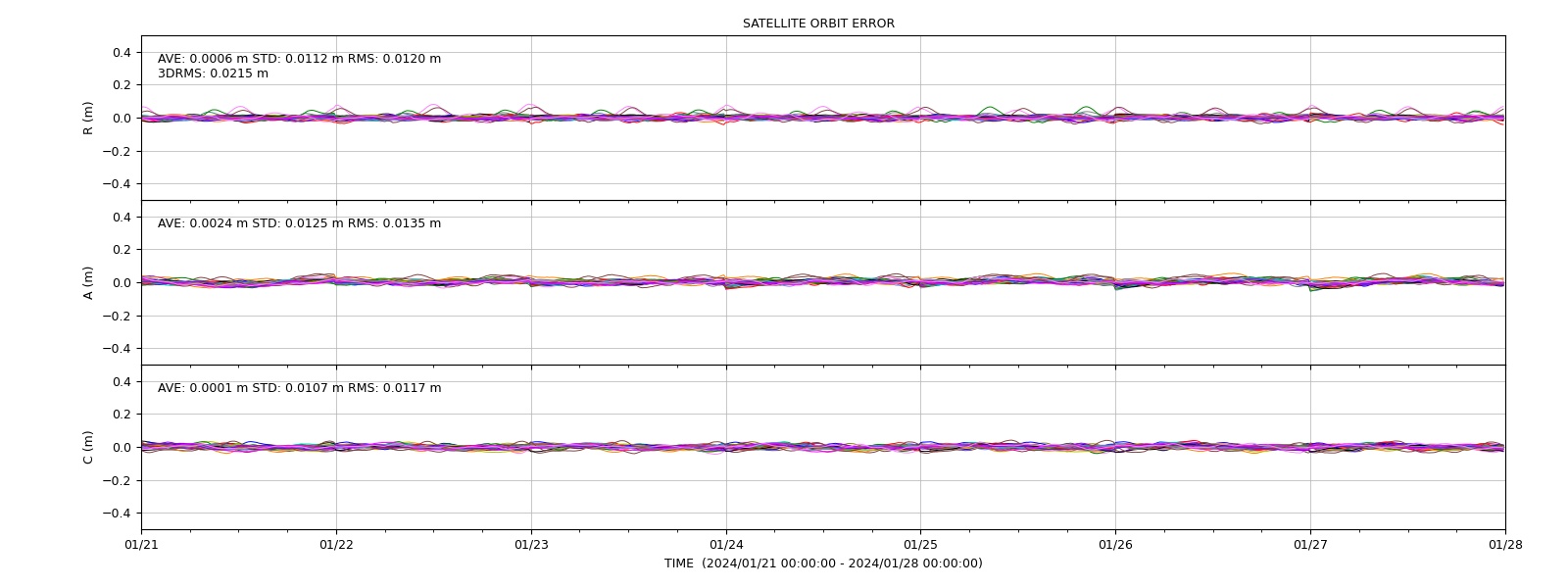

GPS Orbit/Clock Errors wrt IGR(GPS Week 2298, 2024/01/21-2024/01/27) ↑

prev top next

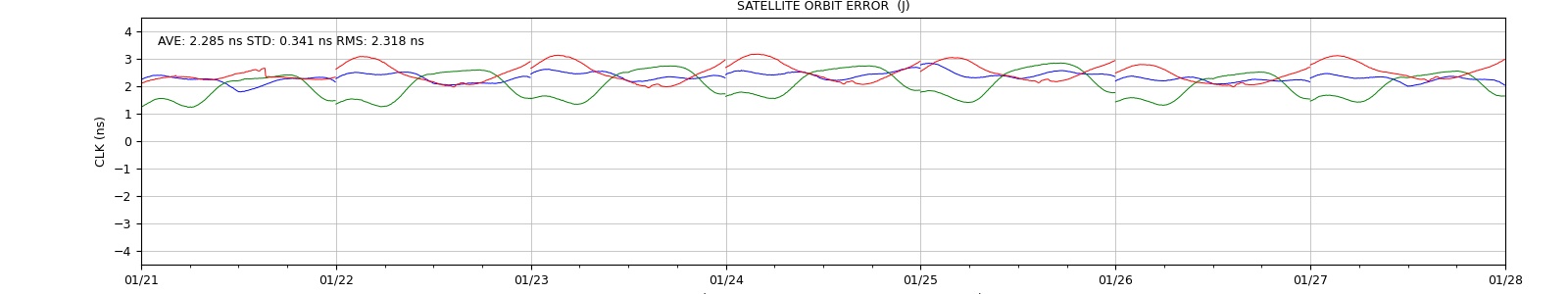

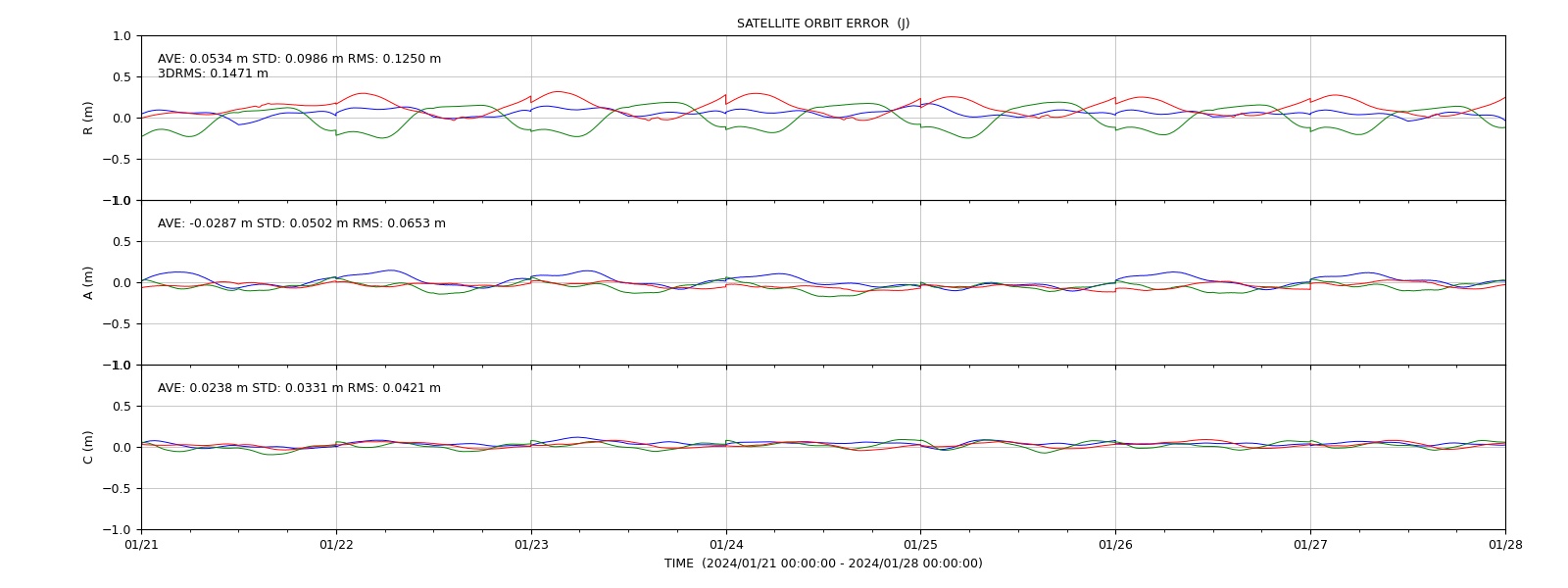

QZSS Orbit/Clock Errors wrt COM(GPS Week 2298, 2024/01/21-2024/01/27) ↑

prev top next

GLONASS Orbit Errors wrt IGV(GPS Week 2298, 2024/01/21-2024/01/27) ↑

prev top next

GLONASS Orbit/Clock Errors wrt IAC(GPS Week 2298, 2024/01/21-2024/01/27) ↑

prev top next

Galileo Orbit/Clock Errors wrt GBM(GPS Week 2298, 2024/01/21-2024/01/27) ↑

prev top next
- (Plot updates after 5days.)

BeiDou(GEO) Orbit/Clock Errors wrt GBM(GPS Week 2298, 2024/01/21-2024/01/27) ↑

prev top next

BeiDou(IGSO) Orbit/Clock Errors wrt GBM(GPS Week 2298, 2024/01/21-2024/01/27) ↑

prev top next

BeiDou(MEO) Orbit/Clock Errors wrt GBM(GPS Week 2298, 2024/01/21-2024/01/27) ↑

prev top next

GPS FCB (GPS Week 2298, 2024/01/21-2024/01/27) ↑

prev top next

QZSS FCB (GPS Week 2298, 2024/01/21-2024/01/27) ↑

prev top next

Galileo FCB (GPS Week 2298, 2024/01/21-2024/01/27) ↑

prev top next
- (Plot not updates.)

BeiDou FCB (GPS Week 2298, 2024/01/21-2024/01/27) ↑

prev top next

update: 2024-02-12 22:45:57 UTC

The products are for test and evaluation purpose only.
