MADOCA: Final Products(JXR) Quality Monitor

GPS Week 2328, 2024/08/18-2024/08/24

MADOCA: Rapid Products(JXR) Quality Monitor

Graph:

GPS , GLONASS , QZSS , Galileo , BeiDou , GPS Satellite Clock , FCB

JXR Monitor Statistics

prev top next

Date DOY Product GPS Errors wrt IGR QZS Errors wrt COM GLONASS Errors wrt IGV GLONASS Errors wrt IAC Galileo Errors wrt GBM BeiDou(GEO) Errors wrt GBM BeiDou(IGSO) Errors wrt GBM BeiDou(MEO) Errors wrt GBM Result Files

Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns) Orbit(m) Clock(ns)

R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D R A C 3D

RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS RMS RMS RMS RMS STD RMS

- - Total 0.0102 0.0161 0.0112 0.0221 0.0470 0.3390 0.1552 0.0549 0.0354 0.1684 0.4480 2.2770 0.0241 0.0487 0.0405 0.0678 0.0371 0.0554 0.0570 0.0877 0.1760 1.0030 0.0178 0.0206 0.0194 0.0334 0.1260 0.1390 0.2244 4.4897 0.5095 4.5241 16.8270 31.5630 0.0750 0.0974 0.0892 0.1519 16.2090 18.6930 0.0520 0.0777 0.0479 0.1050 16.2340 20.7240 jxr2328.tar.gz

2024/08/24 237 jxr23286 0.0092 0.0168 0.0113 0.0223 0.0310 0.3370 0.1497 0.0618 0.0370 0.1661 0.4190 2.2370 0.0195 0.0325 0.0283 0.0473 0.0571 0.0412 0.0475 0.0849 0.1810 0.9830 0.0167 0.0210 0.0192 0.0330 0.0550 0.1450 0.2207 2.7732 0.5320 2.8324 1.3010 31.3170 0.0651 0.0658 0.0831 0.1244 1.3320 12.8180 0.0550 0.0806 0.0490 0.1092 1.3470 16.4420 jxr23286.tar.gz

2024/08/23 236 jxr23285 0.0100 0.0155 0.0114 0.0217 0.0340 0.3230 0.1462 0.0493 0.0401 0.1594 0.4290 2.1190 0.0172 0.0425 0.0320 0.0560 0.0370 0.0469 0.0489 0.0772 0.1290 1.0480 0.0168 0.0191 0.0195 0.0321 0.0510 0.1520 0.2017 4.6564 0.5498 4.6931 1.5280 11.2810 0.0655 0.0874 0.0912 0.1423 1.5520 29.3400 0.0427 0.0938 0.0617 0.1201 1.5720 25.6150 jxr23285.tar.gz

2024/08/22 235 jxr23284 0.0097 0.0120 0.0098 0.0182 0.0320 0.3400 0.1470 0.0439 0.0336 0.1570 0.4160 2.4720 0.0241 0.0434 0.0382 0.0626 0.0269 0.0520 0.0549 0.0803 0.1000 1.0680 0.0162 0.0152 0.0152 0.0269 0.0530 0.1270 0.2194 2.3622 0.5335 2.4316 1.5710 44.4130 0.0561 0.0864 0.0730 0.1263 1.5850 25.8070 0.0559 0.0654 0.0462 0.0976 1.6450 29.6310 jxr23284.tar.gz

2024/08/21 234 jxr23283 0.0107 0.0129 0.0116 0.0204 0.0350 0.3420 0.1515 0.0530 0.0329 0.1638 0.4130 2.4330 0.0282 0.0482 0.0412 0.0694 0.0305 0.0627 0.0699 0.0988 0.1130 0.9630 0.0187 0.0174 0.0198 0.0323 0.0600 0.1320 0.2246 3.3057 0.5732 3.3625 1.6330 36.4980 0.0644 0.0916 0.0757 0.1351 1.6440 17.7440 0.0718 0.0653 0.0424 0.1059 1.6720 21.6360 jxr23283.tar.gz

2024/08/20 233 jxr23282 0.0101 0.0171 0.0112 0.0228 0.0300 0.3500 0.1498 0.0441 0.0351 0.1601 0.4140 2.2200 0.0286 0.0635 0.0541 0.0882 0.0337 0.0651 0.0672 0.0995 0.1550 1.0090 0.0180 0.0226 0.0175 0.0338 0.0590 0.1500 0.2078 7.2327 0.4676 7.2508 1.8330 30.9640 0.0771 0.1199 0.0780 0.1625 1.9520 12.2560 0.0509 0.0920 0.0518 0.1172 2.4290 15.8910 jxr23282.tar.gz

2024/08/19 232 jxr23281 0.0110 0.0192 0.0120 0.0252 0.0320 0.3450 0.1715 0.0698 0.0334 0.1881 0.4540 2.2500 0.0291 0.0604 0.0460 0.0813 0.0313 0.0636 0.0541 0.0892 0.1450 1.0150 0.0190 0.0246 0.0201 0.0370 0.0600 0.1150 0.2466 3.7212 0.4238 3.7534 1.6340 29.9880 0.1073 0.1306 0.1234 0.2093 1.7170 10.6800 0.0462 0.0805 0.0463 0.1037 1.7360 14.6740 jxr23281.tar.gz

2024/08/18 231 jxr23280 0.0106 0.0180 0.0110 0.0236 0.0320 0.3330 0.1688 0.0575 0.0351 0.1817 0.4450 2.1820 0.0203 0.0435 0.0381 0.0613 0.0360 0.0527 0.0540 0.0836 0.1430 0.9270 0.0193 0.0227 0.0233 0.0378 0.0580 0.1510 0.2645 5.2951 0.4195 5.3183 1.4870 28.2330 0.0786 0.0857 0.0909 0.1476 1.6160 12.8370 0.0322 0.0595 0.0332 0.0753 1.6490 16.4100 jxr23280.tar.gz

GPS Orbit/Clock Errors wrt IGR(GPS Week 2328, 2024/08/18-2024/08/24) ↑

prev top next

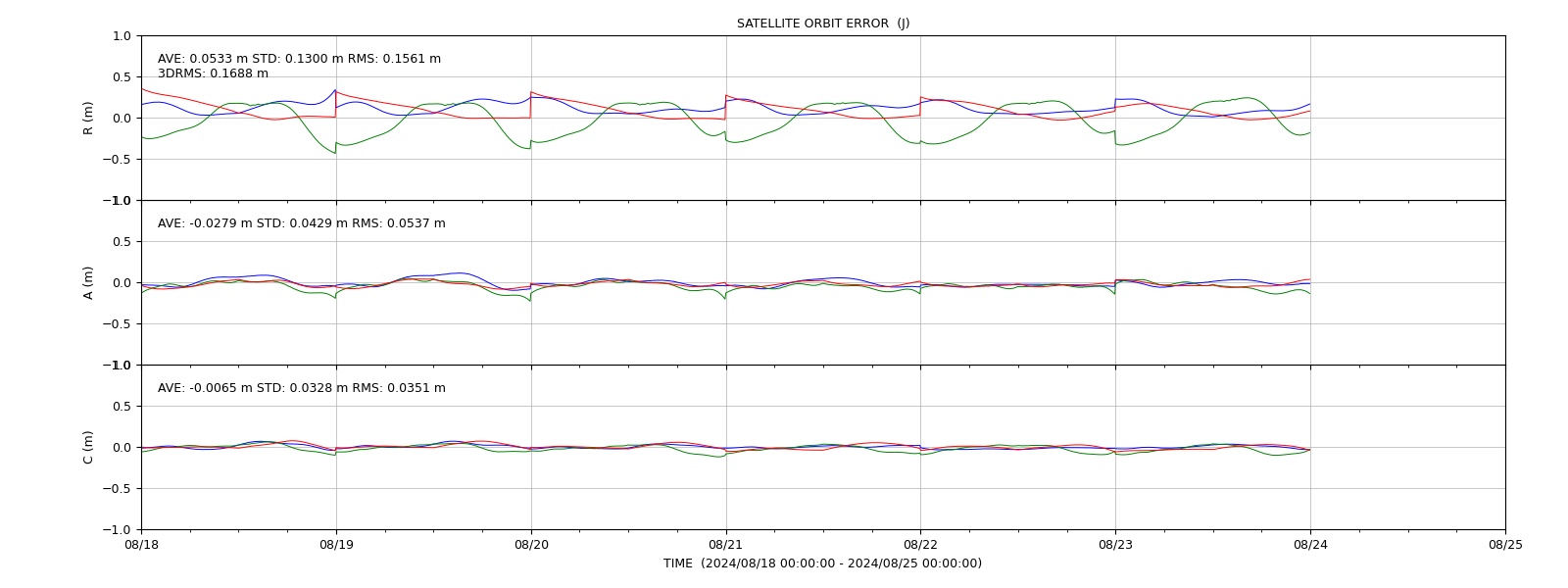

QZSS Orbit/Clock Errors wrt COM(GPS Week 2328, 2024/08/18-2024/08/24) ↑

prev top next

GLONASS Orbit Errors wrt IGV(GPS Week 2328, 2024/08/18-2024/08/24) ↑

prev top next

GLONASS Orbit/Clock Errors wrt IAC(GPS Week 2328, 2024/08/18-2024/08/24) ↑

prev top next

Galileo Orbit/Clock Errors wrt GBM(GPS Week 2328, 2024/08/18-2024/08/24) ↑

prev top next

BeiDou(GEO) Orbit/Clock Errors wrt GBM(GPS Week 2328, 2024/08/18-2024/08/24) ↑

prev top next

BeiDou(IGSO) Orbit/Clock Errors wrt GBM(GPS Week 2328, 2024/08/18-2024/08/24) ↑

prev top next

BeiDou(MEO) Orbit/Clock Errors wrt GBM(GPS Week 2328, 2024/08/18-2024/08/24) ↑

prev top next

GPS FCB (GPS Week 2328, 2024/08/18-2024/08/24) ↑

prev top next

QZSS FCB (GPS Week 2328, 2024/08/18-2024/08/24) ↑

prev top next

Galileo FCB (GPS Week 2328, 2024/08/18-2024/08/24) ↑

prev top next

BeiDou FCB (GPS Week 2328, 2024/08/18-2024/08/24) ↑

prev top next

update: 2024-09-08 22:36:01 UTC

The products are for test and evaluation purpose only.

Date	DOY	Product	GPS Errors wrt IGR						QZS Errors wrt COM						GLONASS Errors wrt IGV				GLONASS Errors wrt IAC						Galileo Errors wrt GBM						BeiDou(GEO) Errors wrt GBM						BeiDou(IGSO) Errors wrt GBM						BeiDou(MEO) Errors wrt GBM						Result Files
			Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)		Orbit(m)				Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)		Orbit(m)				Clock(ns)
			R	A	C	3D	Clock(ns)		R	A	C	3D	Clock(ns)		R	A	C	3D	R	A	C	3D	Clock(ns)		R	A	C	3D	Clock(ns)		R	A	C	3D	Clock(ns)		R	A	C	3D	Clock(ns)		R	A	C	3D	Clock(ns)
			RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS	RMS	RMS	RMS	RMS	STD	RMS
-	-	Total	0.0102	0.0161	0.0112	0.0221	0.0470	0.3390	0.1552	0.0549	0.0354	0.1684	0.4480	2.2770	0.0241	0.0487	0.0405	0.0678	0.0371	0.0554	0.0570	0.0877	0.1760	1.0030	0.0178	0.0206	0.0194	0.0334	0.1260	0.1390	0.2244	4.4897	0.5095	4.5241	16.8270	31.5630	0.0750	0.0974	0.0892	0.1519	16.2090	18.6930	0.0520	0.0777	0.0479	0.1050	16.2340	20.7240	jxr2328.tar.gz
2024/08/24	237	jxr23286	0.0092	0.0168	0.0113	0.0223	0.0310	0.3370	0.1497	0.0618	0.0370	0.1661	0.4190	2.2370	0.0195	0.0325	0.0283	0.0473	0.0571	0.0412	0.0475	0.0849	0.1810	0.9830	0.0167	0.0210	0.0192	0.0330	0.0550	0.1450	0.2207	2.7732	0.5320	2.8324	1.3010	31.3170	0.0651	0.0658	0.0831	0.1244	1.3320	12.8180	0.0550	0.0806	0.0490	0.1092	1.3470	16.4420	jxr23286.tar.gz
2024/08/23	236	jxr23285	0.0100	0.0155	0.0114	0.0217	0.0340	0.3230	0.1462	0.0493	0.0401	0.1594	0.4290	2.1190	0.0172	0.0425	0.0320	0.0560	0.0370	0.0469	0.0489	0.0772	0.1290	1.0480	0.0168	0.0191	0.0195	0.0321	0.0510	0.1520	0.2017	4.6564	0.5498	4.6931	1.5280	11.2810	0.0655	0.0874	0.0912	0.1423	1.5520	29.3400	0.0427	0.0938	0.0617	0.1201	1.5720	25.6150	jxr23285.tar.gz
2024/08/22	235	jxr23284	0.0097	0.0120	0.0098	0.0182	0.0320	0.3400	0.1470	0.0439	0.0336	0.1570	0.4160	2.4720	0.0241	0.0434	0.0382	0.0626	0.0269	0.0520	0.0549	0.0803	0.1000	1.0680	0.0162	0.0152	0.0152	0.0269	0.0530	0.1270	0.2194	2.3622	0.5335	2.4316	1.5710	44.4130	0.0561	0.0864	0.0730	0.1263	1.5850	25.8070	0.0559	0.0654	0.0462	0.0976	1.6450	29.6310	jxr23284.tar.gz
2024/08/21	234	jxr23283	0.0107	0.0129	0.0116	0.0204	0.0350	0.3420	0.1515	0.0530	0.0329	0.1638	0.4130	2.4330	0.0282	0.0482	0.0412	0.0694	0.0305	0.0627	0.0699	0.0988	0.1130	0.9630	0.0187	0.0174	0.0198	0.0323	0.0600	0.1320	0.2246	3.3057	0.5732	3.3625	1.6330	36.4980	0.0644	0.0916	0.0757	0.1351	1.6440	17.7440	0.0718	0.0653	0.0424	0.1059	1.6720	21.6360	jxr23283.tar.gz
2024/08/20	233	jxr23282	0.0101	0.0171	0.0112	0.0228	0.0300	0.3500	0.1498	0.0441	0.0351	0.1601	0.4140	2.2200	0.0286	0.0635	0.0541	0.0882	0.0337	0.0651	0.0672	0.0995	0.1550	1.0090	0.0180	0.0226	0.0175	0.0338	0.0590	0.1500	0.2078	7.2327	0.4676	7.2508	1.8330	30.9640	0.0771	0.1199	0.0780	0.1625	1.9520	12.2560	0.0509	0.0920	0.0518	0.1172	2.4290	15.8910	jxr23282.tar.gz
2024/08/19	232	jxr23281	0.0110	0.0192	0.0120	0.0252	0.0320	0.3450	0.1715	0.0698	0.0334	0.1881	0.4540	2.2500	0.0291	0.0604	0.0460	0.0813	0.0313	0.0636	0.0541	0.0892	0.1450	1.0150	0.0190	0.0246	0.0201	0.0370	0.0600	0.1150	0.2466	3.7212	0.4238	3.7534	1.6340	29.9880	0.1073	0.1306	0.1234	0.2093	1.7170	10.6800	0.0462	0.0805	0.0463	0.1037	1.7360	14.6740	jxr23281.tar.gz
2024/08/18	231	jxr23280	0.0106	0.0180	0.0110	0.0236	0.0320	0.3330	0.1688	0.0575	0.0351	0.1817	0.4450	2.1820	0.0203	0.0435	0.0381	0.0613	0.0360	0.0527	0.0540	0.0836	0.1430	0.9270	0.0193	0.0227	0.0233	0.0378	0.0580	0.1510	0.2645	5.2951	0.4195	5.3183	1.4870	28.2330	0.0786	0.0857	0.0909	0.1476	1.6160	12.8370	0.0322	0.0595	0.0332	0.0753	1.6490	16.4100	jxr23280.tar.gz
